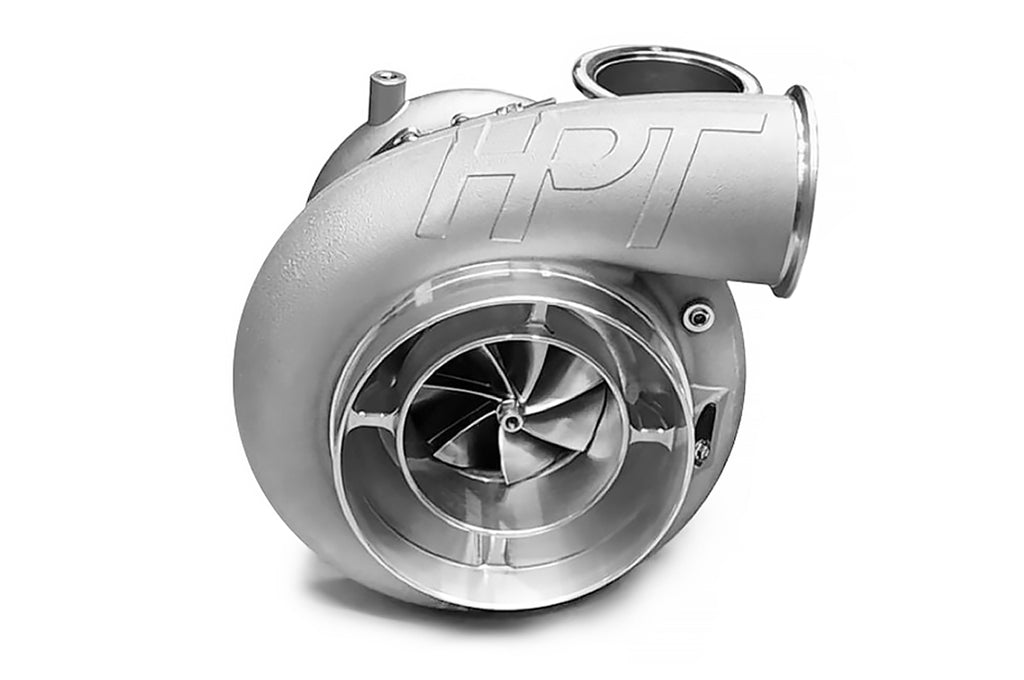

HPT F5 102108 Turbo (2400 HP)
The HPT F5 102108 turbocharger can support up to 2400 horsepower. These turbos feature an air-cooled ceramic ball bearing system and aluminum center section with integrated backing plate to ensure durability. HPT QST delivers some of the quickest spool-up data ever seen!
All options include a stainless steel turbine housing, F5 compressor cover with ported shroud and speed sensor provision. Also includes the pre-installed Turbosmart oil feed filter with 4AN connection.
Vehicle Fitment:
Universal Application
Features:
• F5 Compressor Cover with Ported Shroud
• Air Cooled Ceramic Ball Bearing
• 2618 Aluminum Compressor Wheel
• 713C Inconel Turbine Wheel
• Speed Sensor Provision
• Stainless Steel Turbine Housing
• Pre-Installed Turbosmart Oil Feed Filter
• Aluminum Bearing Housing with Integrated Backing Plate
• QST Quick Spool Technology
| Part Numberxxxxxxx | MAX HP |
CW Inducer (mm) |
CW Exducer (mm) |
CC Inlet |
CC Outlet/ Discharge |
TW Inducer (mm) |
TW Exducer (mm) |
TH Inlet |
TH Outlet/ Discharge |
TH A/R |
| F5-102108-112T6S | 2400 | 102.00 | 143.00 | 7" | 3" | 114.81 | 108.05 | T6 | VB 5.00" (113mm) |
1.12 |
| F5-102108-124T6S | 2400 | 102.00 | 143.00 | 7" | 3" | 114.81 | 108.05 | T6 | VB 5.00" (113mm) |
1.24 |
| F5-102108-140T6S | 2400 | 102.00 | 143.00 | 7" | 3" | 114.81 | 108.05 | T6 | VB 5.00" (113mm) |
1.40 |
| F5-102108-115VS | 2400 | 102.00 | 143.00 | 7" | 3" | 114.81 | 108.05 | VB 3.50" (80mm) |
VB 5.00" (113mm) |
1.15 |
| F5-102108-128VS | 2400 | 102.00 | 143.00 | 7" | 3" | 114.81 | 108.05 | VB 3.50" (80mm) |
VB 5.00" (113mm) |
1.28 |
CW = Compressor Wheel
CC = Compressor Cover
TW = Turbine Wheel
TH = Turbine Housing
VB = V-Band
F5 Oil Drain Fitting (12ORB):
F5 housings are tapped for 12 ORB and have 2 1/16" bolt hole spacing.
HPT offers this special 12 ORB Inverted Oil Drain Fitting that threads right into the bearing housing.
HPT recommends using a 12AN drain line for F5 turbos.
F5 Oil Feed Line (-4AN):
The F5 series come with a Turbosmart filter installed with a -4AN male inlet.
Turbine Housing V-Band Flanges:
• V-Band Outlet/Discharge Flanges
• V-Band Inlet Flanges
Turbine Housing Clamps:
• HPT Turbine Housing V-Band Inlet and Discharge Clamps
Images:
Photos are for representation only. Each turbo will vary based on specs and housing options.
 |
