HPT Turbine Housing V-Band Discharge Flanges (Stainless)
HPT turbine housing v-band discharge (outlet) stainless steel flanges. Available to fit all HPT turbos. Please confirm all specs in the table below before purchase. Some flanges taper out so you can run larger tubing for your downpipe.
Vehicle Fitment:
For HPT V-Band Turbine Housing Outlets
Material:
• Stainless Steel
Also Available:
• HPT V-Band Clamps
Pictured:

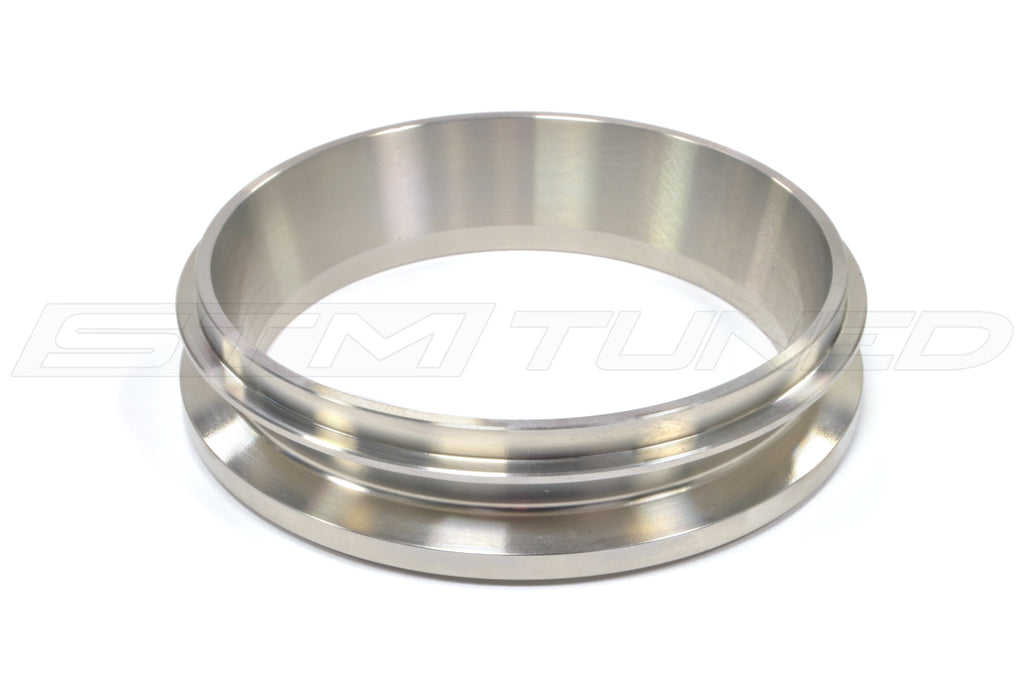

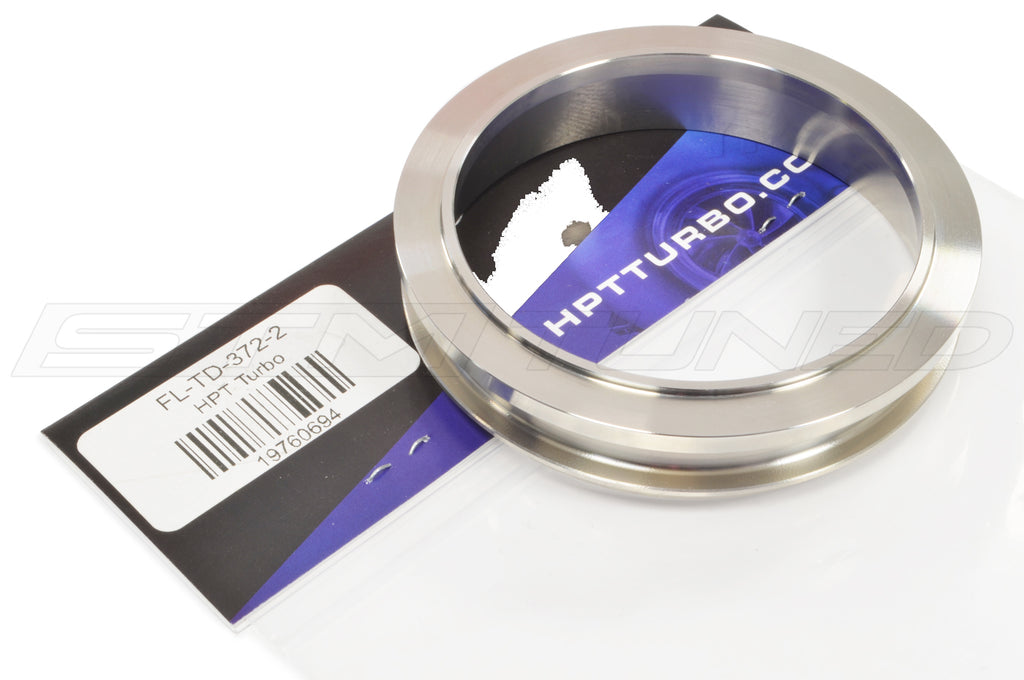

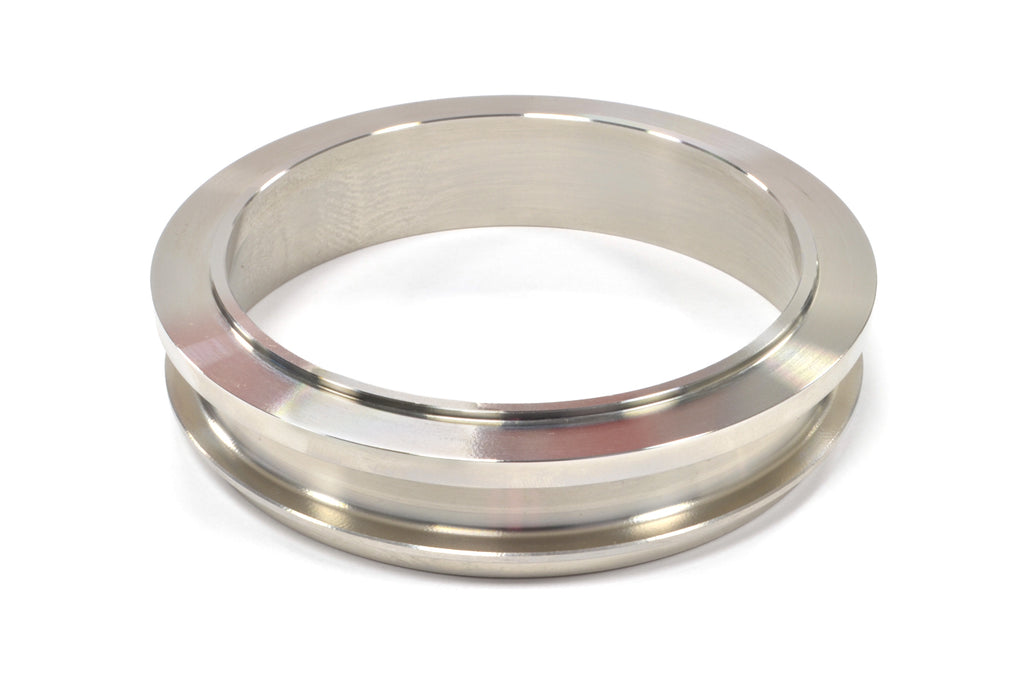

The FL-TD-372-2 flange is pictured in detail for reference.
Notes:
F1 and F1.5 Series are in redevelopment stages. We will update when we know more.
| Part Number: | HPT Housing | Turbine Housing Side: | for Pipe Size: |
| FL-TD-372 | F2 | 3.00" | 3.00" |
| FL-TD-372-2 | F2 | 3.00" | 3.50" |
| FL-TD-372-3 | F2.5 | 3.00" | 3.00" |
| FL-TD-403 | F3 (with T4 Inlet) | 3.50" | 3.50" |
| FL-TD-403-2 | F3 (with T4 Inlet) | 3.50" | 4.00" |
| FL-TD-438 | F3 (with V-Band Inlet) | 3.50" | 3.50" |
| FL-TD-438-2 | F3 (with V-Band Inlet) | 3.50" | 4.00" |
| FL-TD-526 | F5 | 5.00" | 5.00" |
 |
