HPT F3 7675 Turbo (1350 HP)
The HPT F3 7675 turbocharger is equipped with HPT's Quick Spool Technology, providing high efficiency with minimal lag. Capable of supporting up to 1350 horsepower.
Alongside the bearing system, HPT turbochargers boast superior aerodynamics with lightweight rotating groups. This combination of low-resistance bearings and optimized airflow allows for a larger turbo size without sacrificing transient response.
Vehicle Fitment:
Universal Application
Features:
• F3 Compressor Cover w/ Ported Shroud
• 2618 Aluminum Compressor Wheel
• 713C Inconel Turbine Wheel
• Cast Iron Bearing Housing with Integrated Back Plate
• Ceramic Dual Ball Bearing System
• 310 Investment Cast Stainless Steel Turbine Housing
| Part Numberxxxxxxx | MAX HP |
CW Inducer (mm) |
CW Exducer (mm) |
CC Inlet |
CC Outlet/ Discharge |
TW Inducer (mm) |
TW Exducer (mm) |
TH Inlet |
TH Outlet/ Discharge |
TH A/R |
| F3-7675-96T4S | 1350 | 76.80 | 104.24 | 4" | 3" | 87.30 | 75.60 | T4 | VB 3.50" | 0.96 |
| F3-7675-124T4S | 1350 | 76.80 | 104.24 | 4" | 3" | 87.30 | 75.60 | T4 | VB 3.50" | 1.24 |
| F3-7675-128T4DS | 1350 | 76.80 | 104.24 | 4" | 3" | 87.30 | 75.60 | T4 Divided | VB 3.50" | 1.28 |
| F3-7675-96VS | 1350 | 76.80 | 104.24 | 4" | 3" | 87.30 | 75.60 | VB 3.00" | VB 3.50" | 0.96 |
| F3-7675-96VS-RR | 1350 | 76.80 | 104.24 | 4" | 3" | 87.30 | 75.60 | VB 3.00" | VB 3.50" | 0.96 |
| F3-7675-124VS | 1350 | 76.80 | 104.24 | 4" | 3" | 87.30 | 75.60 | VB 3.00" | VB 3.50" | 1.24 |
CW = Compressor Wheel
CC = Compressor Cover
TW = Turbine Wheel
TH = Turbine Housing
VB = V-Band
-RR = Matching Reverse Rotation version
F3 Oil Drain Fittings (10ORB):
F3 housings are tapped for 10 ORB and have 2" bolt hole spacing.
HPT offers these special 10 ORB Inverted Oil Drain Fittings that thread right into the bearing housing.
F3 Oil Feed Line Fitting (-4AN):
All F3 turbos are internally restricted with a built in -4AN male oil inlet feed fitting that should not be removed.
Turbine Housing V-Band Flanges:
• V-Band Outlet/Discharge Flanges
• V-Band Inlet Flanges
Turbine Housing Clamps:
• HPT Turbine Housing V-Band Inlet and Discharge Clamps

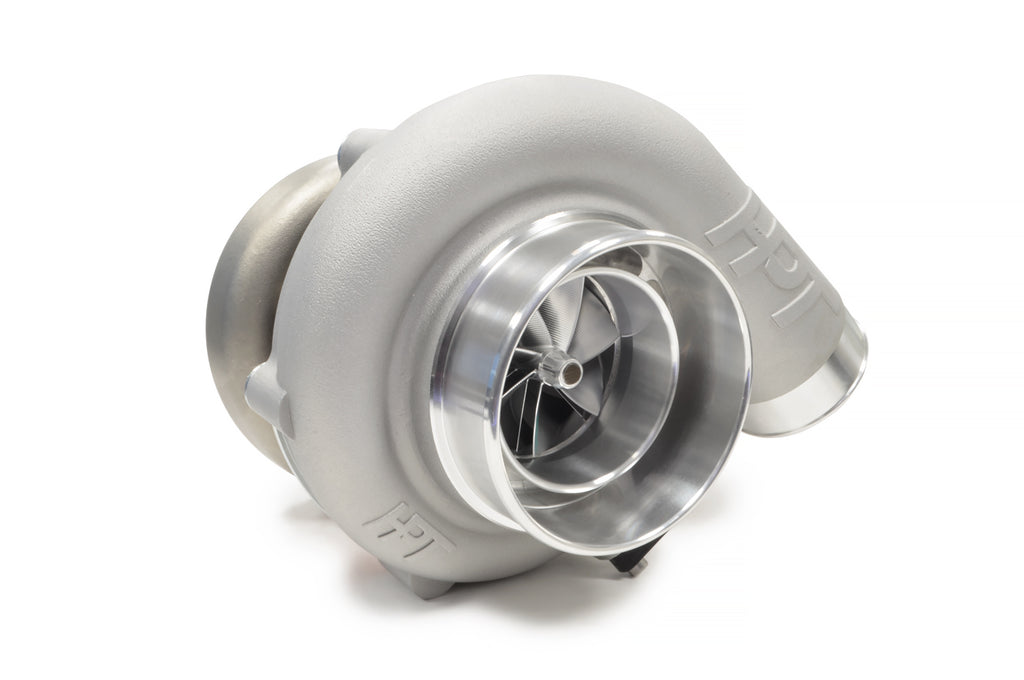

Images:
Photos are for representation only. Each turbo will vary based on specs and housing options.
 |
