HPT Buick F2 6262 Turbo (800 HP)

The HPT bolt-on Buick F2 6262 turbocharger can support up to 800 horsepower. Features a ceramic ball bearing system, ported-shroud compressor cover and cast stainless steel 3-bolt Buick exhaust housing. HPT's QST delivers some of the quickest spool-up data ever seen!

Vehicle Fitment:
1986-1987 Grand National, T-Type, Turbo Trans-Am
Factory style 3-bolt manifold

Features:
• F2 Compressor Cover with Ported Shroud
• 2618 Aluminum Compressor Wheel
• 713C Inconel Turbine Wheel
• Cast Iron Bearing Housing with Integrated Back Plate
• Ceramic Dual Ball Bearing System
• Investment Cast Stainless Steel 3-Bolt Buick Exhaust Housing
• Wastegate Provision (Fits popular 44mm-46mm Wastegates)
• Wastegate Block-Off Plate & V-Band Clamp Included
• QST Quick Spool Technology

CW = Compressor Wheel
CC = Compressor Cover
TW = Turbine Wheel
TH = Turbine Housing

Suggested External Wastegate:
HPT suggests the Turbosmart WG45 GenV HyperGate Lite 45mm Wastegate with 14 PSI Spring with their Buick turbochargers.

Install Accessories (sold separately):
• HPT Buick 3-Bolt Copper Gasket & Studs
• HPT/FTS Buick Turbo Oil Drain and Feed Line Kit

F2 Buick Oil Drain Fitting (8ORB):
The new HPT F2 Buick housings are tapped for 8 ORB and have 2" bolt hole spacing.
HPT offers this special 8 ORB Inverted Oil Drain Fitting that threads right into the bearing housing.
HPT recommends using a 8AN drain line for the F2 Buick turbos.
* Note, some older HPT F2's have 1.5" bolt spacing.

F2 Buick Oil Feed Line (-4AN):
The HPT F2 Buick turbos are internally restricted with a built in -4AN male oil inlet feed fitting that should not be removed.

Images:

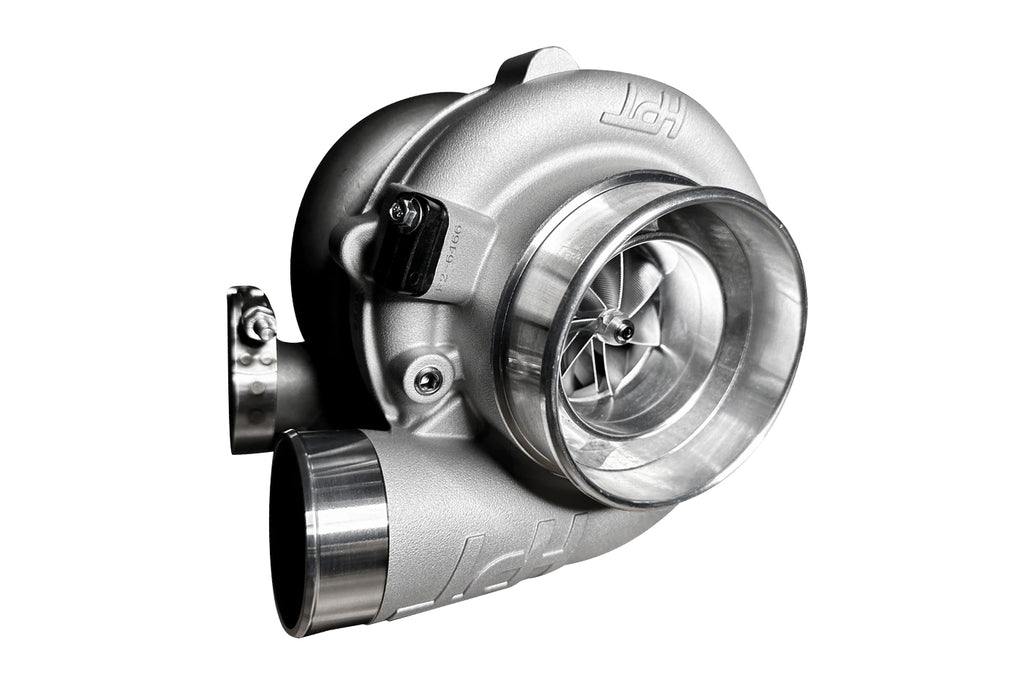

Photos are for representation only. Each turbo will vary based on specs and housing options.
