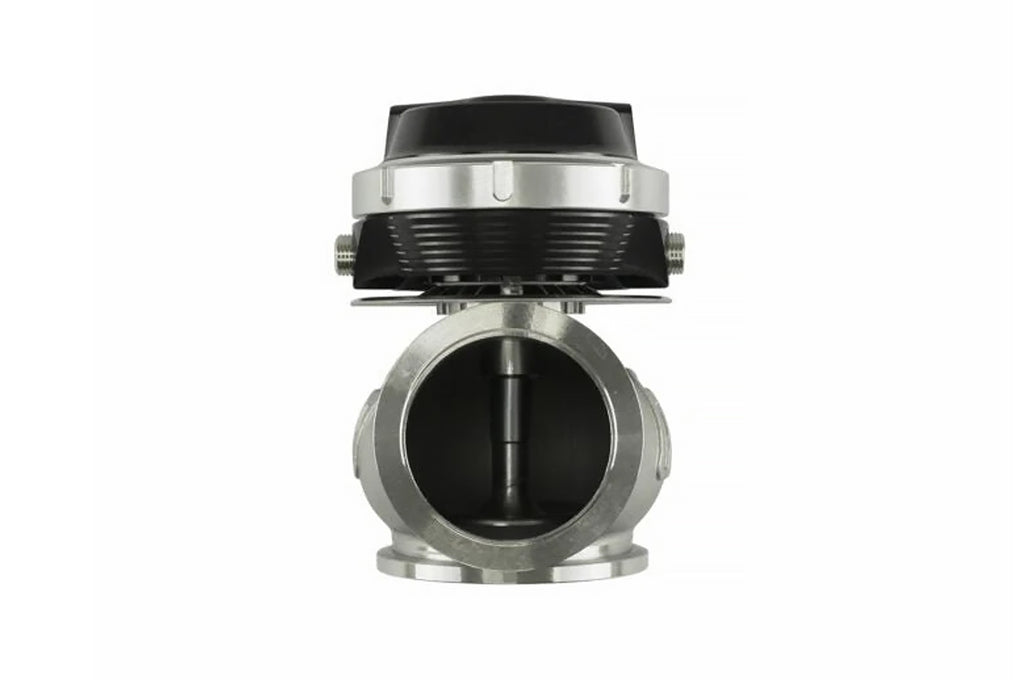

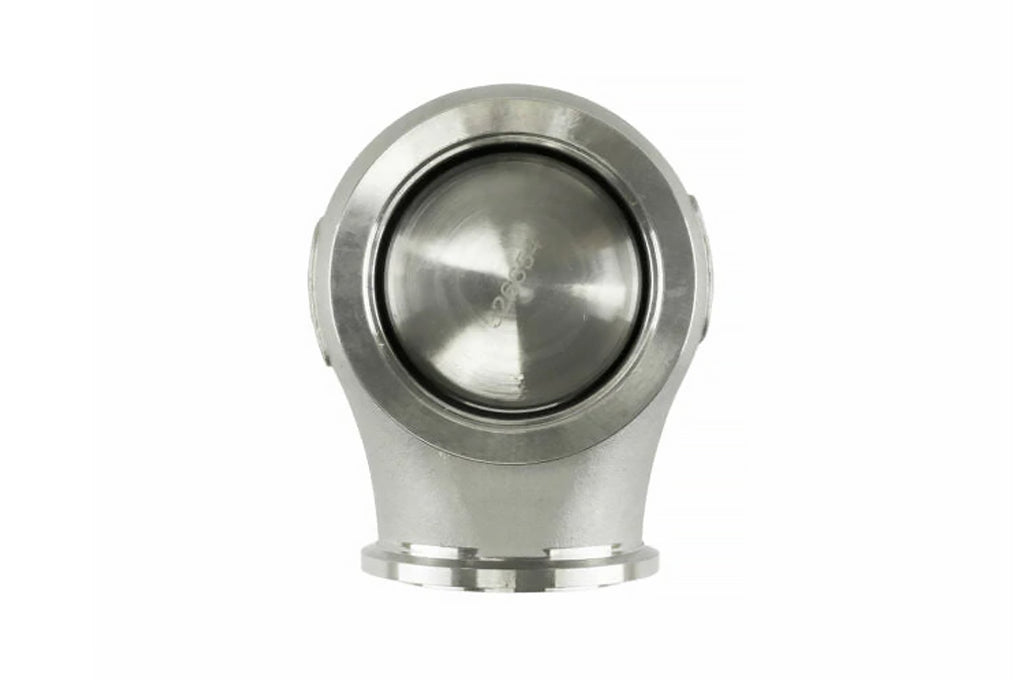

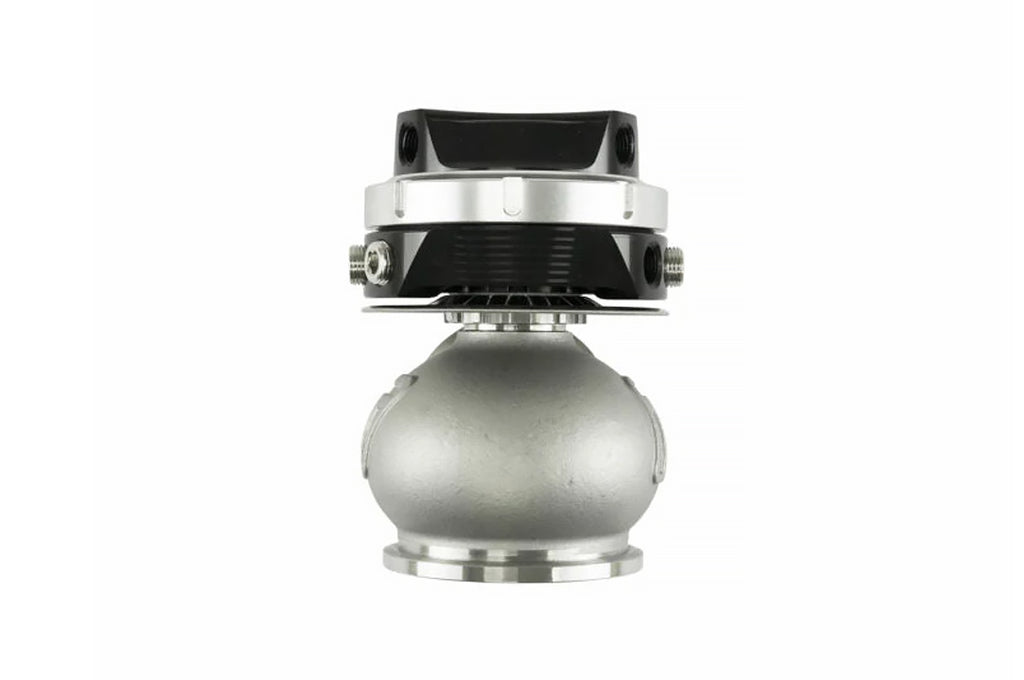

Turbosmart WG45 GenV HyperGate 45mm Wastegate (Lite)

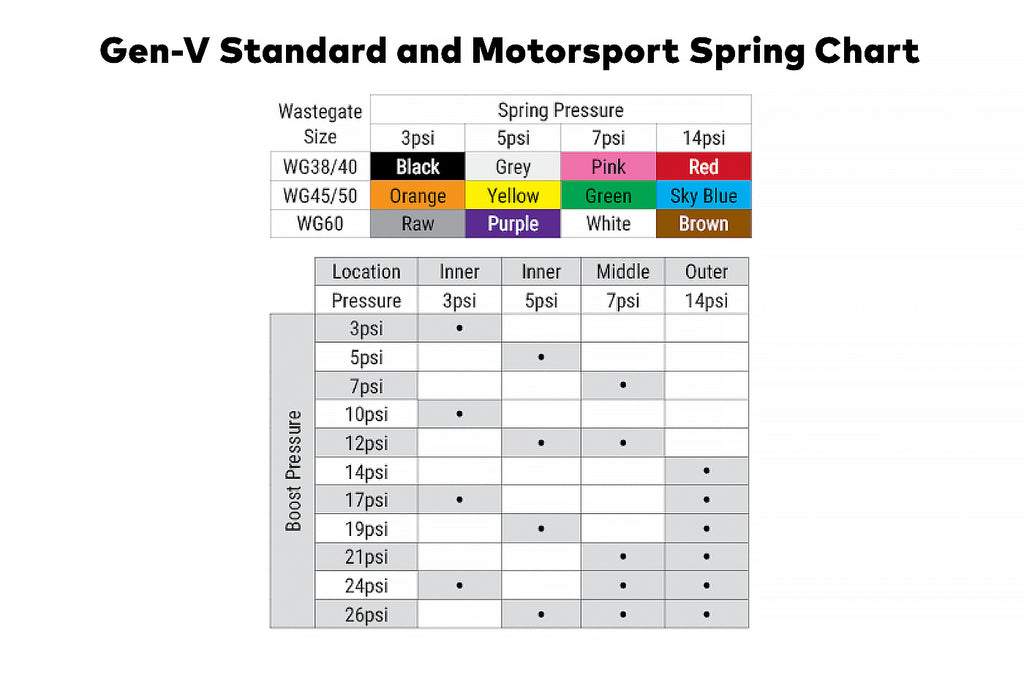

The Turbosmart GenV WG45 HyperGate Lite 45mm external wastegates are available in combinations with the 7psi or 14psi spring in black with silver ring or sleeper (full black).
HyperGate Lite vs Standard:
This HyperGate Lite features the same high flowing 45mm body as the Turbosmart Standard HyperGate but with a reduction in overall size for compact spaces.

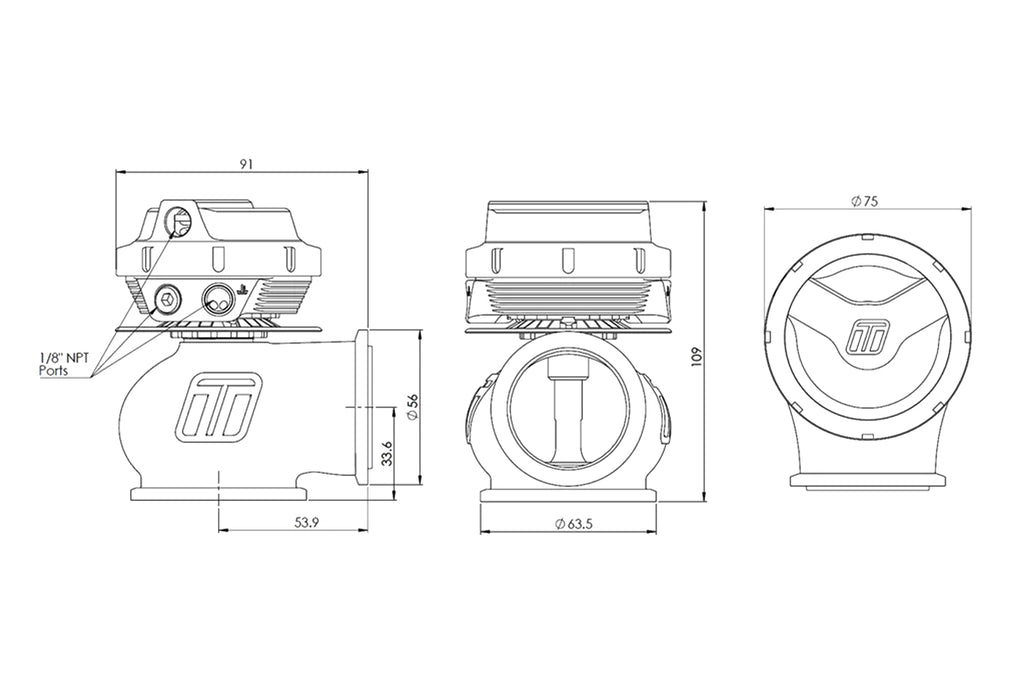

• 7mm shorter in height
• 9mm slimmer in width
Purchase Includes:
• GenV Wastegate Unit
• All Spring Included in Box
• Wastegate Pre-fitted as per description
• GenV SS316 Valve Seat
• Inlet & Outlet Weld Flanges
• Inlet & Outlet V-Bands
• Locking Collar Tool
• 4 x 1/8 NPT plugs
• 2 x 1/8 NPT Hose Tail Fittings
• Turbosmart Decal
Resources:
• Installation Guide
• Data Sheet
| Part Number: | Details: | Spring: |
| TS-0553-1615 | Sleeper (Blacked Out) | 14 PSI |
| TS-0553-1612 | Black (with Silver Ring) | 14 PSI |

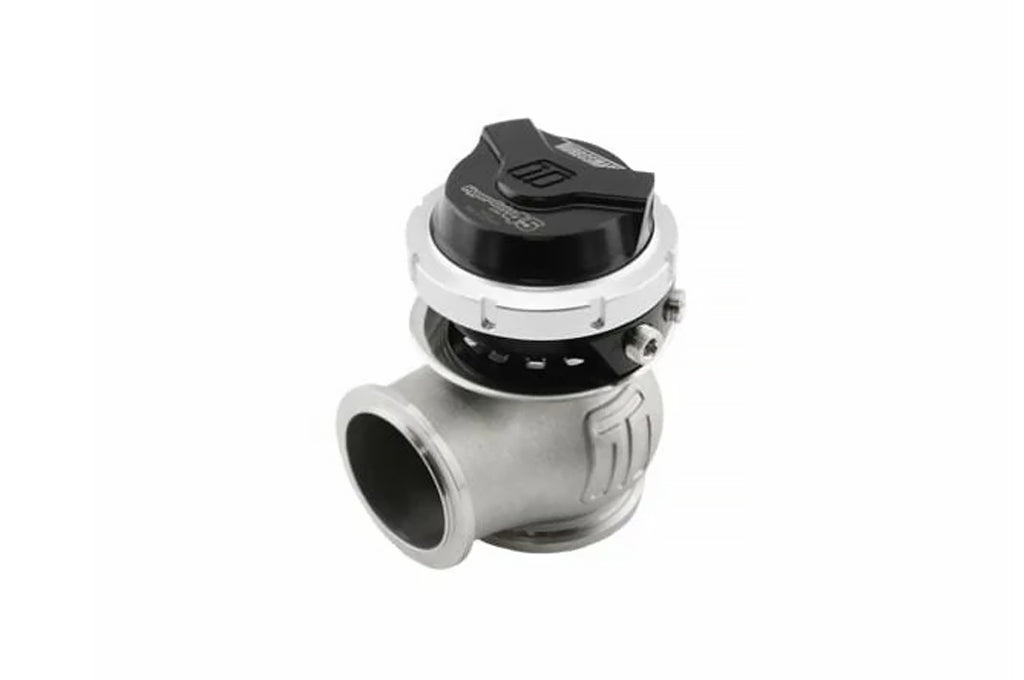

| TS-0553-1602 | Black (with Silver Ring) | 7 PSI |
More from Turbosmart:
The GenV HyperGate45 Lite external wastegate is a cost-effective, high performing 45mm external wastegate with a compact actuator for use in engine bays with limited space. The GenV provides extensive user configuration, world-leading extended thermal performance, fatigue resistance and best-in-class flow performance for optimum control and longevity.
A direct fit upgrade to all Gen4 Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base for easy, 360-degree optional routing of reference hoses, strap-type Vband clamps, optional liquid-cooling provision, 1/8" NPT reference ports and are provided with the full range of available springs.
Features:
• Low Profile (Reduced height & Diameter) Actuator Housing
• Class Leading Thermal Performance
• Class Leading CFD Driven & Bench Validated Flow Performance
• Class Leading Fatigue Resistance
• Optional Liquid Cooling
• Optional Position Sensor Available Seperately
• Rotatable / Clockable Actuator Housing
• 45mm V-Band Fitment
• Nitronic 60 Valve Guide & High Temp 347 SS Body
• 17-7 PH Stainless Steel Springs
• Liquid Actuator Cooling Option
• Strap Type V-band clamps
Race Use Only:
Please check your local laws before purchase.
 |
WARNING: Cancer and Reproductive Harm www.p65warnings.ca.gov |
