STM Evo 7/8/9 Stainless 3in Upper Intercooler Pipe Kit

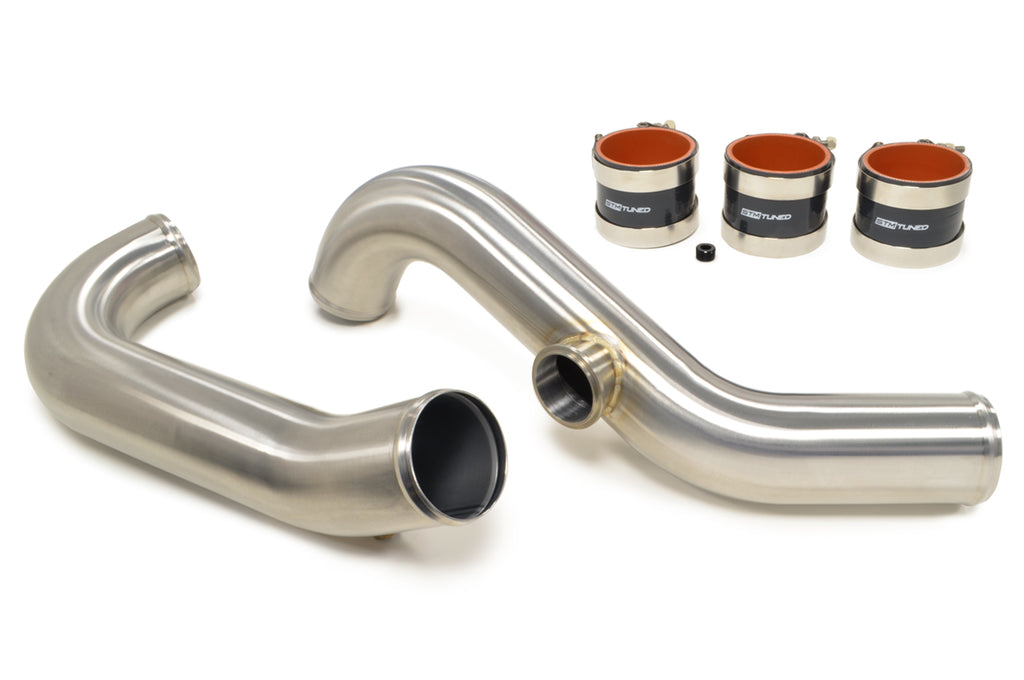

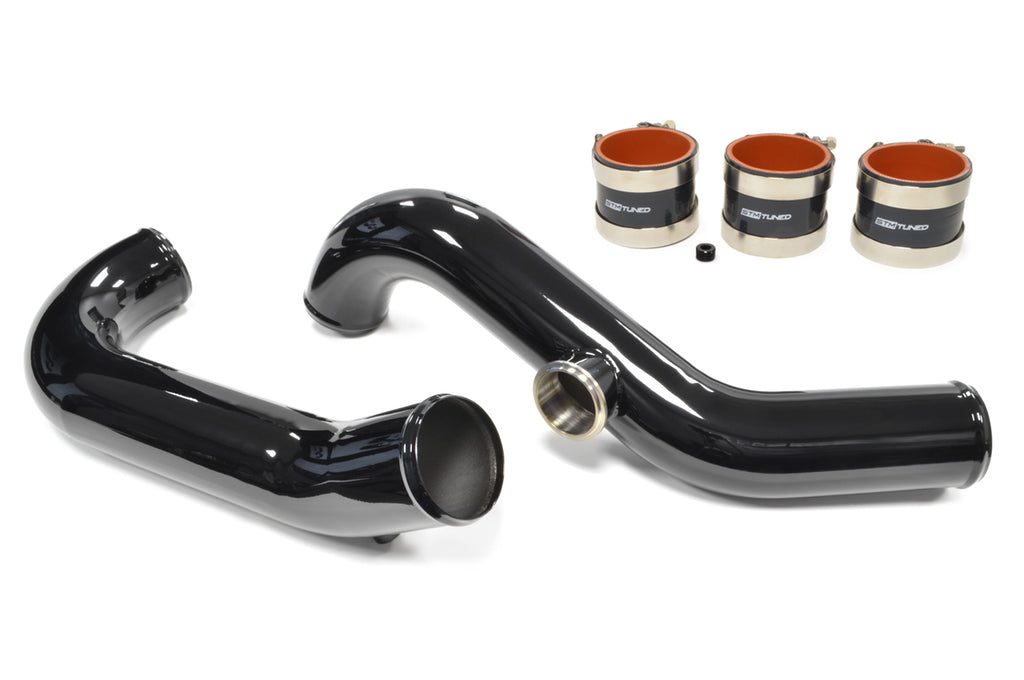

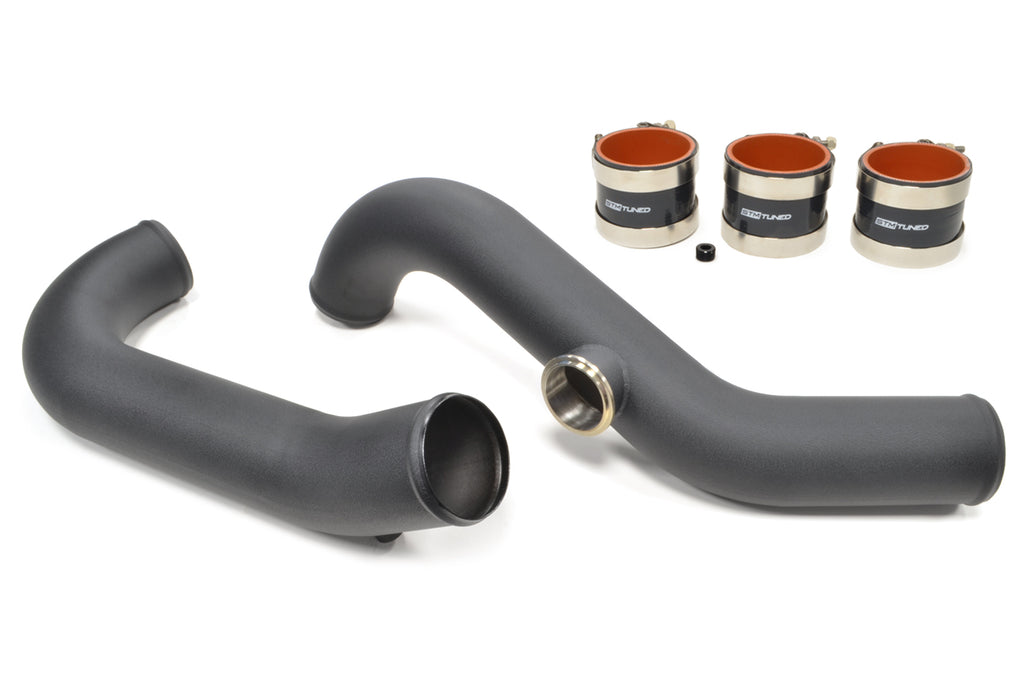

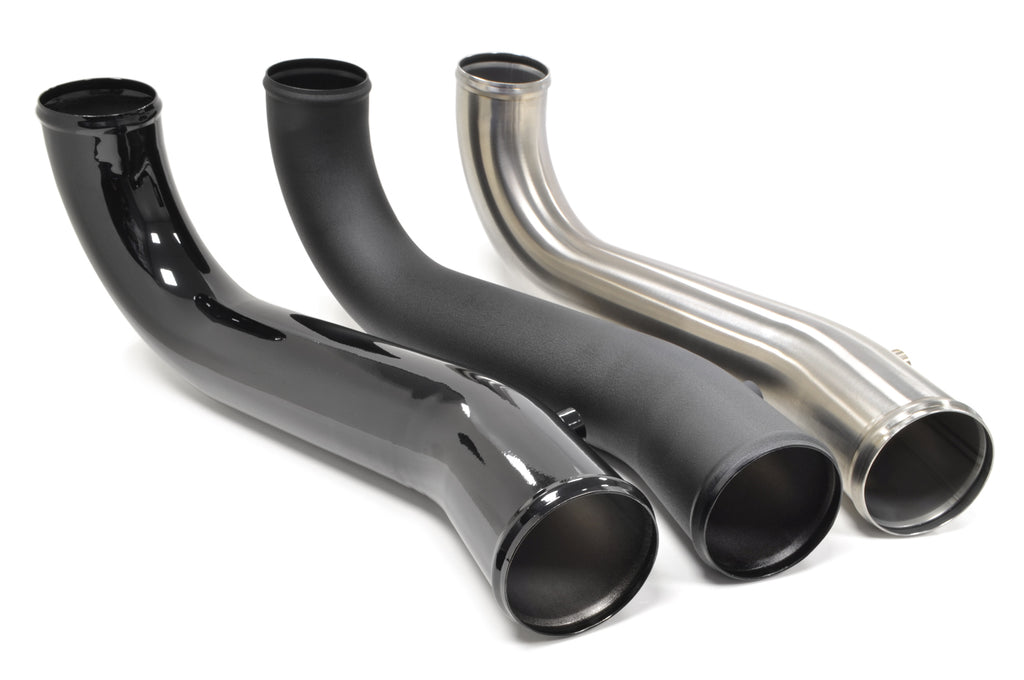

The STM Evo 7/8/9 3" stainless steel upper intercooler pipe kit features durable, large diameter 3" piping for those needing a little extra capacity for boost! Comes flanged for a TiAL Q/QR valve. Available brushed, wrinkle black or gloss black. Includes 3" couplers and stainless t-bolt clamps.

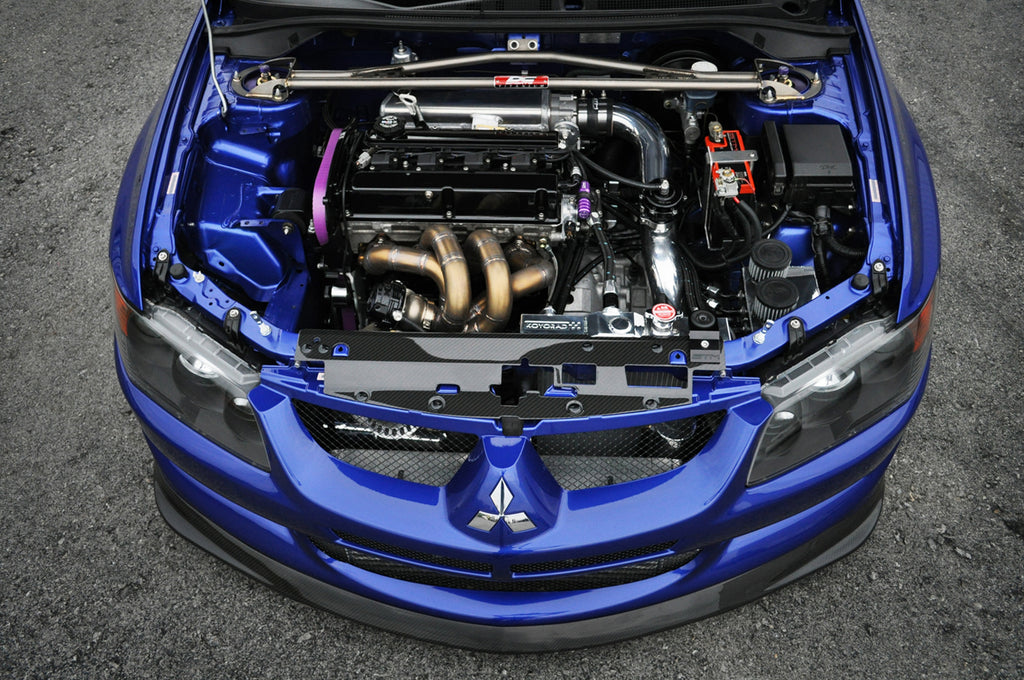

Vehicle Fitment:
CT9A 2001-2006 Mitsubishi Evolution 7/8/9
• Does not fit with ACD
• We have a lot of additional fitment information below, but if you have any questions about your particular setup, just give us a call!

Intake Manifold Fitment:
This kit is designed to work with any intake manifold that utilizes the factory throttle body location, including OEM, Skunk2, the current version of the JMF Sheetmetal, Driven Innovations, AMS F1 and so on. This will not fit with the JMF Billet manifold.

Throttle Body Fitment:
We include 3" couplers and clamps which fits with the S90 70/74 and the Full Blown. Please double check your TB inlet size. See More Couplers & Clamps

Battery Fitment:
These pipes will not clear a factory-sized battery. The STM Evo 7/8/9 Small Battery Kit is recommended for install.

Intercooler Fitment:
These pipes have been test-fitted and are compatible with the STM, OEM and Buschur intercoolers, and they will also work with any aftermarket intercooler utilizing the stock-placement of piping such as ETS. We include 3" clamps and couplers for the inlet/outlet. If you need different sized couplers: See More Couplers & Clamps

Blow Off Valve Fitment:

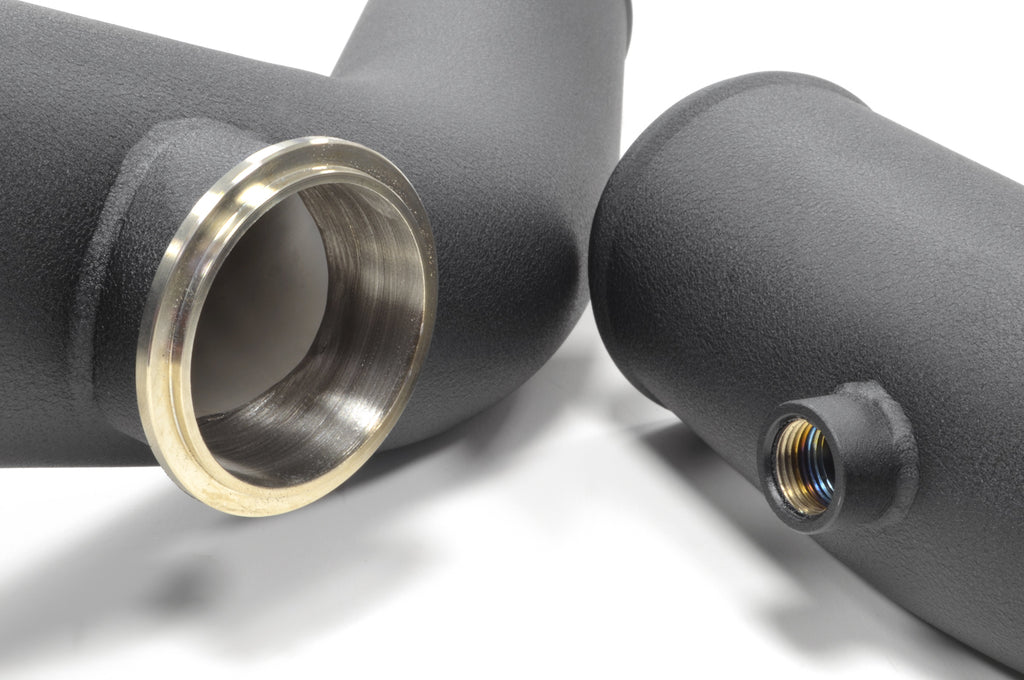

These are flanged for a 50mm TiAL blow off valve. Works with TiAL Q and QR.

AIT Bung & Plug:
Includes a 3/8" AIT bung welded onto the bottom pipe that connects to the intercooler. If you do not need to run an AIT sensor, we also include a black plug to seal it off. PTFE Tape should be used when installing the plug.

Features:
• 3" Mandrel-Bent 304 Stainless Steel Piping
• Hand Fabricated In-House
• Bead-Rolled Pipe Ends
• High-Quality Black Silicone Couplers
• Stainless T-Bolt Clamps
• AIT Bung & Plug
• STM Products are Made in the USA!
• Lifetime Warranty on STM Parts to the original purchaser against manufacturing defects

Weight:
• Total weight with clamps & couplers: 7.3 pounds

Purchase Includes:
(2) STM 3" Stainless Pipes
(3) 3" Straight Couplers (STM-SC-300)
(6) Stainless T-Bolt Clamps (CL-94106-0350)
(1) Vibrant AIT Plug (10492)

More Options:
STM upper intercooler pipes are available in 2.5" and 3" titanium or aluminum with various finish options. See more Intercooler Pipes

Shipping Times: 1-14 Days
Hand crafted in New York, please give our fabricators time to create and finish your pipes!
