STM Rear Alignment Shim for 17+R8 & Huracan

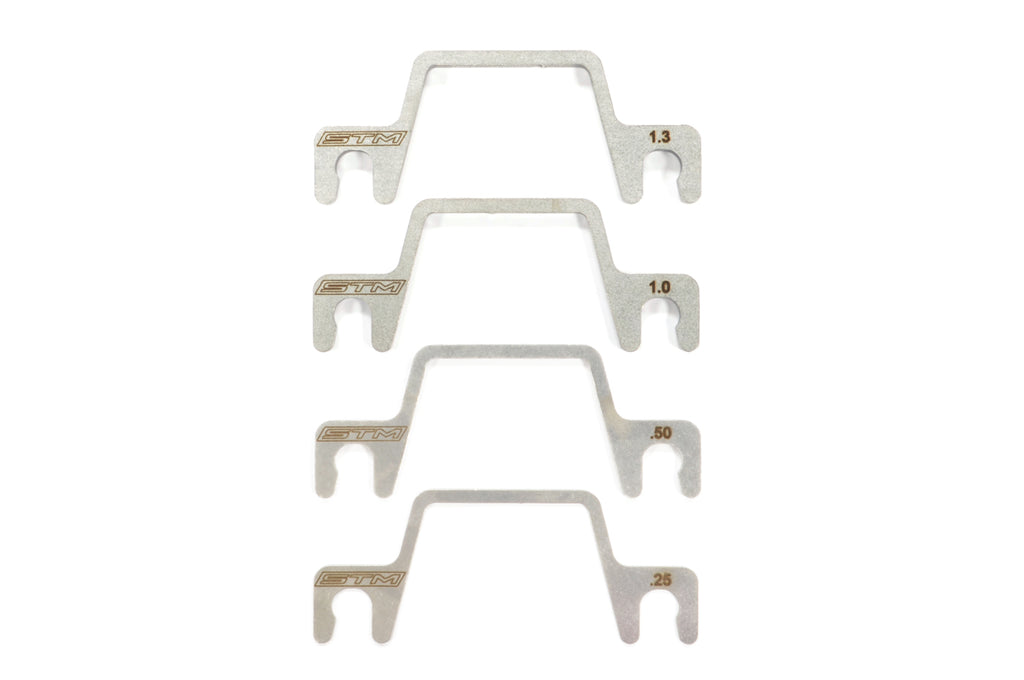

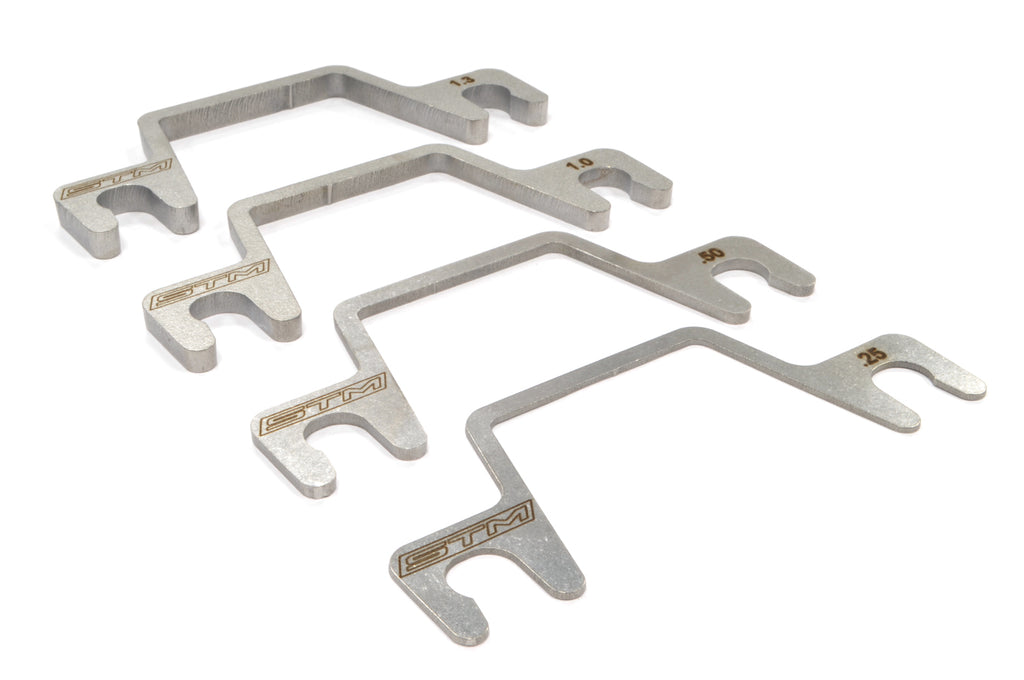

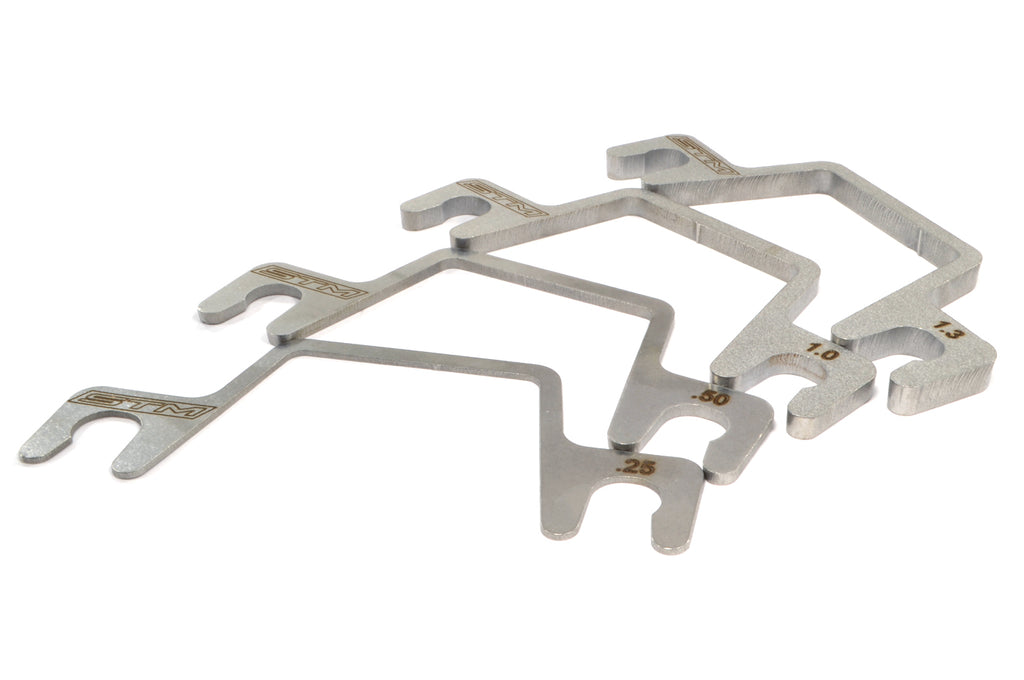

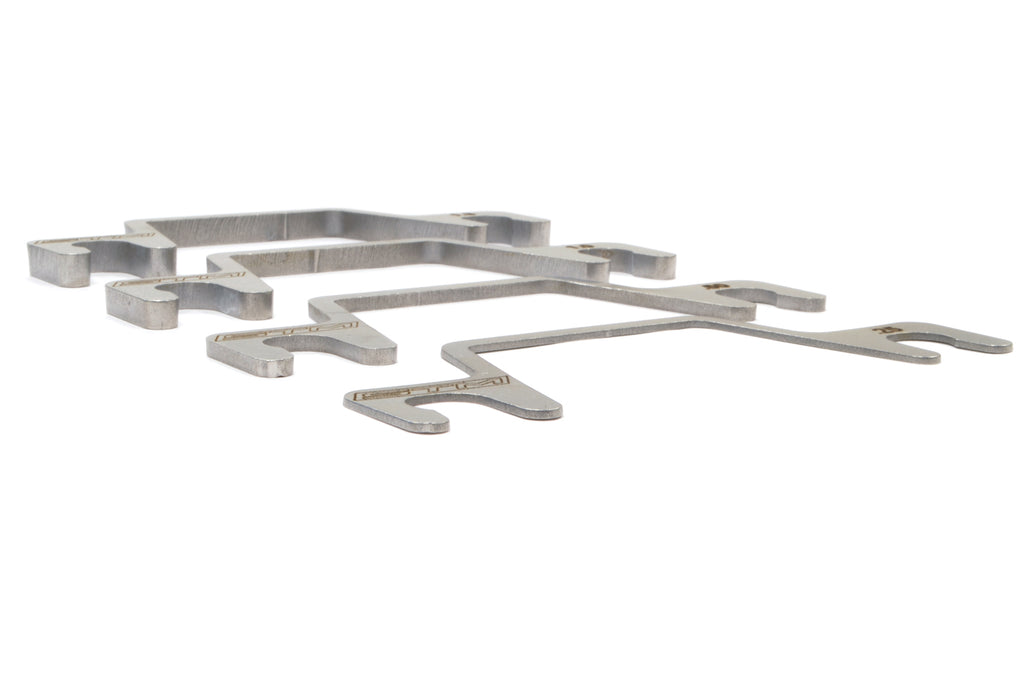

The STM stainless steel alignment shims for 2017+ Audi R8 and Lamborghini Huracan are available in 4 sizes to correct the rear camber and toe. Sold individually as needed, price is for one shim.
These shims are necessary for lowered vehicles. The shim will be installed between the frame and rear control arm bracket. This will space the upper control arm out a bit more to your spec and allow for better tire contact.
Vehicle Fitment:
2017-2023 Audi R8
2015-2024 Lamborghini Huracan
• Vehicle alignment is recommended after install
Features & Specs:
• 304 Stainless Steel
• 4 thicknesses to obtain your desired degree change
• Bolt on install
• Suitable for street and track builds
• STM Products are Made in the USA
• Lifetime Warranty on STM Parts to the original purchaser against manufacturing defects
Purchase Includes:
(1) Shim
| STM Part Number: | Shim Degree Change: | Shim Thickness: |

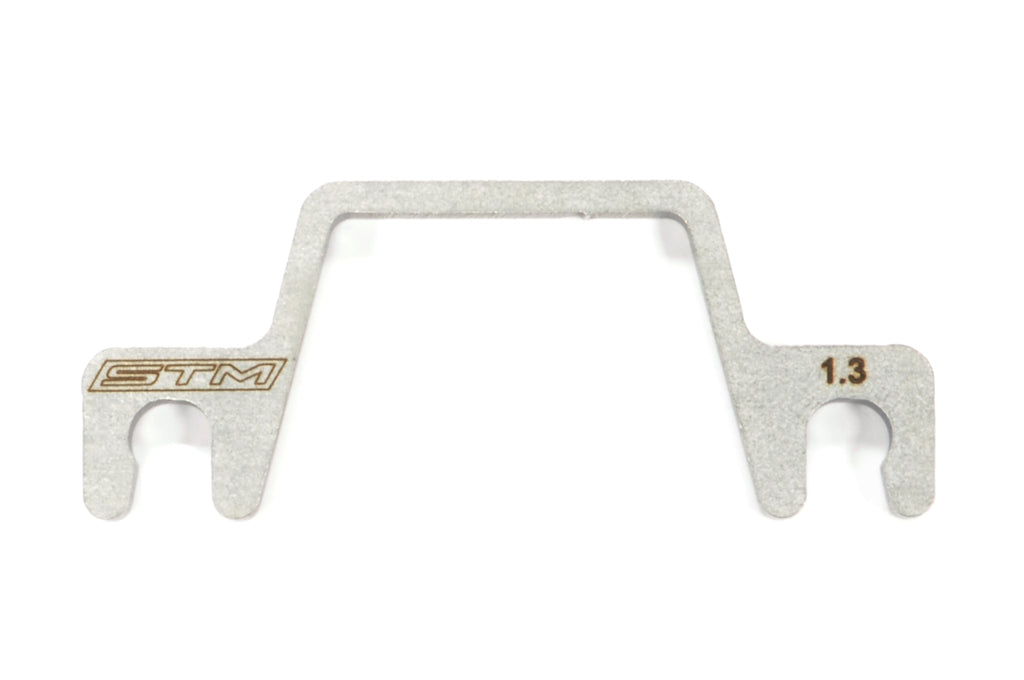

| STM-HUR-SHIM-13 | 1.3° | .250" |

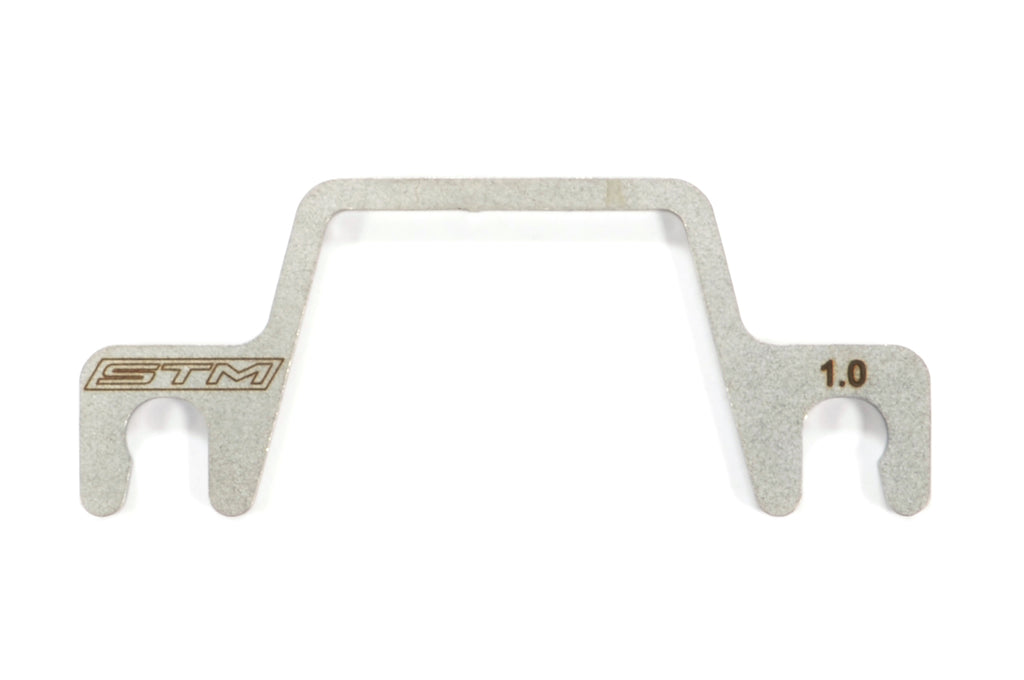

| STM-HUR-SHIM-10 | 1.0° | .191" |

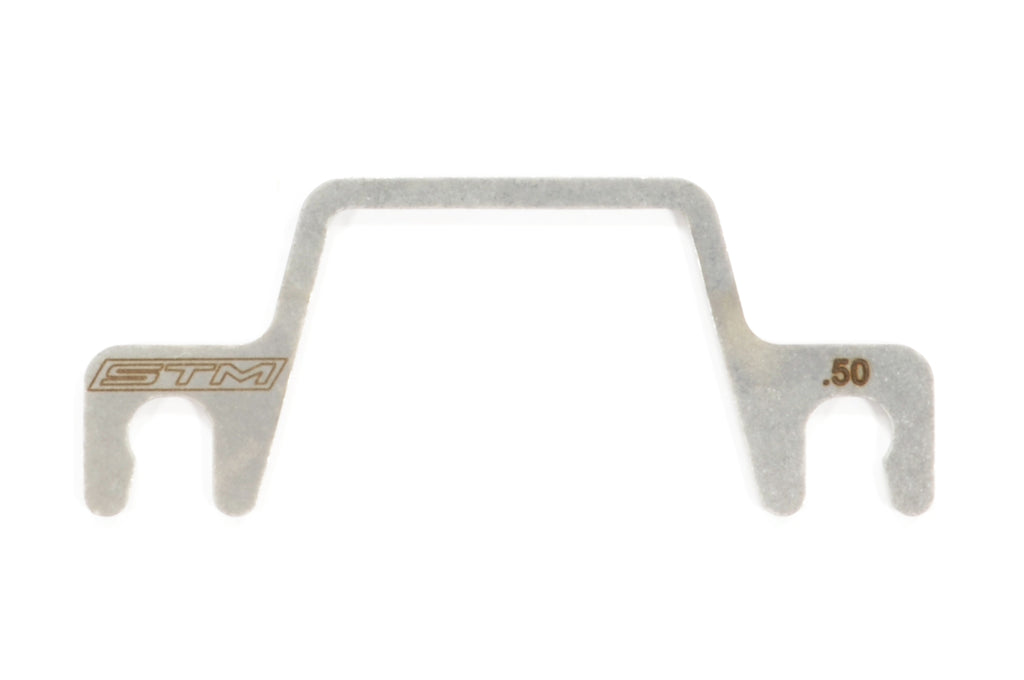

| STM-HUR-SHIM-50 | .50° | .102" |

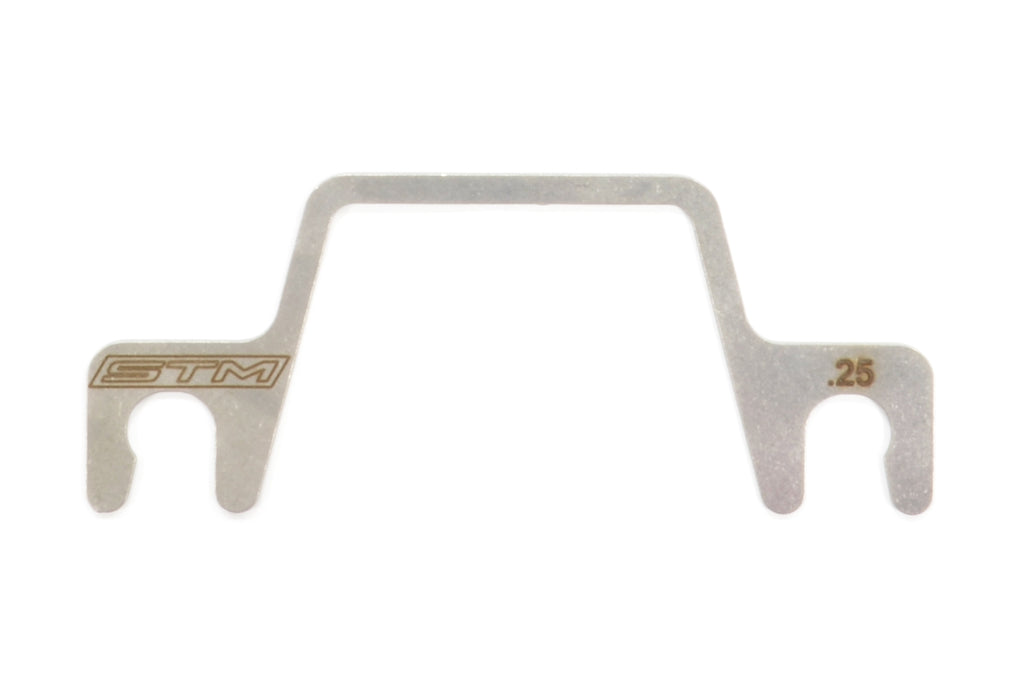

| STM-HUR-SHIM-25 | .25° | .048" |
 |
