PTE Wastegate Install Parts for 66mm PW66
Precision Turbo & Engine replacement parts for the PW66 66mm PTE wastegates. Inlet/outlet v-band weld flanges, clamps, valve seat, diaphragm, plugs, adjusters and o-rings. All parts are sold individually.
| Part Number: | Description: | WG Fitment: |

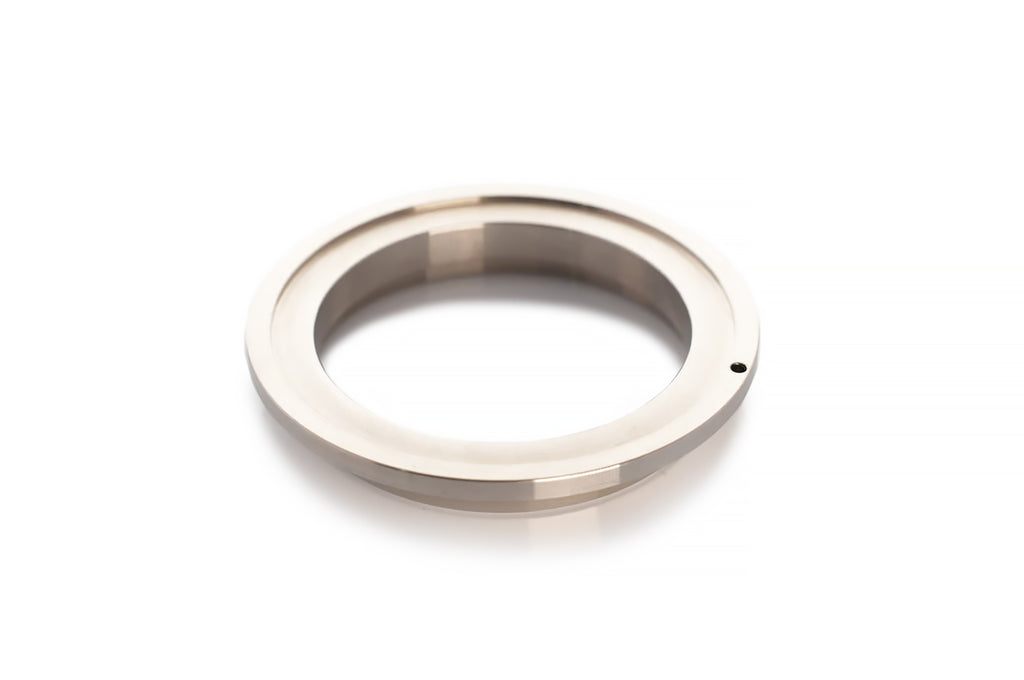

| PBO085-3104 | Inlet Weld Flange (Stainless Steel) | All PW66 |

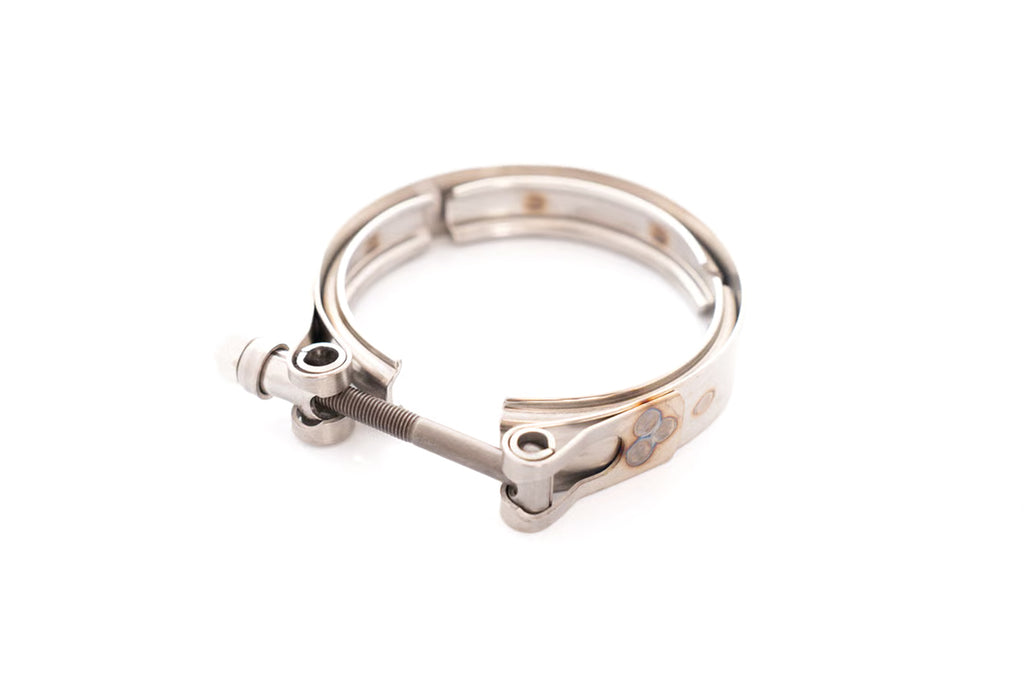

| PTP071-1028 | Inlet Clamp | All PW66 |

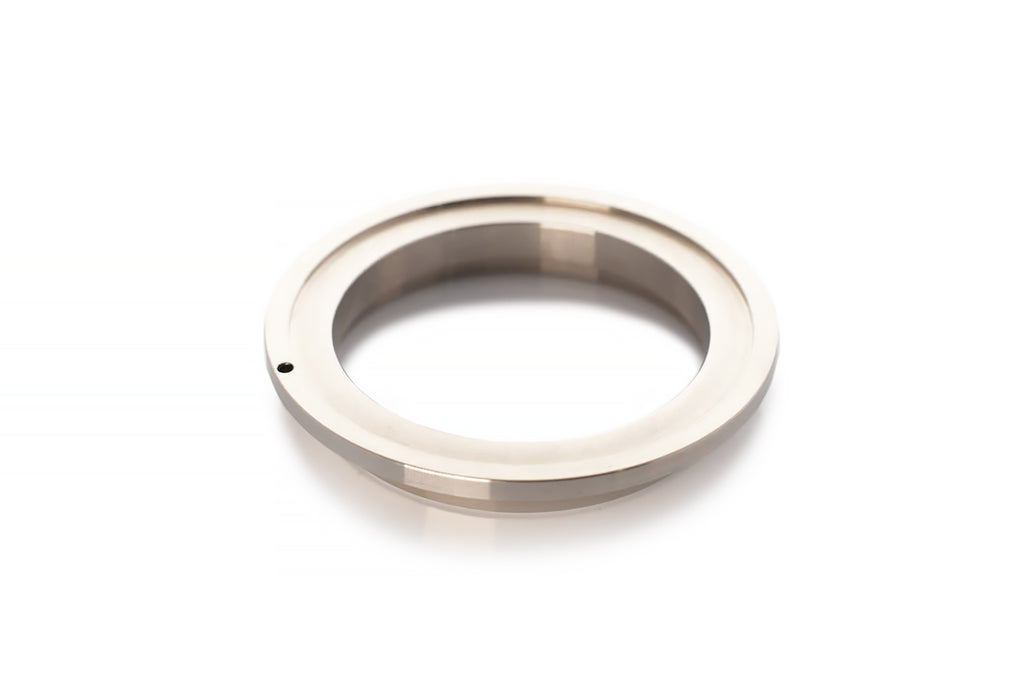

| PBO085-3108 | Outlet Flange (Stainless Steel) | All PW66 |

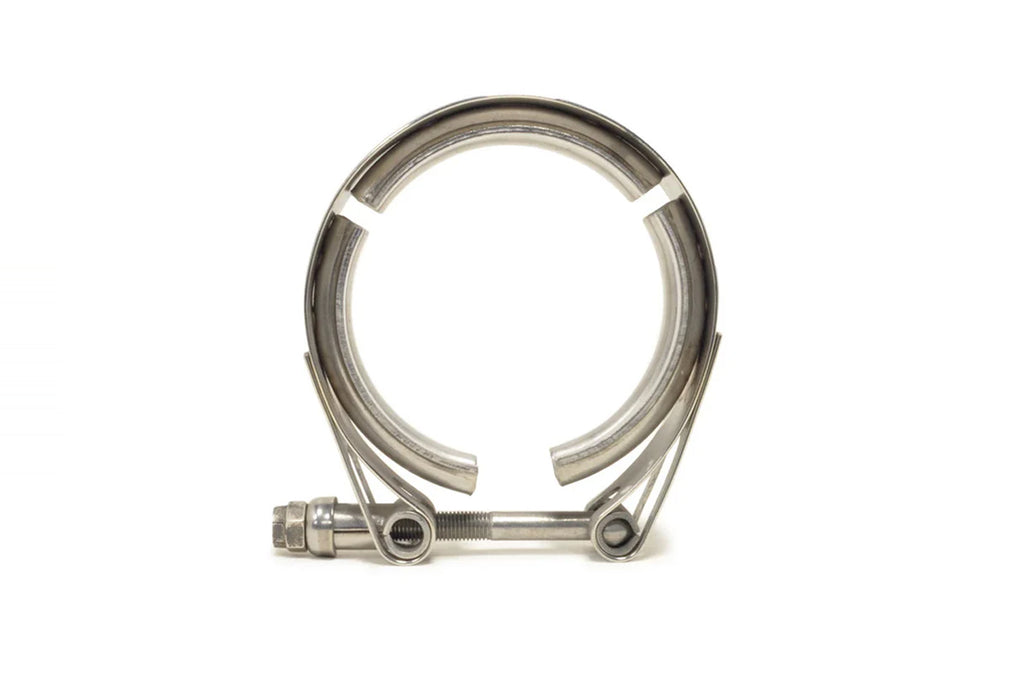

| PTP071-1027 | Outlet Clamp | All PW66 |

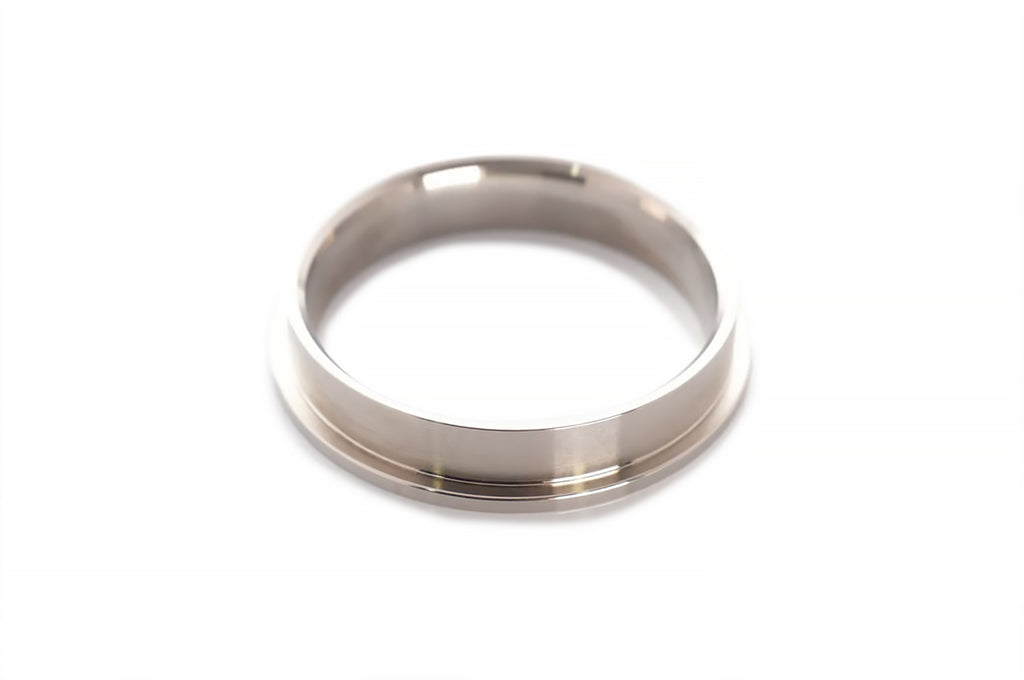

| PBO085-3122 | Valve Seat | All PW66 |

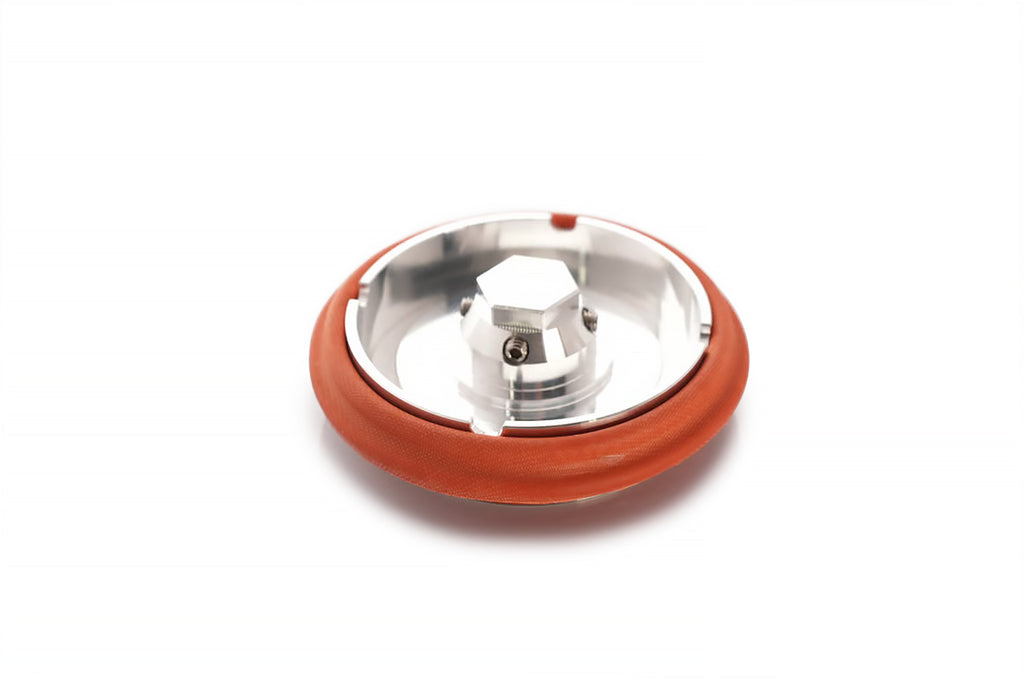

| PBO085-3110 | Diaphragm | Not for CO2 |

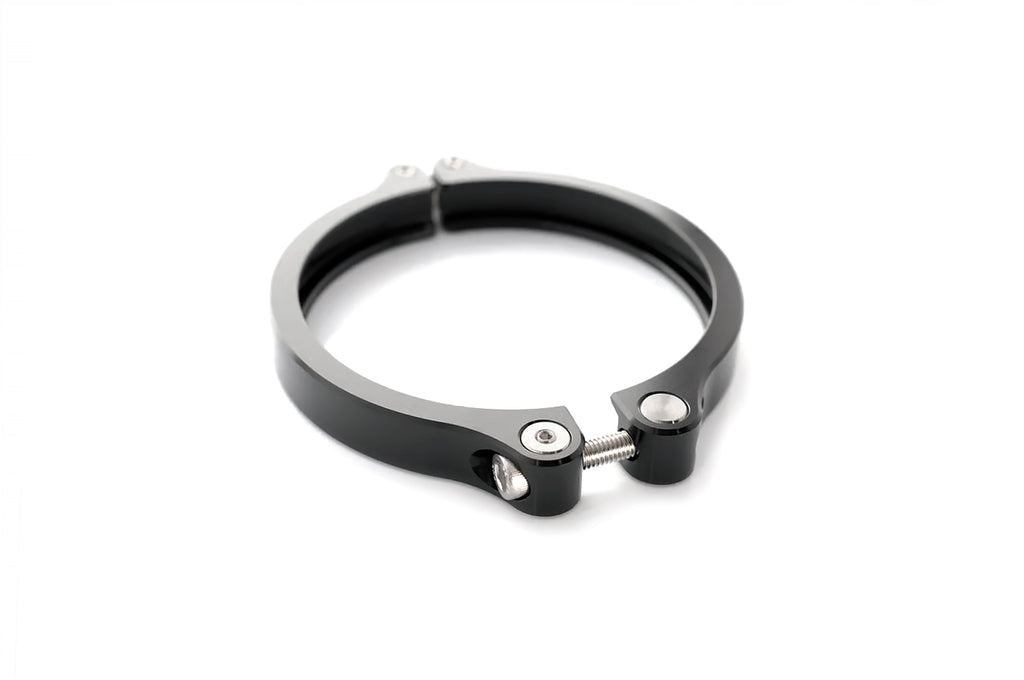

| PBO085-3116 | Can Clamp | Not for CO2 |

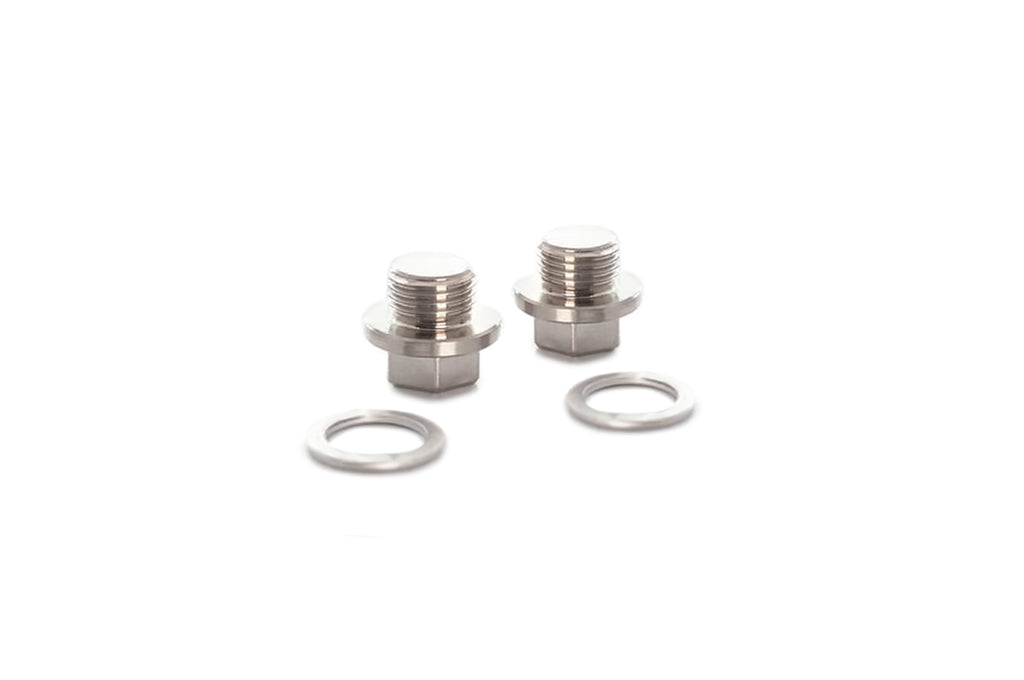

| PBO085-3118 | Port Plug Kit | Not for CO2 |

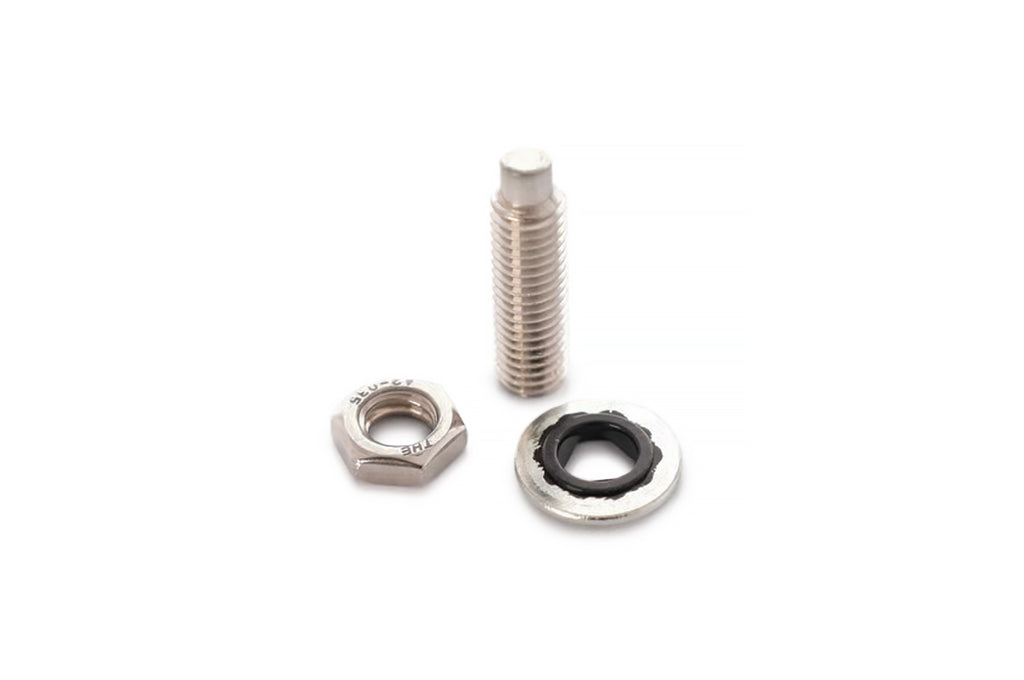

| PBO085-3220 | Adjuster Assembly | Not for CO2 |
| PBO085-3610 | CO2 Piston/Diaphragm Assembly | Only CO2 Dual-Port |
| PBO085-3105 | CO2 Piston Seal O-Ring Requires 2. Sold Individually |
Only CO2 Piston-Style |
| PBO085-3106 | Cap Ring O-Ring | Only CO2 Piston-Style |
| PBO085-3107 | Sleeve Seal O-Ring | Only CO2 Piston-Style |
Also Available:
PW66 Wastegate Springs
Pictured:
Stock photos are pictured for reference.
 |
