PTE Wastegate 56mm PW56 CO2 (PBO085-2850)

Precision Turbo & Engine Gen2 PW56 56mm CO2 piston-style external wastegate features a dual-port top and made from billet aluminum and stainless steel components with a satin black anodize. Includes all necessary flanges, clamps, springs and hardware.

Designed specifically for use with CO2-based boost control systems. The wastegate offers quicker response time, accuracy and durability under the high pressure demands of CO2 actuation, when compared to standard wastegate designs.

Vehicle Fitment:
Universal Application

Also Available:
Maintenance and replacement parts for the PW56 wastegate. Inlet/outlet v-band flanges, clamps and o-rings.
• PW56 Wastegate Springs
• PW56 Install and Replacement Parts

More from PTE:
Precision Turbo and Engine's high-quality yet economical 56mm CO2 piston-style external wastegate with dual-port top features the following:

• High grade high temperature stainless steel and billet aluminum components for the best in strength, style, and functionality at an affordable price.
• A 347 stainless investment cast valve body to provide consistent performance without fatigue or failure while also allowing for accurate boost control.
• An internal Nickel Chromium Alloy Valve.
• 4 individual ports (2 on the bottom can, and 2 on the top can).
• Comes complete with stainless steel inlet and outlet flanges.
• Unique stabilizing "Precision Pins" which prevent the inlet and outlet flange from spinning.
• All clamps necessary for installation.
• Compatible with most aftermarket manual or electronic boost controllers for ease of use.
• Warranted to be free from manufacturers defect for a period of 12 months or 12,000 miles!

Part Numbers:
PBO085-2850

Pictured:

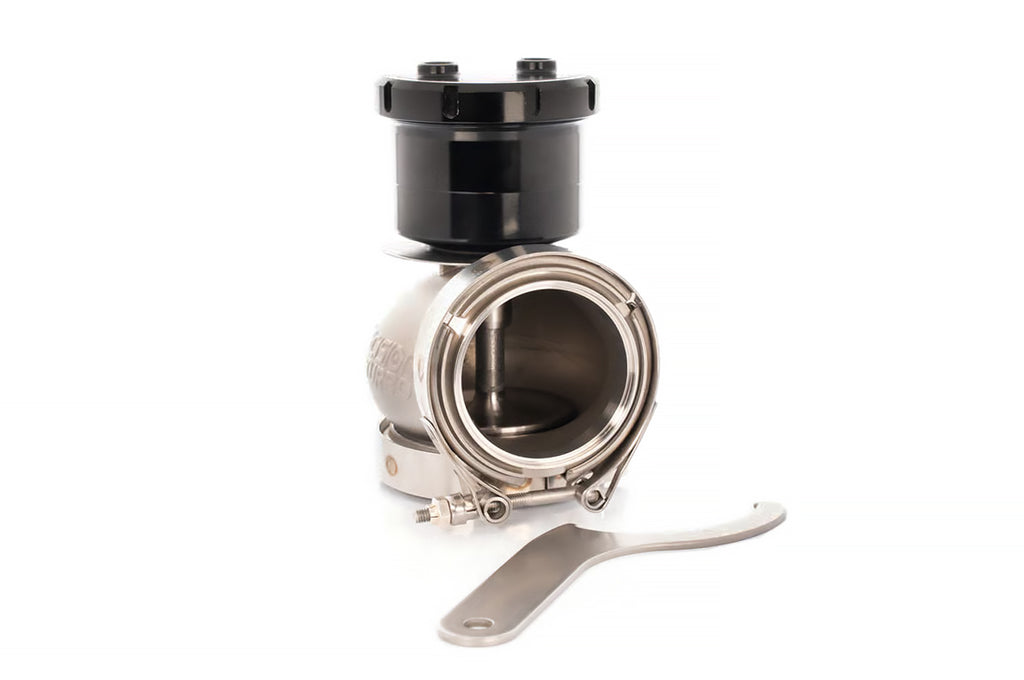

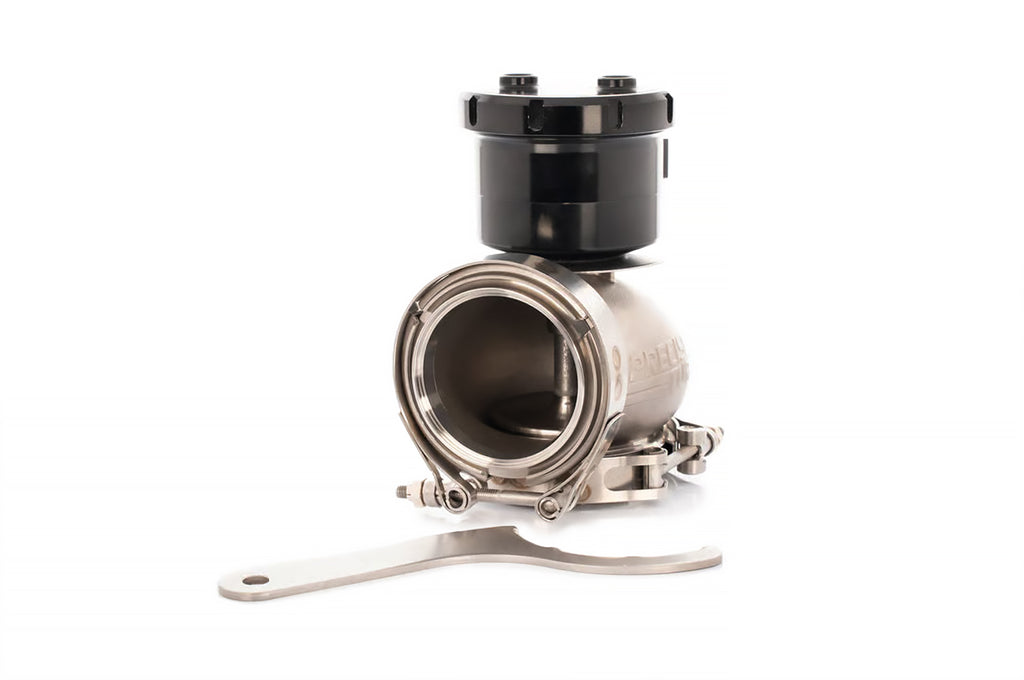

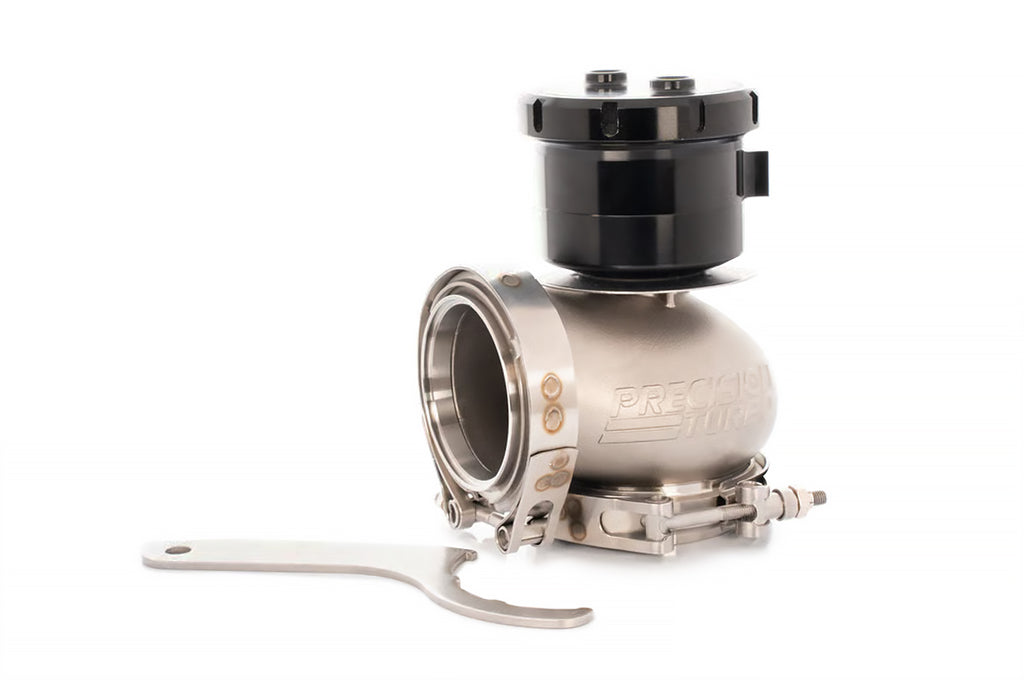

Stock photos are pictured for reference.
