Radium Fuel Pump Hanger Connection Kit for Evo 6 (20-1332)

Radium fuel pump hanger connection kit is designed specifically for the Evo 6 and includes the proper length fuel lines and fittings to connect the Radium Fuel Pump Hanger (20-1330) to the factory feed and return lines.

Vehicle Fitment:
Mitsubishi Lancer Evolution VI
• For use with Radium Fuel Pump Hanger (20-1330)
• Does NOT fit Evo 1-5 or 7-9
• For Evo 6 models only

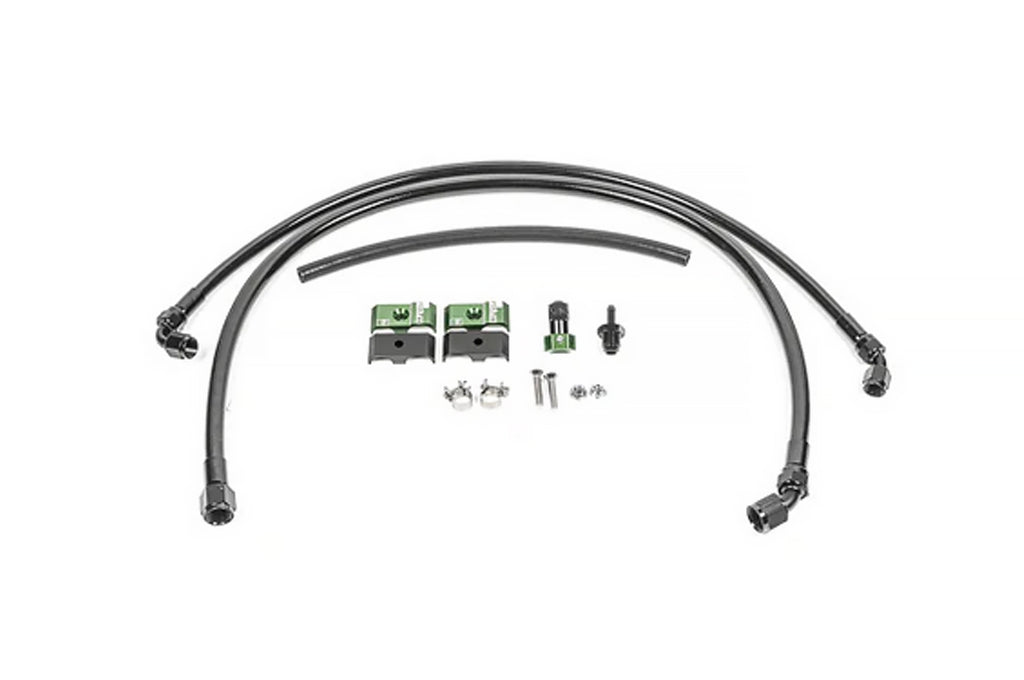

Purchase Includes:
• 8AN PTFE Fuel Feed Hose
• 6AN PTFE Fuel Return Hose
• SAE Quick Connect Adapter
• Stainless Steel EFI Clamps
• Billet Aluminum Clamps
• Misc Adapter Fittings
• 4AN Rubber Hose

More from Radium:
This kit provides all necessary connections from the top of the fuel tank to the OEM hard lines at the rear of the vehicle.
NOTE: Custom hoses and fittings will need to be purchased and constructed separately to run larger lines all the way to the engine and back.

From the pump outlet, a long 8AN PTFE fuel line runs down underneath the RH side of the fuel tank. An SAE quick connect adapter is provided that connects to the OEM hard line, as shown below.

When returning fuel comes back from the OEM FPR, it travels through an OEM barbed hard line that terminates just underneath the fuel tank. A short rubber hose is provided that adapts to 6AN. From here, a 6AN PTFE hose routes across the tank to the return port on the pump hanger.
Two anodized aluminum clamps are provided to mount the PTFE fuel lines across the upper front portion of the fuel tank.
