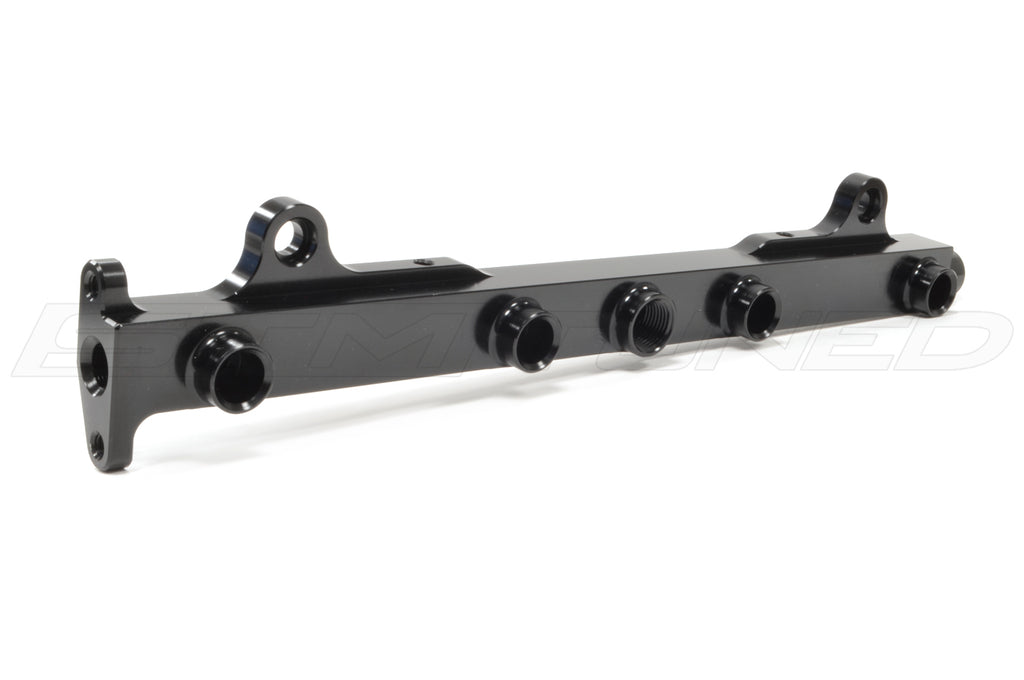

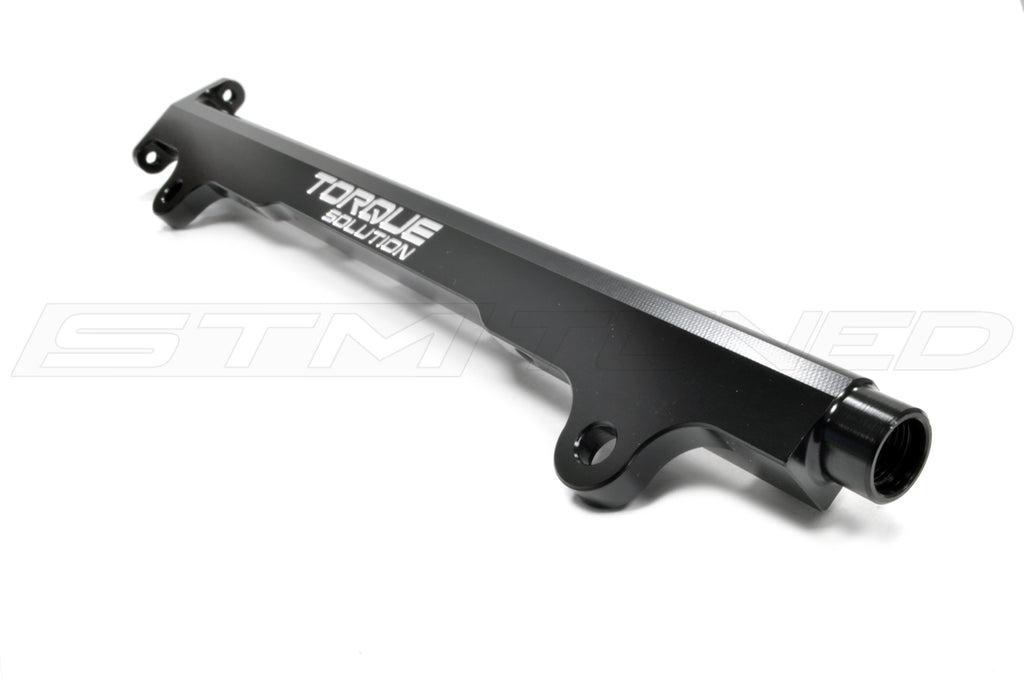

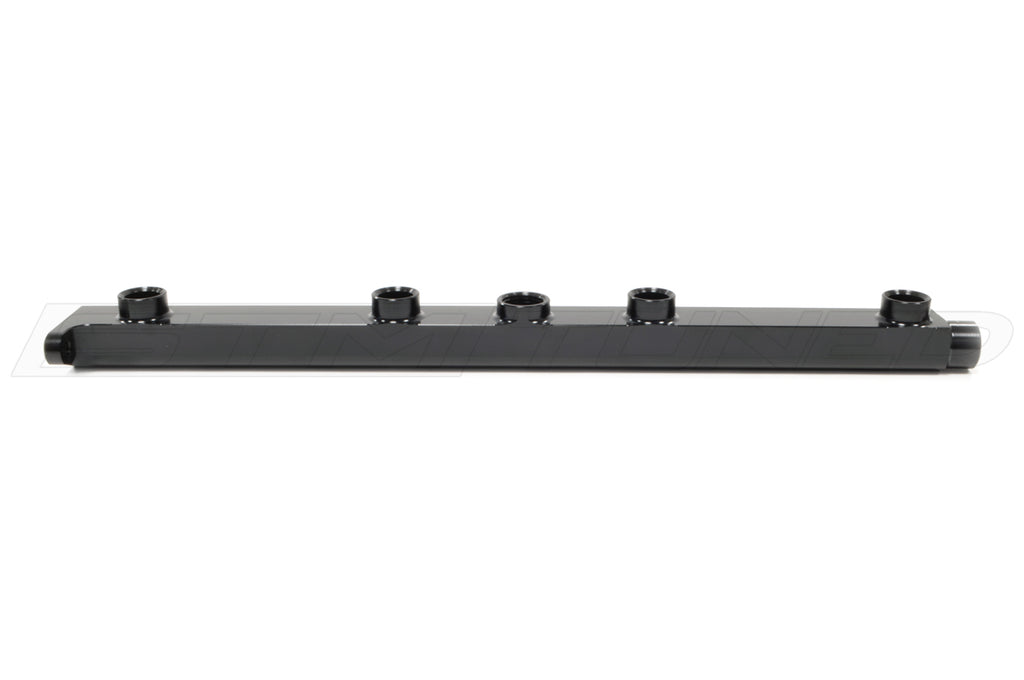

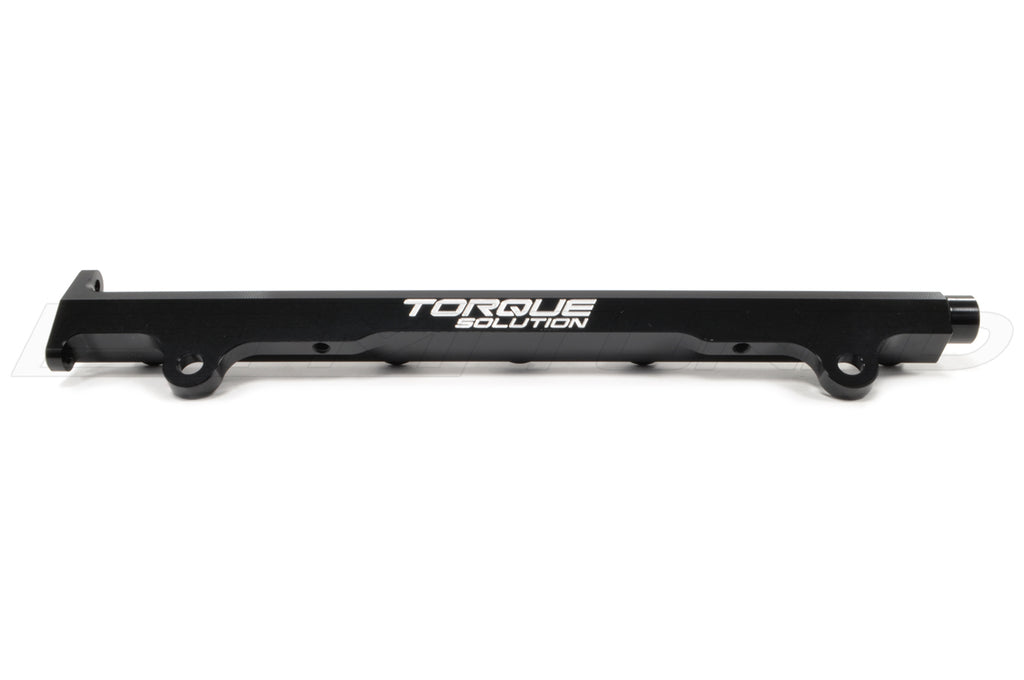

Torque Solution Fuel Rail Kit for Evo X (TS-EV-485)

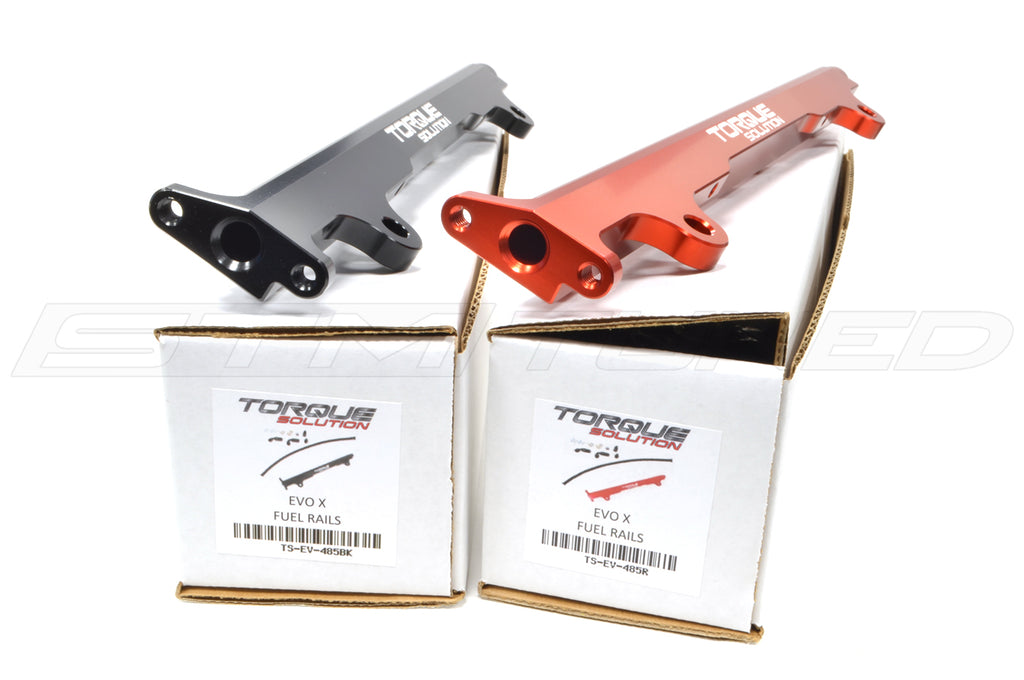

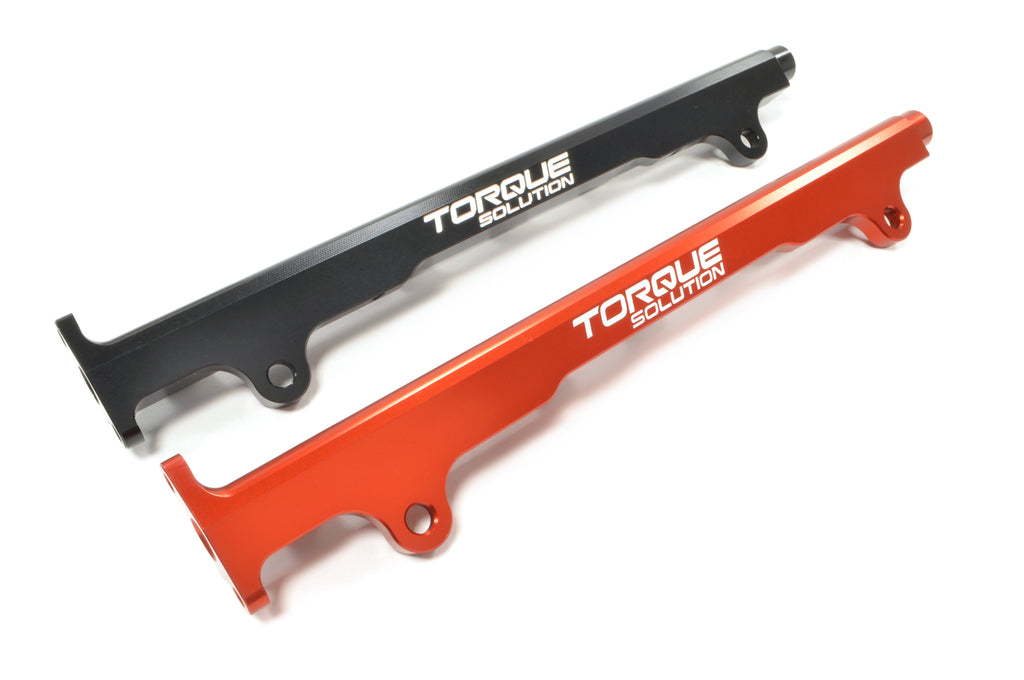

The Torque Solution Evo X billet aluminum fuel rail kits are available with a black or red anodized rail perfect for high HP and bigger injectors.

Vehicle Fitment:
2008-2015 Evolution X

More from Tourque Solution:
Torque Solution Fuel Rails are a must have for high horsepower applications and a perfect complement to your high flow fuel injectors. Our rails are made from 6061 Billet Aluminum with a large bore inlet/outlet for maximum fuel flow. Designed to work with factory lines and regulator. All our rails come anodized with our logo engraved into the billet to look as good as they perform. Comes with 3/8" NPT port to add a Radium Fuel Pulse Damper Part # 14-0128 (not included). Our fuel rail is compatible with the OEM fuel pressure regulator or aftermarket FPR adapters made for the EVO X rail. We include a -6an nylon braided fuel rail feed line kit, which eliminates the restrictive hard factory feed line converting to AN fittings from the firewall hard line to the fuel rail.

Features:
• 6061 Billet Aluminum
• Large bore for increased fuel flow
• Anodized
• Compatible with all fuel types
• Tapped for Optional 3/8" NPT Pulse Damper Port (comes plugged)
• Limited Lifetime Warranty

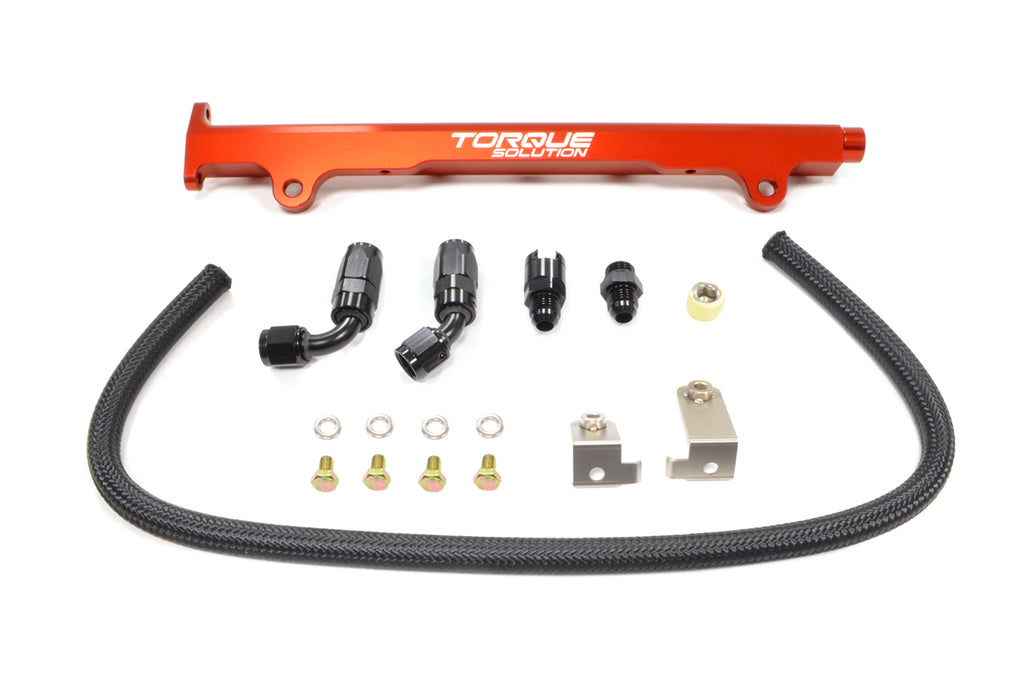

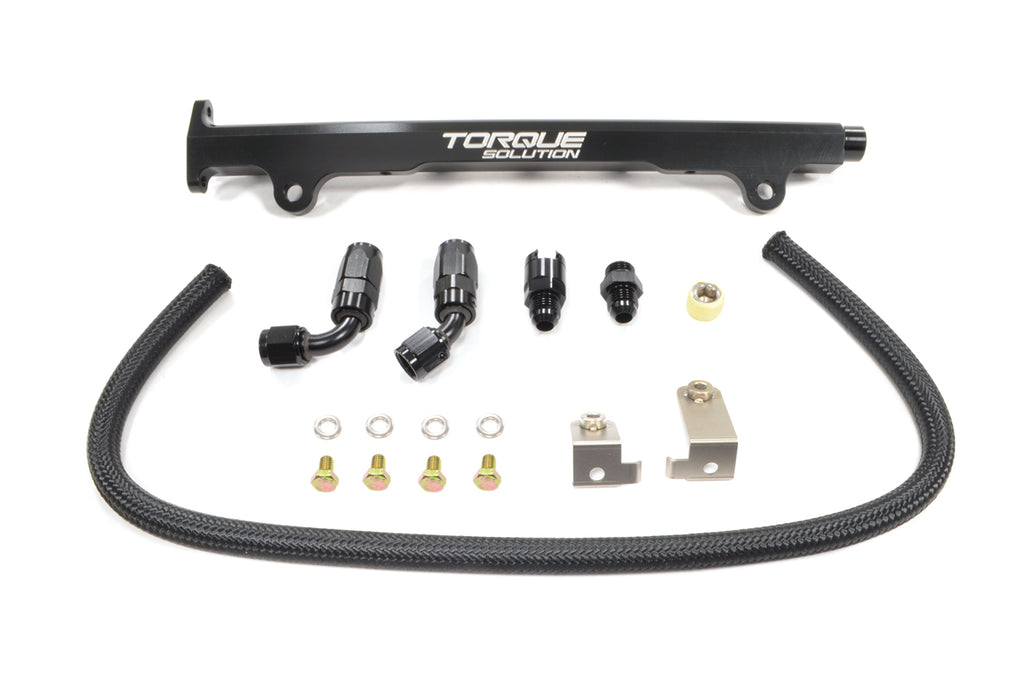

Purchase Includes:
(1) Billet Fuel Rail
(2) Stainless Steel Return line Bracket
(2ft) Black Nylon Braided Hose
(4) M6-10 Zinc Hex Bolt
(4) M6 Zinc Flat Washer
(1) 6AN Straight Cut ORB to -6AN Flare
(1) Locking Quick Disconnect Adapter Fitting: 5/16" SAE to -6AN Male Flare
(1) Rubber Hose Fitting: -6AN 45 Degree
(1) Rubber Hose Fitting: -6AN 90 Degree
(1) 3/8" NPT Plug
