Radium Phenolic Fuel Rail Spacers and Washers *Discontinued*
These press-fit spacers and washers are used with many Radium Engineering kits for thermally isolating the fuel rail from the engine. These are sold individually as needed. Price is for one spacer or one washer.
These are sold individually. Double check how many are required prior to purchasing.
Spacer height measurement does not include press-fit insert length. Example: total height for 14-0482 Phenolic Insulating Spacer, 11mm is 17.3mm.
Mounting hardware is not included. However, most bolts are common and can be sourced in local hardware stores.
Vehicle Fitment:
• Universal Application
• Please confirm sizing before purchase.
Spacer Specifications:
• Material: Phenolic Resin
• Outer Diameter: 19mm
• Inner Hole Diameter: 9.6mm
• Press-Fit Outer Diameter: 14.2mm
• Press-Fit Insert Length: 6.4mm
• Max Temperature: 265F°
• Tensile Strength: 17,000psi
Washer Specifications:
• Material: Phenolic Resin
• Outer Diameter: 14.5mm
• Inner Hole Diameter: 8.1mm
• Washer Thickness: 1.3mm
• Max Temperature: 265F°
Discontinued:
All options are now discontinued. We have none remaining in stock. 14-0483, 14-0183, 14-0184, 14-0484 and 14-0482.
These are sold individually. Double check how many are required prior to purchasing.
Spacer height measurement does not include press-fit insert length. Example: total height for 14-0482 Phenolic Insulating Spacer, 11mm is 17.3mm.
Mounting hardware is not included. However, most bolts are common and can be sourced in local hardware stores.
Vehicle Fitment:
• Universal Application
• Please confirm sizing before purchase.
Spacer Specifications:
• Material: Phenolic Resin
• Outer Diameter: 19mm
• Inner Hole Diameter: 9.6mm
• Press-Fit Outer Diameter: 14.2mm
• Press-Fit Insert Length: 6.4mm
• Max Temperature: 265F°
• Tensile Strength: 17,000psi
Washer Specifications:
• Material: Phenolic Resin
• Outer Diameter: 14.5mm
• Inner Hole Diameter: 8.1mm
• Washer Thickness: 1.3mm
• Max Temperature: 265F°
Discontinued:
All options are now discontinued. We have none remaining in stock. 14-0483, 14-0183, 14-0184, 14-0484 and 14-0482.
See more Radium Products
Customer Reviews
Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
C

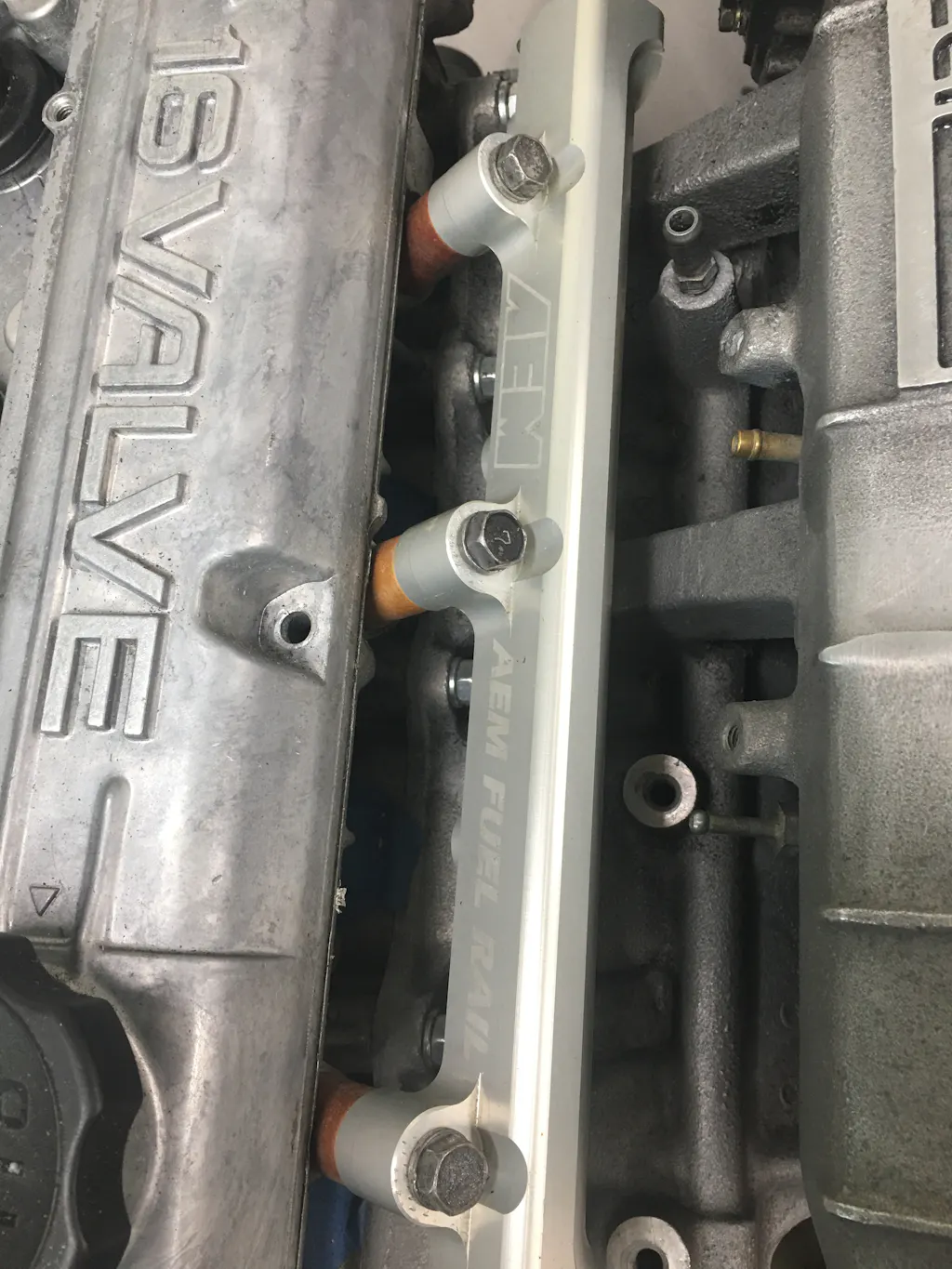

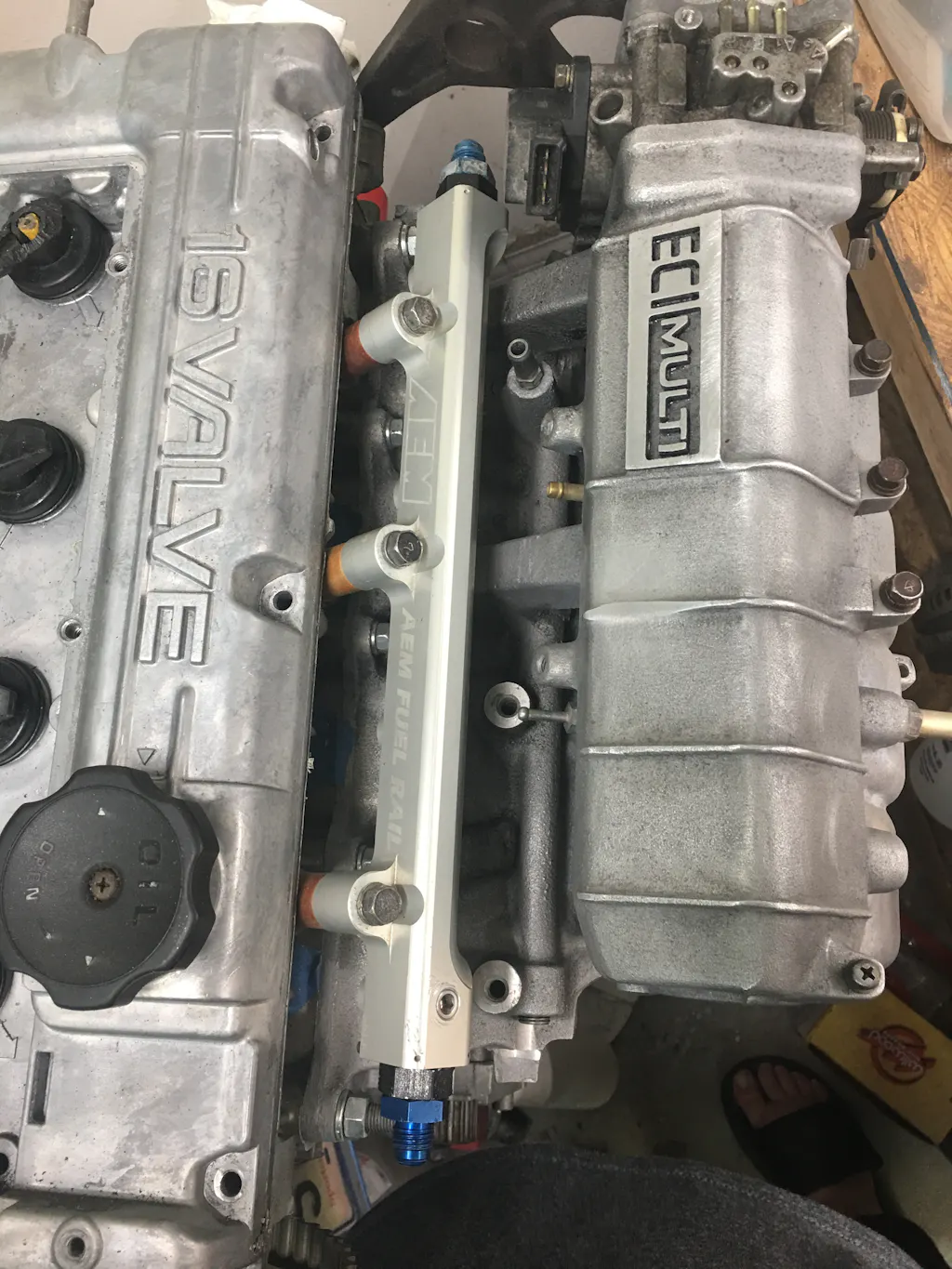

I bought these to run my AEM Fuel rail that is now discontinued, the spacers I needed are no longer available. These are 27MM long and I was able to shave the dowels down to fit in the fuel rail bosses, with a drill, painters tape and sand paper. To really get them to the right size, I got the dowels sanded to a point enough to fit in the rail. Lastly I squeezed them in the vice against the fuel rail, it shaved them down to the perfect size. Now I just need to paint them and you'd never know they're made of wood.
B
Works as expected would recommend to anyone upgrading fuel rail.
 |
