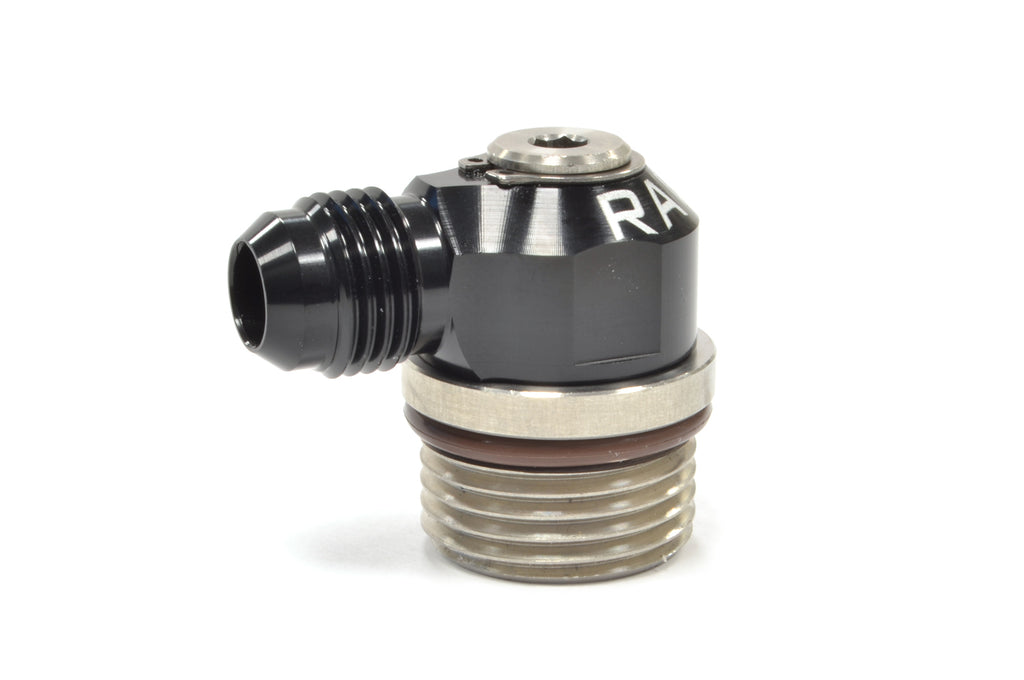

Radium Low-Profile Swiveling Banjo Fitting

Radium

$33.20
RAD-20-1000-0406

Quantity:



We price match!

These Radium banjo fittings have the ability to rotate 360° even after installation. These are an excellent option for 90° connections and are very low profile. Suitable for use in high pressure fuel and oil systems. Do not exceed 400 psi. Sold individually as needed. Price is for one fitting.

Image: Part Number: Description:
20-1000-0406 20-1000-0406 4AN ORB Swivel Banjo to 6AN Male
Installed Height (bottom installed surface to top): 0.797in (20.2mm)
20-1000-0465 20-1000-0465 4AN ORB Swivel Banjo to 6.5mm Barb
Installed Height (bottom installed surface to top): 0.797in (20.2mm)
20-1000-0485 20-1000-0485 4AN ORB Swivel Banjo to 8.5mm Barb
Installed Height (bottom installed surface to top): 0.797in (20.2mm)
20-1000-0606 20-1000-0606 6AN ORB Swivel Banjo to 6AN Male
Installed Height (bottom installed surface to top): 0.797in (20.2mm)
20-1000-0606F 20-1000-0606F 6AN ORB Swivel Banjo to 6AN Female
Installed Height (bottom installed surface to top): 0.797in (20.2mm)
20-1000-0685 20-1000-0685 6AN ORB Swivel Banjo to 8.5mm Barb
Installed Height (bottom installed surface to top): 0.797in (20.2mm)
20-1000-06313 20-1000-06313 6AN ORB Swivel Banjo to 5/16in SAE Male
Installed Height (bottom installed surface to top): 0.797in (20.2mm)
20-1000-0806 20-1000-0806 8AN ORB Swivel Banjo to 6AN Male
Installed Height (bottom installed surface to top): 0.797in (20.2mm)
20-1000-0808 20-1000-0808 8AN ORB Swivel Banjo to 8AN Male
TBA
20-1000-0885 20-1000-0885 8AN ORB Swivel Banjo to 8.5mm Barb
Installed Height (bottom installed surface to top): 0.797in (20.2mm)
20-1000-08313 20-1000-08313 8AN ORB Swivel Banjo to 5/16in SAE Male
Installed Height (bottom installed surface to top): 0.797in (20.2mm)
20-0402 20-0402 10AN ORB Swivel Banjo to 6AN Male
Installed Height (bottom of hex to top): 0.797in (20.2mm) *Discontinued JUN 2022*
20-1000-1008 20-1000-1008 10AN ORB Swivel Banjo to 8AN Male
Installed Height (bottom of hex to top): 1.019in (25.9mm)
20-1000-1010 20-1000-1010 10AN ORB Swivel Banjo to 10AN Male
Installed Height (bottom installed surface to top): 1.121in (28.5mm)
20-1000-1012 20-1000-1012 10AN ORB Banjo Swivel to 12AN Male
Installed Height (bottom installed surface to top): 1.286in (32.7mm)
20-1000-10313 20-1000-10313 10AN ORB Swivel Banjo to 5/16in SAE Male
Installed Height (bottom installed surface to top): 0.797in (20.2mm)
20-1000-10375 20-1000-10375 10AN ORB Swivel Banjo to 3/8in SAE Male
Installed Height (bottom installed surface to top): 0.797in (20.2mm)
Purchase Includes:
(1) Fitting

Notes:
In April 2021, Radium changed and superseded some part numbers. For searching reference, we have them listed: 20-0307, 20-0308, 20-0309, 20-0400, 20-0403, 20-0404.

See more Radium Products
See more Radium Products
© All content is property of STM Tuned Inc

Customer Reviews

Based on 4 reviews
50%
(2)
50%
(2)
0%
(0)
0%
(0)
0%
(0)
K
KC AUTOMOTIVE-- SHANE A SMITH (Waldorf, MD, US)

These fittings are awesome. Is great product

A
Andrew brown (College Park, MD, US)
Fittings

Fast shipping great product as described. I recommend and will do business again.

J
James Taylor

great product, had to call for shipping info but very helpful when I did

K
Ken (Westland, MI, US)
Excellent Product

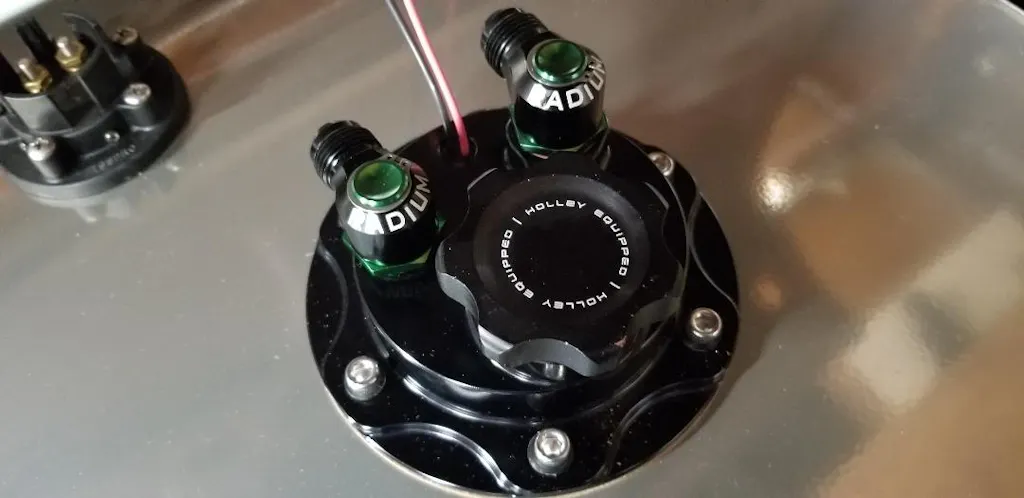

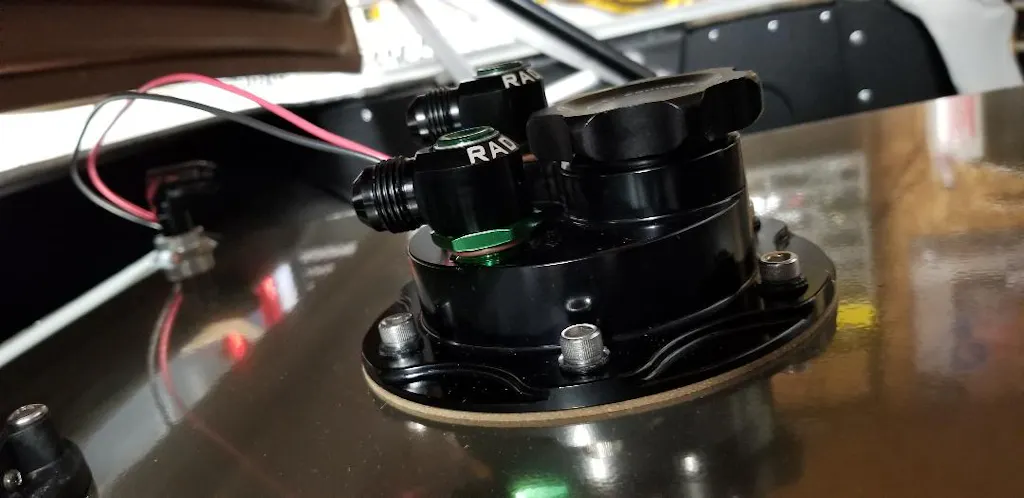

These fittings were expensive but they saved me tons of money in the long run. I didn't take into consideration the height of the in tank pump and fittings when I fabricated the mount for the tank. With normal 90 degree fittings I couldn't close the trunk all the way. I was freaking out until after searching extensively I came across these. These not only look great, they seem like they are very well made and they swivel so the lines can be any direction you need. The low profile made them fit perfectly! I am an extremely satisfied customer. Even if you don't need a low profile fitting these would be perfect. I don't have anything hooked up yet but you can see in the pictures how they look.

User picture User picture
