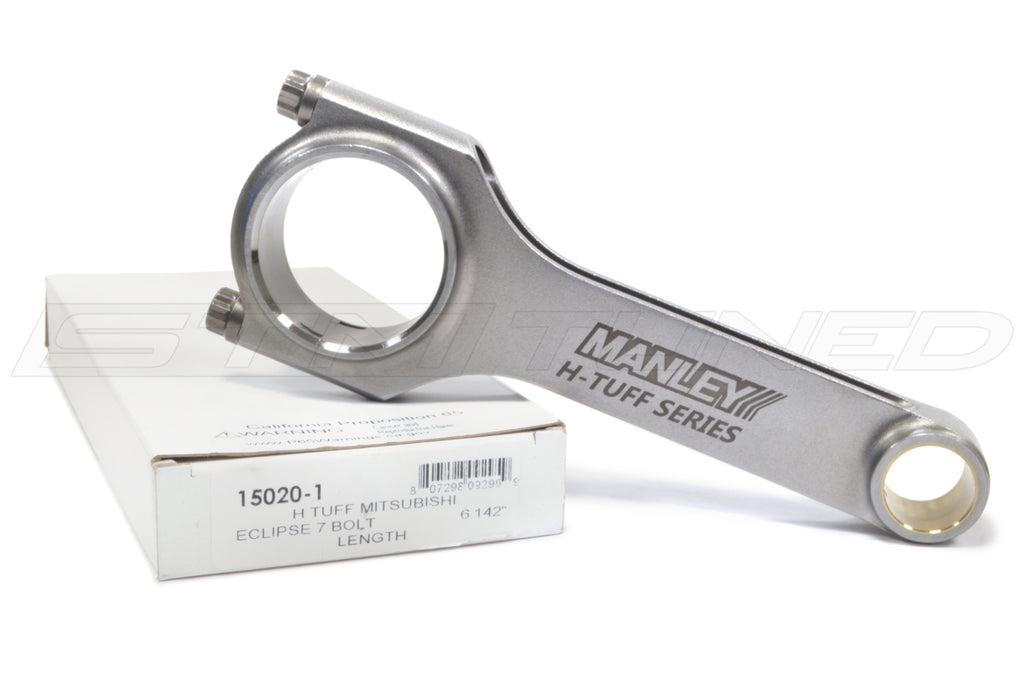

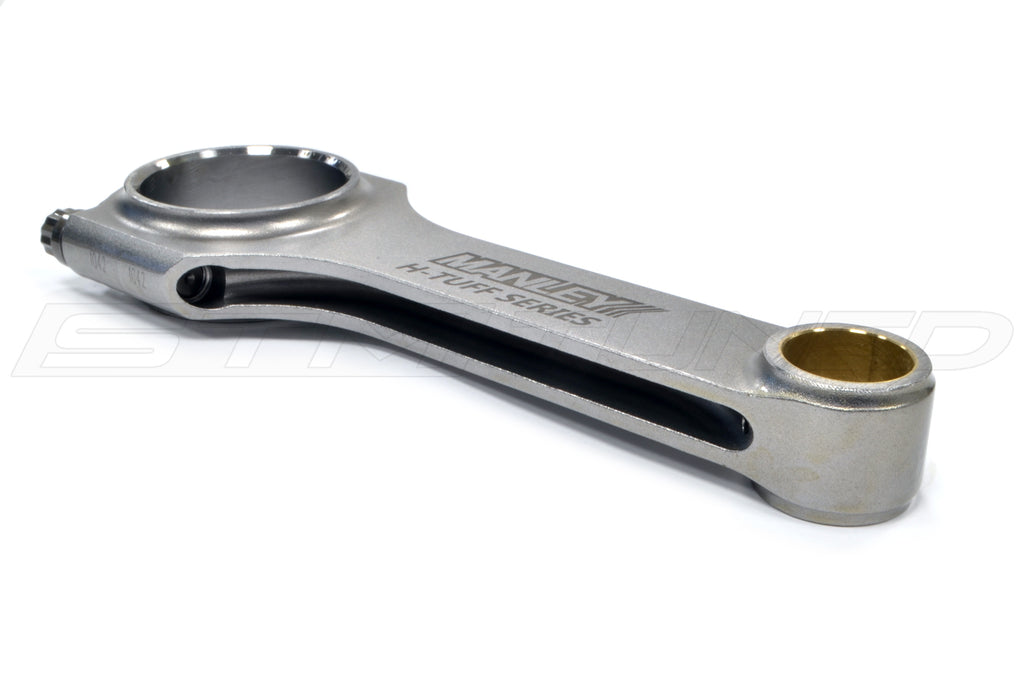

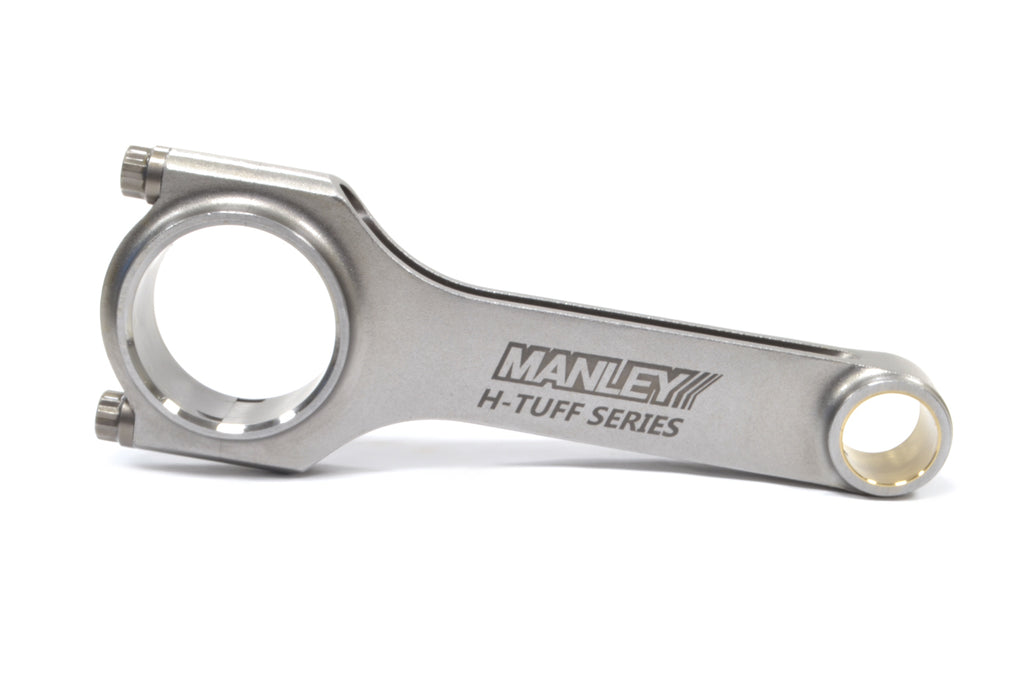

Manley H-Tuff Steel Rods for 7-Bolt 4G63 DSM/Evo
Manley Performance H-Tuff steel rods for the 7-Bolt 4G63 Evolution, Eclipse, Talon, laser and GVR4 has a wider beam than the standard H-Beam rods. The H-Tuff rods come with 3/8" ARP 2000 rod bolts and are good to 750 crank horsepower. Includes a full set of 4 rods with Manley assembly lube.
Vehicle Fitment:
7-Bolt 4G63
1996-2006 Evolution IV V VI VII VIII IX
1992.5-1999 Eclipse GST/GSX
1992.5-1998 Talon TSi
1992.5-1994 Laser RS
1992.5-1992 Galant VR4
Features:
• Manufactured from 4340 forgings
• Heat treated, stress relieved, shot peened and 100% individually magnafluxed
• Weight matched sets + 1.5 grams
• Cap fasteners are 3/8" ARP 2000
• Flywheel horsepower range is 750
Includes:
Set of 4 Rods
Manley Lube
Vehicle Fitment:
7-Bolt 4G63
1996-2006 Evolution IV V VI VII VIII IX
1992.5-1999 Eclipse GST/GSX
1992.5-1998 Talon TSi
1992.5-1994 Laser RS
1992.5-1992 Galant VR4
Features:
• Manufactured from 4340 forgings
• Heat treated, stress relieved, shot peened and 100% individually magnafluxed
• Weight matched sets + 1.5 grams
• Cap fasteners are 3/8" ARP 2000
• Flywheel horsepower range is 750
Includes:
Set of 4 Rods
Manley Lube
| Manley H-Tuff Steel Rods for 4G63 7-Bolt DSM/Evo: | |||||||
| Part Number | Application | Center to Center | Big End Bore | Big End Width | Pin Diameter | Pin Bore | Grams |
| 15022‑4 | 7-Bolt 4G63 | 5.905" | 1.890" | 1.038" | .866" (22mm Pin) | .8671" | 635 |
|
Notes: 150mm Rod Length. Recommended bearings to be used: ACL 4B1185/H or Clevite CB-1643P. |
|||||||
| 15020‑4 | 7-Bolt 4G63 | 6.142" | 1.890" | 1.038" | .866" (22mm Pin) | .8671" | 635 |
| Notes: 156mm Rod Length (.237 / 6mm Longer). | |||||||
