GSC Billet Cams for Evo 4-8

GSC Billet camshafts are available for Evo 4/5/6/7/8 builds from basic bolt-on's to 800+ HP. These cams are sold as the pair, both intake and exhaust. Please review all options below and if you need any help, just give us a call.

Vehicle Fitment:
1996-2005 Mitsubishi Lancer Evolution IV V VI VII VIII
(4G63 Evo 4/5/6/7/8)
NOTE: Evo 9 GSC Cams are AVAILABLE HERE

Includes:
2 Camshafts (Intake Cam and Exhaust Cam)

7008S1 S1 Cams (268/268)
The Billet S1 Cams are designed for those with the stock turbo up to the GT30/50Trim. These cams will not sacrifice any bottom end loss over stock cams; nothing but gains and will promote faster spooling of the upgraded turbos. Gains of 30-55 WHP (depending on Turbo) have been seen by simply bolting the S1 cams in. Designed for a rev range of 3000-8000 RPM, these cams work well on the stock valve springs.
• 300-450 WHP camshaft.
• Idle is slightly rougher than stock

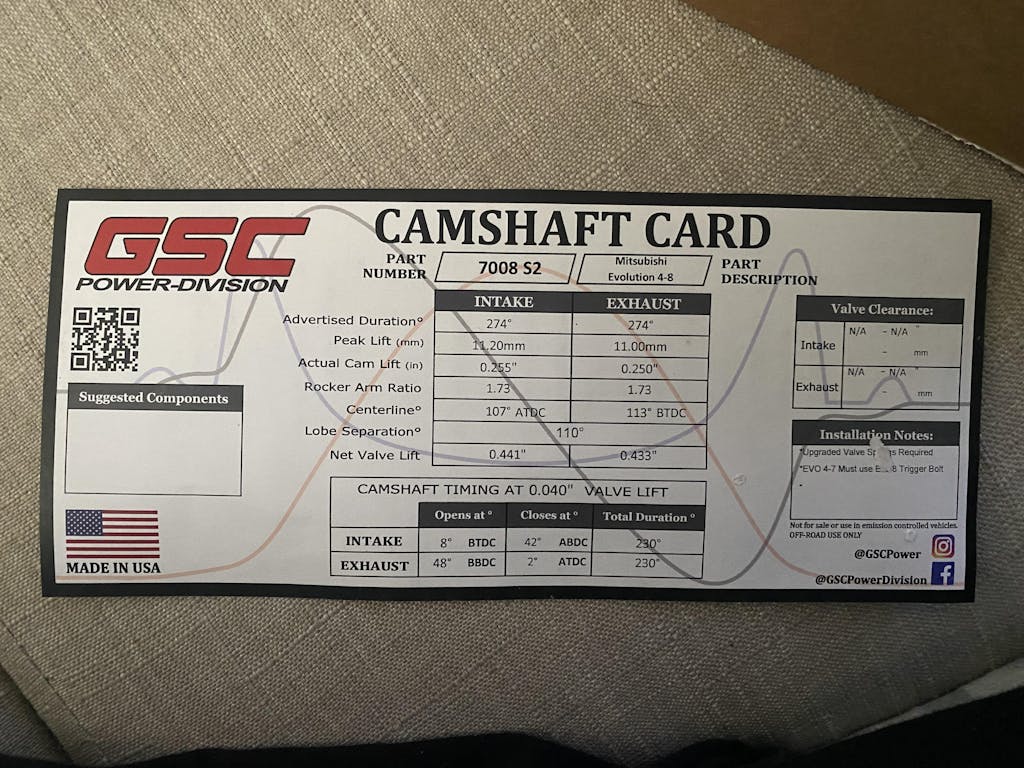

7008S2 S2 Cams (274/274)
The Billet S2 cams are designed for those with more power in mind or a larger turbo. No low end power is lost vs the stock cams when used with the larger turbos. The S2 cams will show gains of 50-70 WHP over the stock cams and in some cases more in the higher RPMS. Great for 2.0L engines revving to 9000rpms or for Stroker motors revving to 8000rpms. The S2 Cams are suggest to run on our upgraded Beehive valve spring replacement or can be run at the stock rev limit and factory boost on the stock spring. Designed for a rev range of 4000-9000 RPMS (2.0L or 3000-8000 2.2L+)
• 400-700 WHP camshaft.
• S2 cams can run on Factory ECU with custom flashing
• Idle is rougher than stock.

7008S3 S3 Cams (280/280)
The Billet S3 Cams are available in an off-the-shelf Hydraulic Lifter Cam profile for the Evo 4-8 4G63. These cams are intended for the 800+ WHP to take advantage of a very large turbo. These are NOT suggested for anyone running smaller than the 67mm to GT42R turbo.

7008R2 R2 Cams (274/274)
GSC worked closely with English Racing on this profile to offer the 2.2L - 2.4L lower revving engines a profile that would allow for more air volume in the cylinder to help fill the larger displacement engines and make more midrange and top end power.

The 7008R2 is a high-lift, very aggressive profile with a short, overall duration to keep a lower usable rpm band. The 7008R2 is designed to rev between 4000-8500 rpms and should be used with a stroked engine or added displacement engine.

The peak lift of 12.0MM Intake and exhaust will require upgraded valve springs and a titanium retainer with special attention to seal to retainer clearance. With the lift of this profile it is suggested to only use the 5041/5040 Ti retainer and spring kits do to valve seal to retainer clearance. The 5041 can be used to 40+psi and the 5040 to 32psi on the R2 profile at 8500rpms without float or flutter issues. The profile will work fine on the OEM Rocker Arm and the Zero-tick lifter or with the OEM lifter. GSC has seen gains of 25-30 WHP over the S2 profile on the stroked applications with much more possible when used with a ported head and aftermarket intake manifold.
