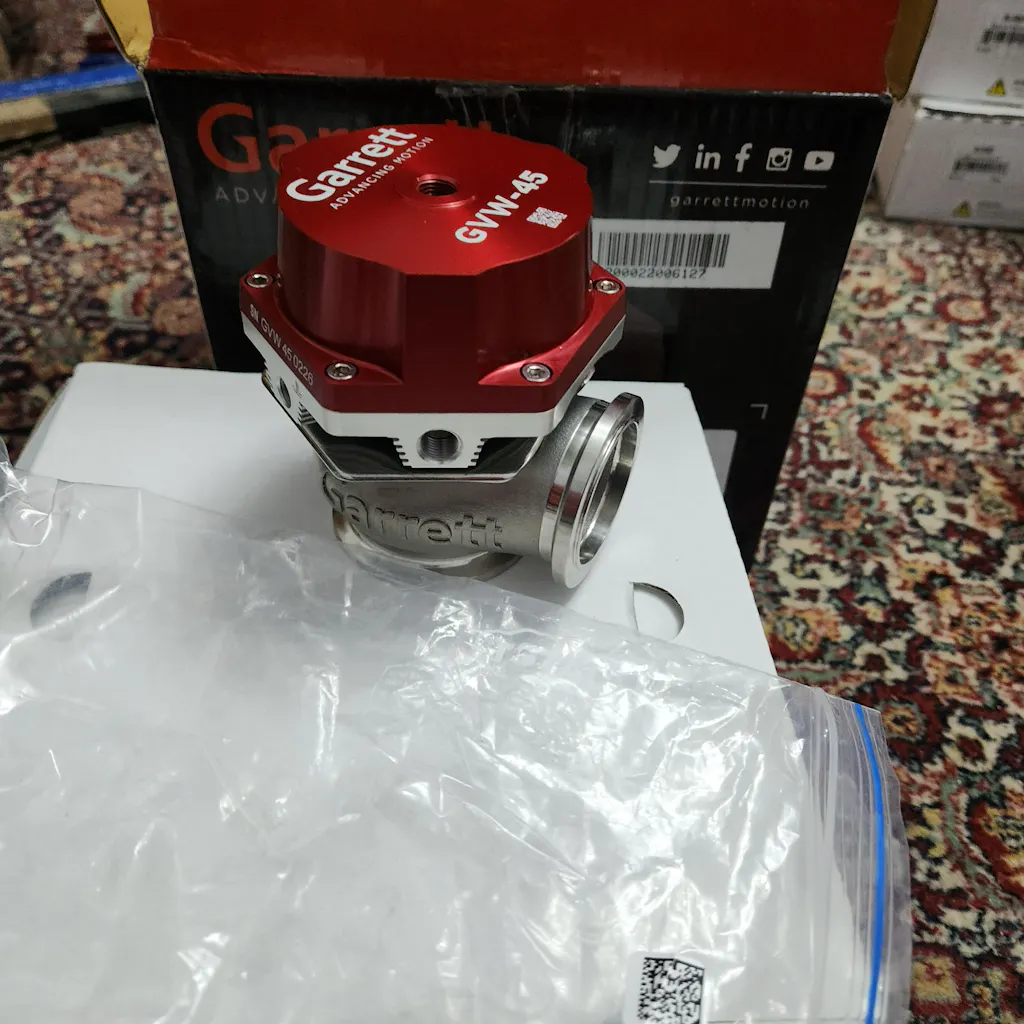

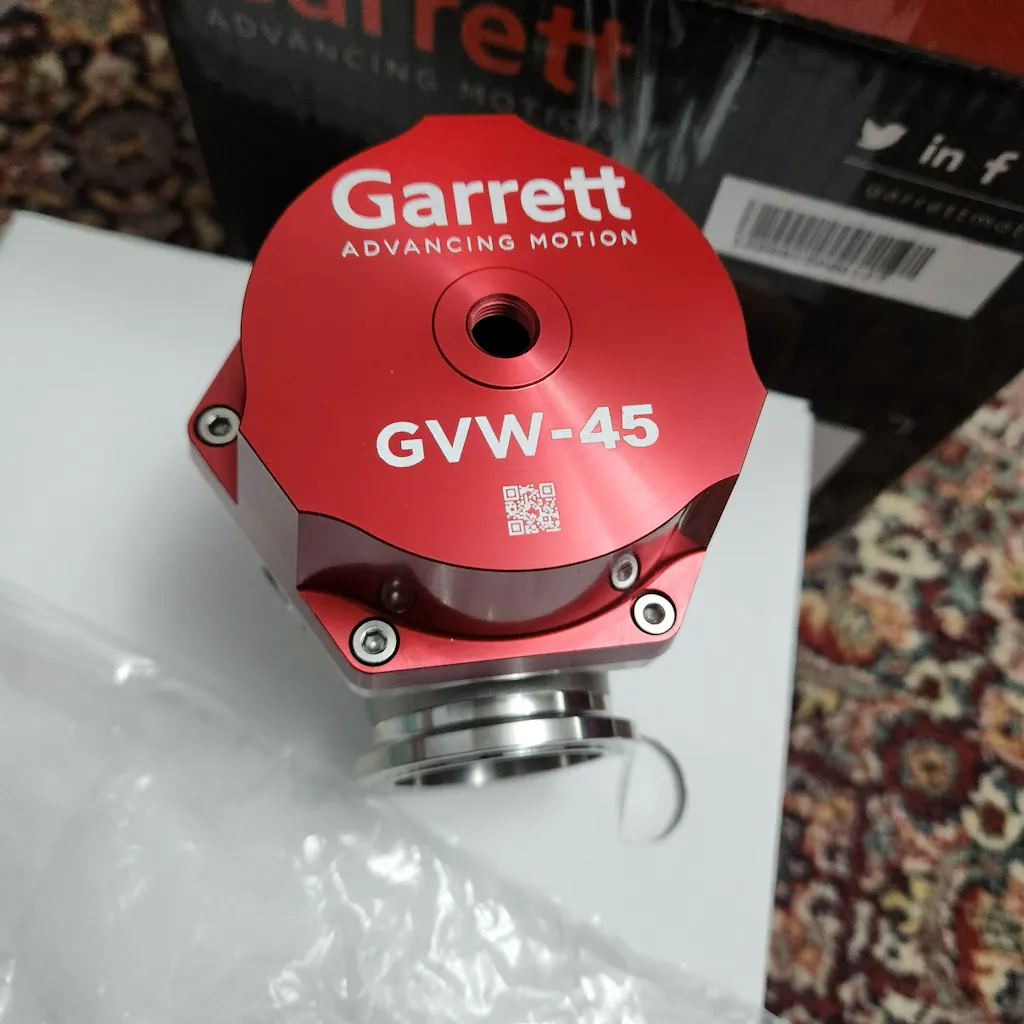

Garrett GVW External Wastegate

Garret GVW40, GVW45 and GVW50 external wastegates are available in 3 sizes and 4 colors. The GVW wastegates regulate turbo shaft speed by venting exhaust gas around the turbine stage. CFD design maximizes flow and delivers consistent boost control. Advanced thermal optimization increases durability of the diaphragm. The cap design makes spring changes and serviceability of the entire GVW lineup easier and more reliable to perform.

Features:
• CFD tested for maximum flow and thermal efficiency
• Optimized actuation stability and temperature resistance for superior durability
• Replaceable valve and bushing components to increase service life
• Robust design for easy diaphragm replacement
• Liquid-cooled actuator ports for use on severe applications
• Anodized aluminum actuator cover (Red, Blue, Black, Silver
• Springs | Fittings | Flanges | V-bands included

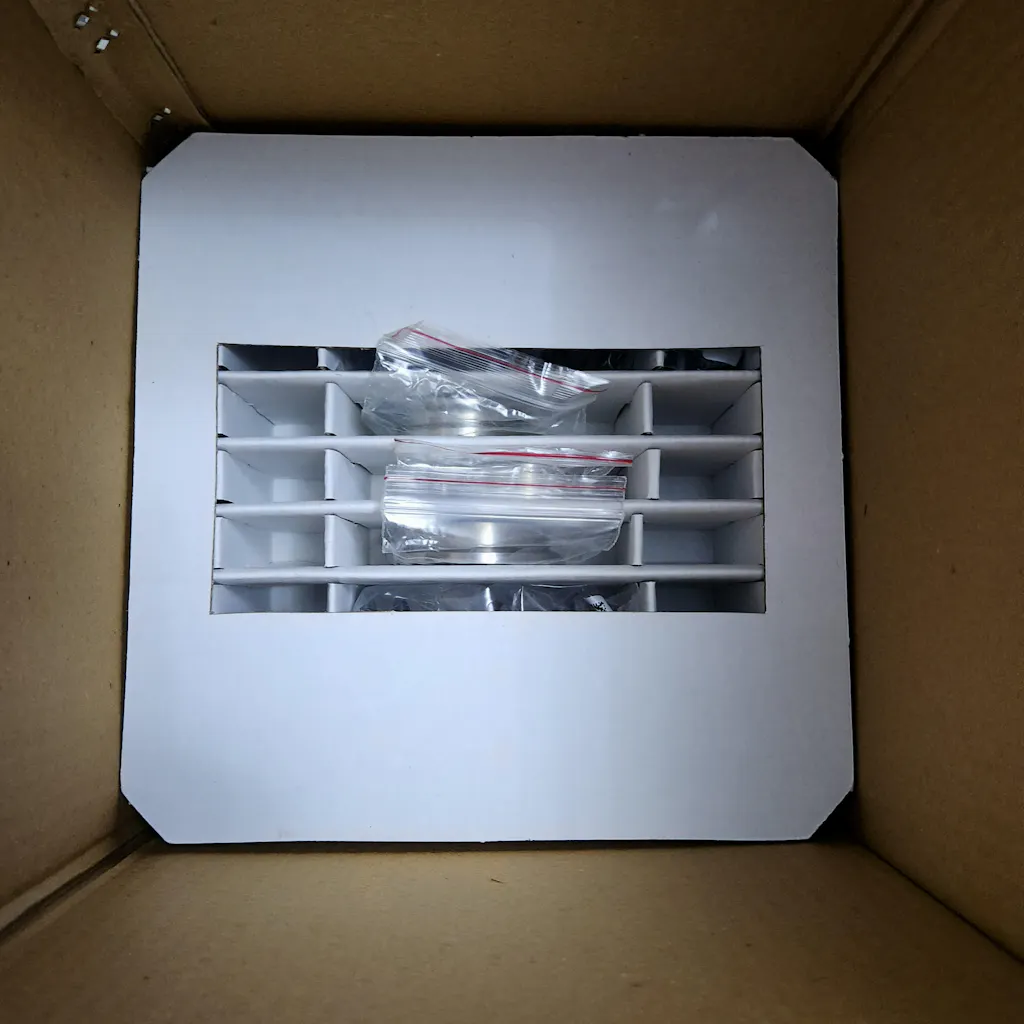

Purchase Includes:
• Wastegate Body
• Springs
• V-Band: Inlet | Outlet
• Outlet Flange
• Inlet Flange
• Valve Seat
• Washers: M8 | M10
• Water Fittings
• Banjo Bolt and Banjo Fittings
• Air Plugs



Wastegate Springs:
GVW wastegates are set to 1 Bar | 14.5 PSI of base pressure and can be configured from 0.2 Bar | 2.9 PSI – 1.7 Bar | 24.7 PSI (considering 1:1 backpressure). Use the chart to reference wastegate size and spring color to identify Garrett GVW wastegate spring pressures.



Serviceability and Replacement Parts:
Replacement part kits are available for GVW wastegates. If you don't see it online yet, just give us a call to order.
• Air Fitting Kit (Banjo fitting, bolt, 2 crush washers)
• Diaphragm Kit (Diaphragm assembly, valve stem nut)
• Valve | Bushing Kit (Valve, bushing, seal washer, O-ring, valve stem nut, seat)
• V-band Inlet (V-band, bolt, locknut)
• V-Band Outlet (V-band, bolt, locknut)
