Cometic MLX Head Gasket for EJ255/EJ257 06-14 WRX/07+ STi (C4587)
Cometic MLX Multi-Layer Xtreme head gaskets for the Subaru WRX/STi EJ255 and EJ257. These gaskets have a 101mm bore and are available in different thickness. Please review your selection carefully before purchase and consult your engine builder if necessary.
Vehicle Fitment:
2006-2014 WRX (EJ255 V2)
2007-2021 STi (EJ257)
Purchase Includes:
(1) Gasket
The same gasket is used on both sides. Sold individually as needed, price is for one gasket.
Pictured:

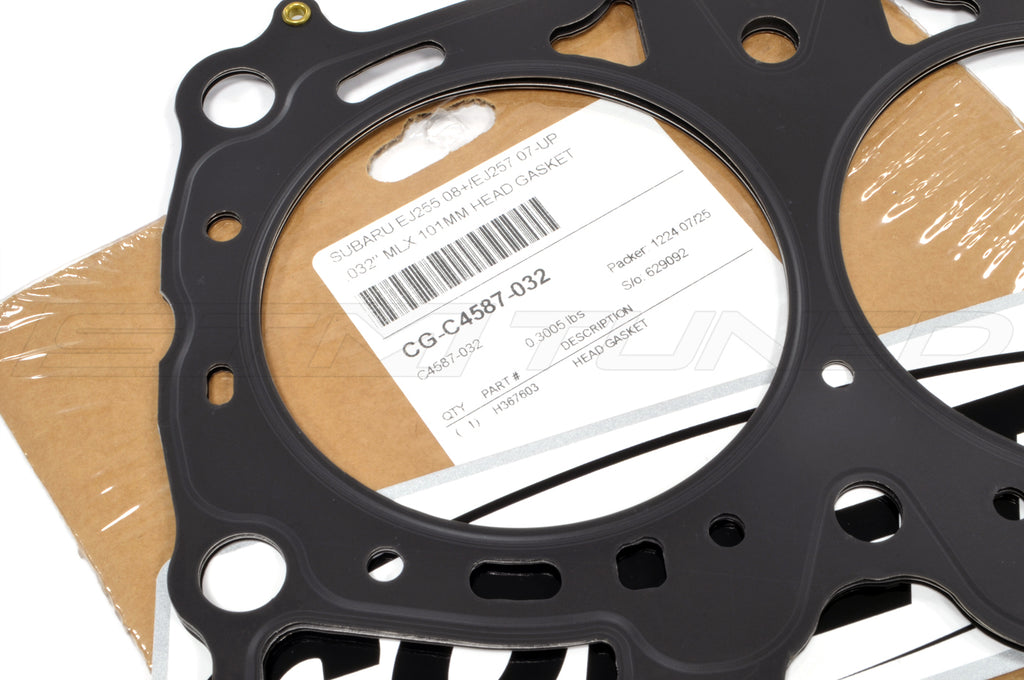

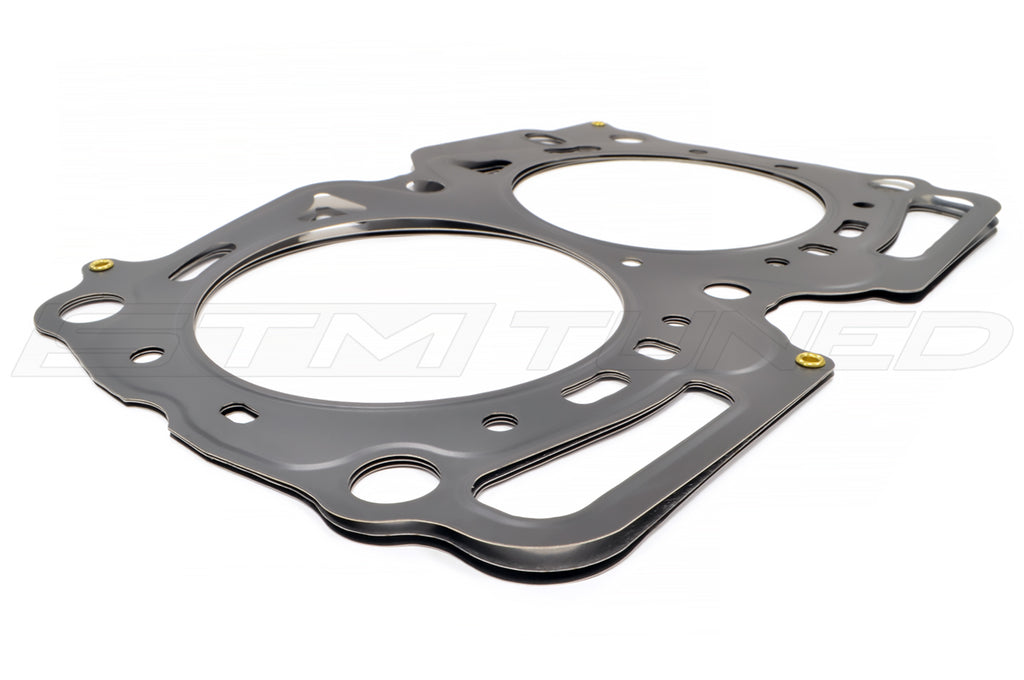

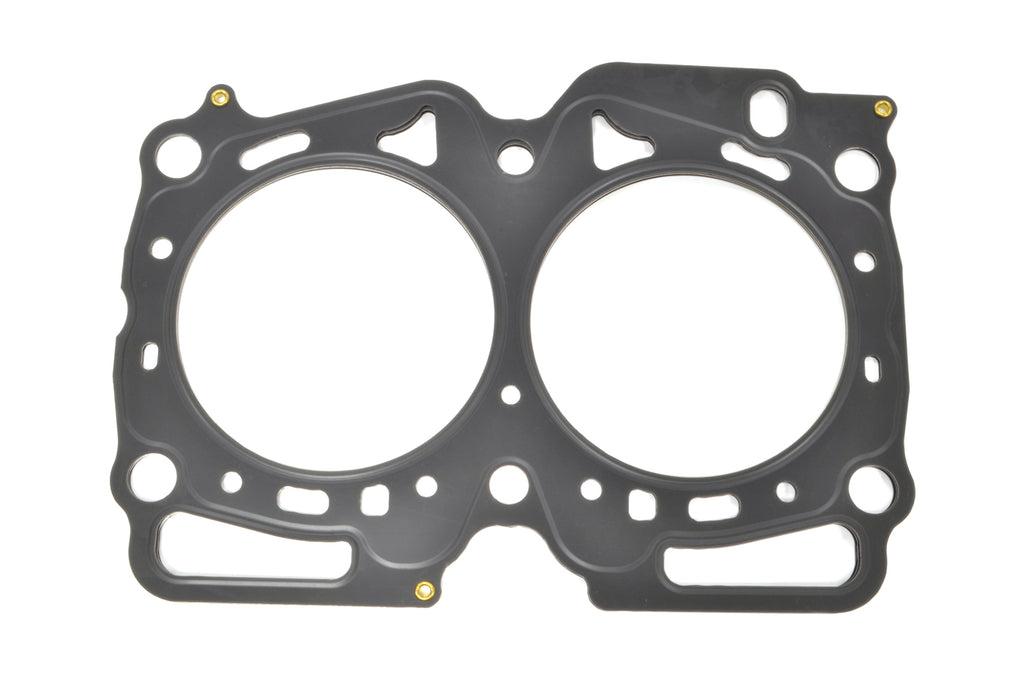

C4587-032 is pictured in detail.
More Info:
The Cometic Multi-Layer Xtreme (or MLX) design includes an extra layer in the gasket and high-temperature polymers and embossments to seal the water passages. The extra layer allows for better combustion sealing, and lower bore distortion.
The MLX Gasket (Multi-Layer-Steel-Stopper) features an extra stopper fold-over layer providing a torque limiting surface that prevents yielding of the combustion seals. High temperature polymer along with embossments provide a micro seal for fluids against the head and block surface.
Shipping Times:
Some special sizes are not always in stock and will be made to order by Cometic. A 5-week wait time can be expected in that case. If you have a deadline, please contact us directly with the part number you need.
| Part Number: | Bore Size: | Thickness: | Layers: |
| C4587-028 | 101mm | .028" | 3 |
| C4587-032 | 101mm | .032" | 3 |
| C4587-036 | 101mm | .036" | 3 |
| C4587-040 | 101mm | .040" | 4 |
| C4587-044 | 101mm | .044" | 4 |
| C4587-050 | 101mm | .050" | 5 |
| C4587-052 | 101mm | .052" | 5 |
| C4587-060 | 101mm | .060" | 5 |
 |
