AutoMeter Artic White 5 Pc. Gauge Kit, 3-1/8" & 2-1/16", Mechanical Speedometer, Temp, Pressure (1311)

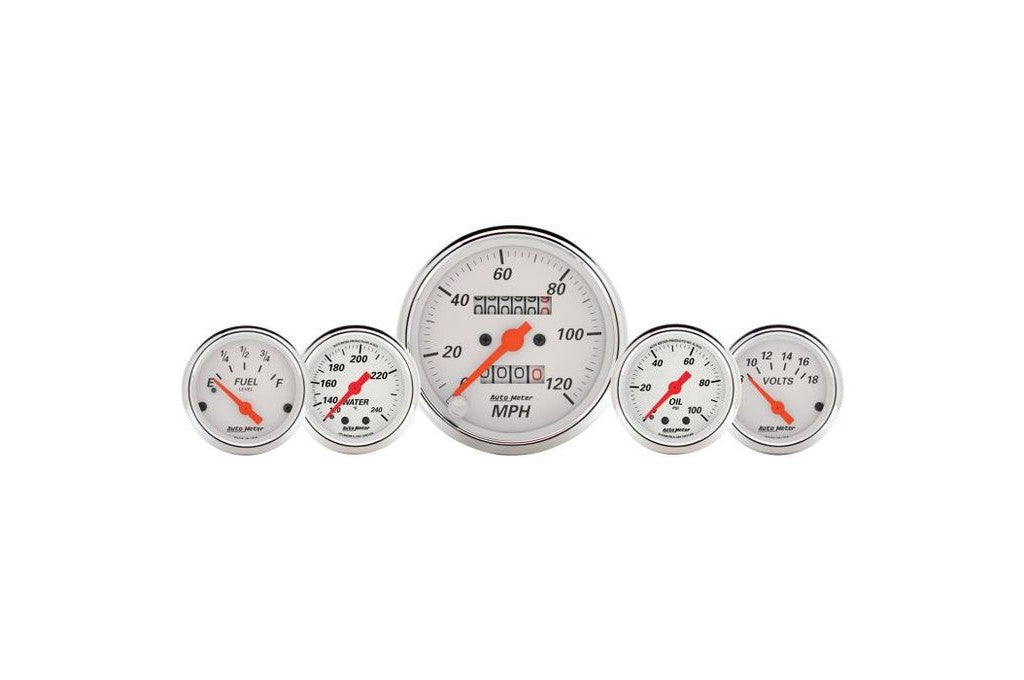

AutoMeter 5-piece gauge kit featuring a mechanical speedometer, water temperature, oil pressure, fuel level, and voltmeter with polished chrome bezel and incandescent lighting.
Features:
• Highly polished chrome bezel
• Traditional incandescent lighting illuminates around the perimeter of the dial
• Kit includes fuel level sender (240E/33F), oil pressure sender, water temperature sender, bulb and socket assemblies, red and green bulb covers, mounting hardware, and detailed instructions
• Speedometer features a traditional rolling drum odometer and a resetable tripmeter
• Speedometer accepts a 5/8" x 18 thread speedometer cable and is calibrated for 60 MPH at 1,000 cable RPM
• Includes Sending Unit: 3262
• Includes 1/8" NPT Male to 1/8" compression fitting, 1/8" NPT Female to 1/8" compression fitting, 1/8" NPT to 1/4" NPT bushing, 3/8" NPT and 1/2" NPT adapter fittings
• Includes 10 ft. nylon tubing - 6 ft. Capillary Tube
• Includes Red 3214 & Green 3215 bulb covers
• Brackets included
Specifications:
| Size | Kit 3-1/8" & 2-1/16" (Kit 79.4mm & 52.4mm) |
| Type | Kits |
| Range | 120 MPH/100 PSI/100-240 °F/8-18V/240ΩE-33ΩF |
| Lighting | Incandescent |
| Speedometer Hole Diameter | 3-1/8" |
| Speedometer Outside Diameter | 3-5/16" |
| Gauge Hole Diameter | 2-1/16" |
| Gauge Outside Diameter | 2-1/4" |
| Speedometer Cable Thread | 5/8" x 18 |
| Speedometer Calibration | 60 MPH at 1,000 cable RPM |
Part Number: 1311
UPC: 046074013119
 |
