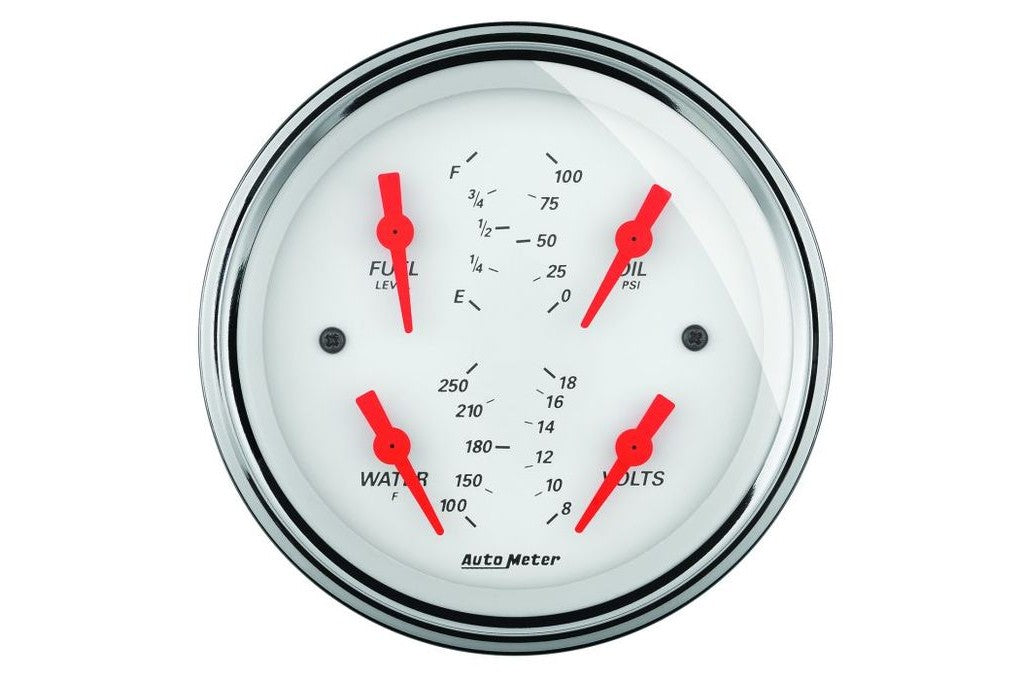

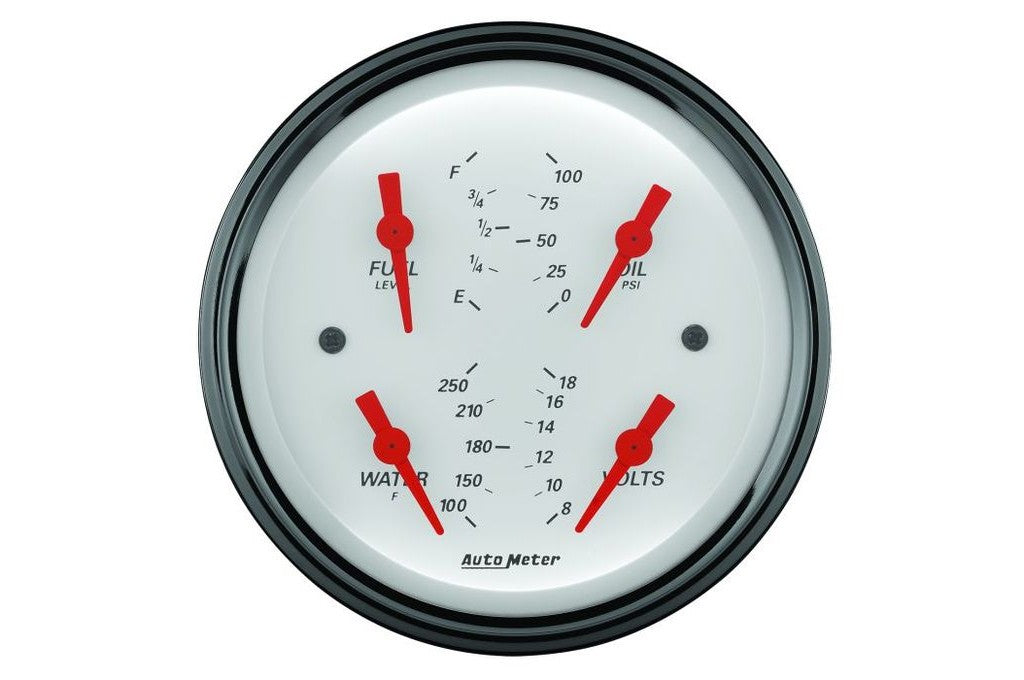

AutoMeter 3-3/8" Arctic White Quad Gauge, 100 PSI/100-250°F/8-18V/0-90Ω (1314)
AutoMeter quad gauge provides a 4-in-1 solution for limited dashboard space with individual air-core meter movements for oil pressure, water temperature, voltmeter, and fuel level monitoring. Includes senders and installation hardware.
Features:
• Highly polished chrome bezel
• Traditional incandescent lighting illuminates around the perimeter of the dial
• 4 in 1 gauge design saves valuable real estate on your dash while allowing you to monitor critical parameters
• 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
• AutoMeter's race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
• Gauge kit includes 1/8" NPT pressure sender, 1/4" NPT adapter, 1/8" NPT temperature sender, 3/8" and 1/2" NPT adapters, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
Specifications:
| Size | 3-3/8" (85.7mm) |
| Type | Air-Core |
| Range | 100 PSI / 100-250 °F / 8-18V / 0Ω-90Ω |
| Lighting | Incandescent |
| Fuel Level Resistance | 0 ohms empty to 90 ohms full |
| Compatible Fuel Senders | Mid 60's through mid 90's GM fuel level senders |
Part Number: 1314
UPC: 046074013140
 |
