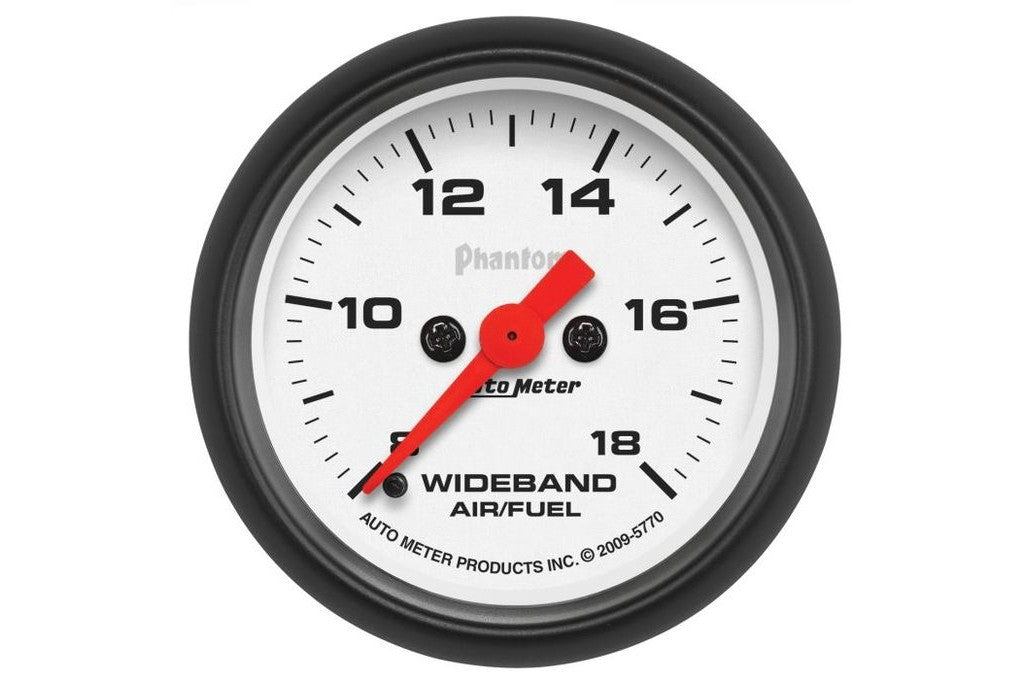

AutoMeter 52mm Phantom Wideband Air/Fuel Ratio Gauge, Analog, 8:1-18:1 AFR (5770)
Analog wideband air/fuel ratio gauge with digital stepper motor technology, 8:1-18:1 AFR range, incandescent lighting, and self-calibrating Bosch LSU4.2 sensor. Designed for gasoline-powered engines with 12 and 16 volt compatibility.
Features:
• Traditional incandescent lighting illuminates around the perimeter of the dial
• Custom tuned 0.1 AFR Resolution Bosch LSU4.2 Sensor included
• 8ft wiring harness with 304 stainless steel weld-in bung included
• AutoMeter's race proven digital stepper motor electric instruments provide unmatched accuracy
• Self calibration sequence during power up requires no free air calibration
• Display range of 8:1 to 18:1 AFR
• Suitable for gasoline powered engines
• 12 and 16 volt compatible
• Data logging output for one wire or two wire systems
• Includes bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions
Specifications:
| Size | 2-1/16" (52.4mm) |
| Type | Digital Stepper Motor |
| Range | 8:1-18:1 AFR |
| Lighting | Incandescent |
| AFR Resolution | 0.1 |
| Sensor | Bosch LSU4.2 |
| Wiring Harness Length | 8 ft |
| Voltage Compatibility | 12 and 16 volt |
| O2 Sensor Output | 0-5v |
Part Number: 5770
UPC: 046074057700
 |
