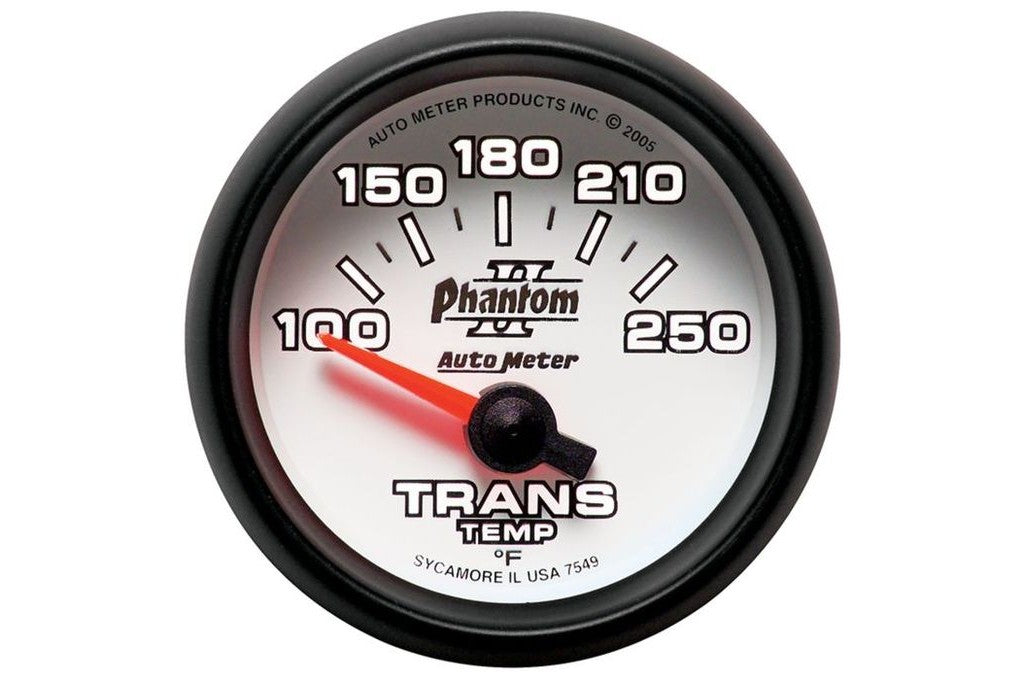

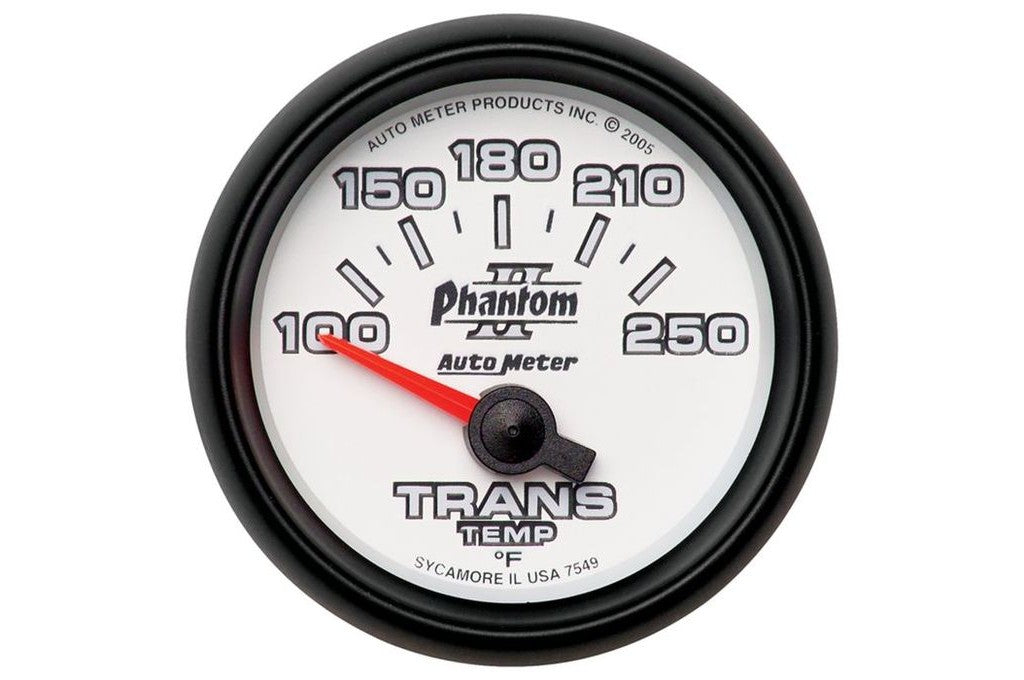

AutoMeter 52mm Phantom II Transmission Temperature Gauge, 100-250°F, Air-Core (7549)
Air-core electric transmission temperature gauge with 100-250°F range, LED lighting, and quick accurate readings for automatic transmissions.
Features:
• Modern white LED through-the-dial lighting provides clear visibility during nighttime use
• 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
• Gauge kit includes 1/8" NPT temperature sender, 3/8" and 1/2" NPT adapters, mounting hardware, and detailed instructions for installation
• AutoMeter's race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
• Single wire 1/8" NPT temperature sender included
• Can be installed in transmission, transmission pan, or with optional transmission cooler line manifold
Specifications:
| Size | 2-1/16" (52.4mm) |
| Type | Air-Core |
| Range | 100-250 °F |
| Lighting | LED |
| Voltage | 12 and 16 volt compatible |
| NPT Sender | 1/8" |
| Included Adapters | 3/8" NPT and 1/2" NPT |
Part Number: 7549
UPC: 046074075490
 |
