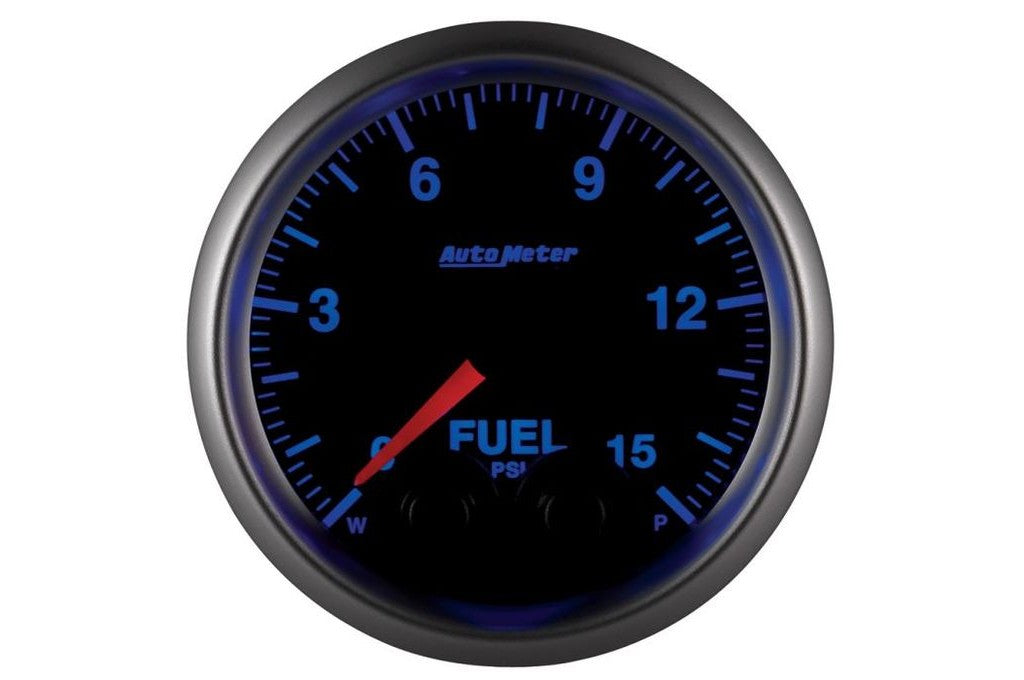

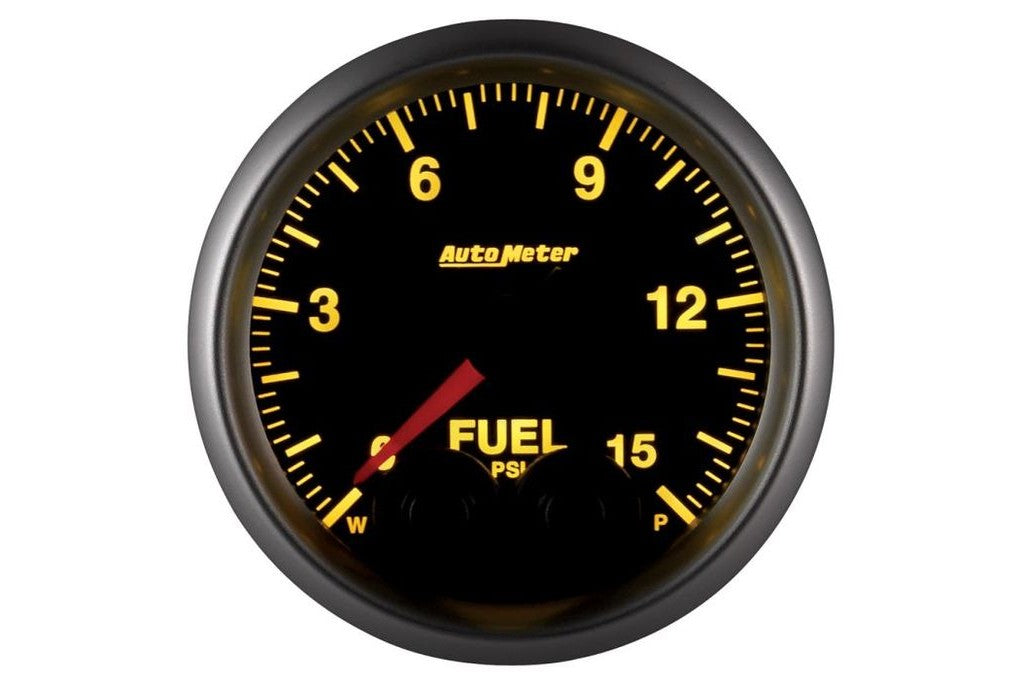

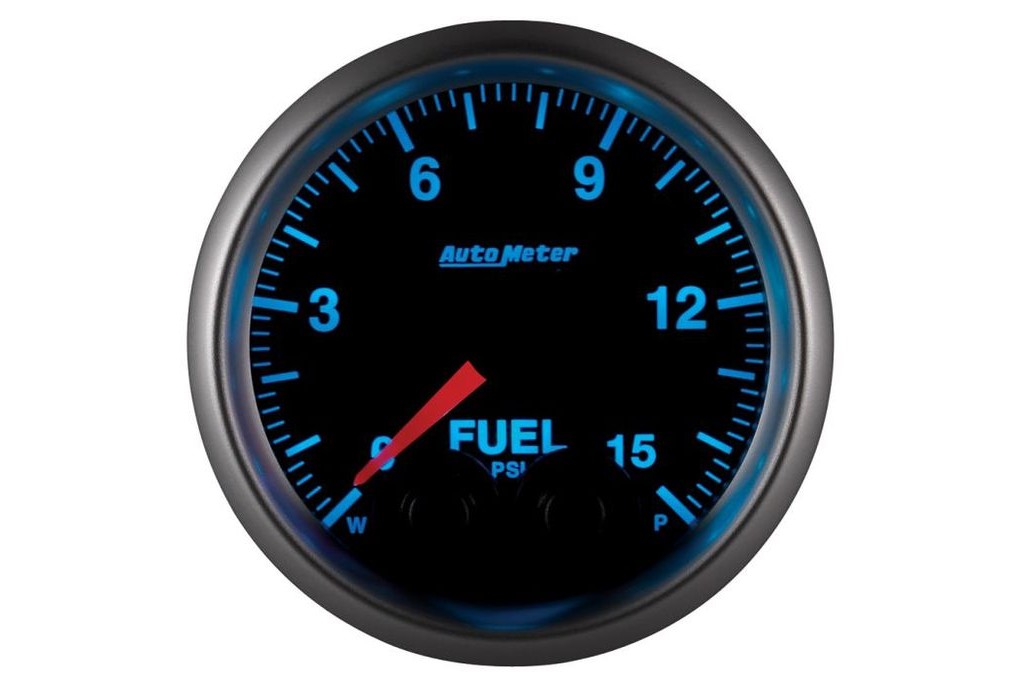

AutoMeter 52mm Elite Fuel Pressure Gauge, 0-15 PSI, Stepper Motor (5667)
AutoMeter's Digital Stepper Motor Fuel Pressure Gauge precisely measures fuel pressure with advanced accuracy for fuel injected or carbureted applications. Features 1/8" NPT solid state pressure transducer with vibration and heat resistance.
Features:
• 7 user selectable colors (blue, white, red, green, cyan, violet, and yellow)
• Built-in Pro-Control circuits with custom programmable activation & deactivation points for key functions
• Set custom alert High and Low points with full dial warning notification
• One-touch Peak Recall functionality for data acquisition
• Data logger 0-5V output provides ECU and data systems with vital information
• Includes 1/8" NPT stainless steel pressure transducer, wiring harness, mounting hardware
• 12 and 16 volt compatible
• Race proven digital stepper motor electric instruments with unmatched accuracy
• Self calibration sequence during power up for increased accuracy
Specifications:
| Size | 2-1/16" (52.4mm) |
| Type | Digital Stepper Motor |
| Range | 0-15 PSI |
| Lighting | LED |
| Pressure Transducer | 1/8" NPT solid state |
| Voltage Compatibility | 12 and 16 volt |
| Output | 0.5-4.5V analog output |
| Included Sending Unit | 2245 |
| Included Wire Harness | 5275 |
| Included Bracket | 2230 |
Part Number: 5667
UPC: 046074056673
 |
