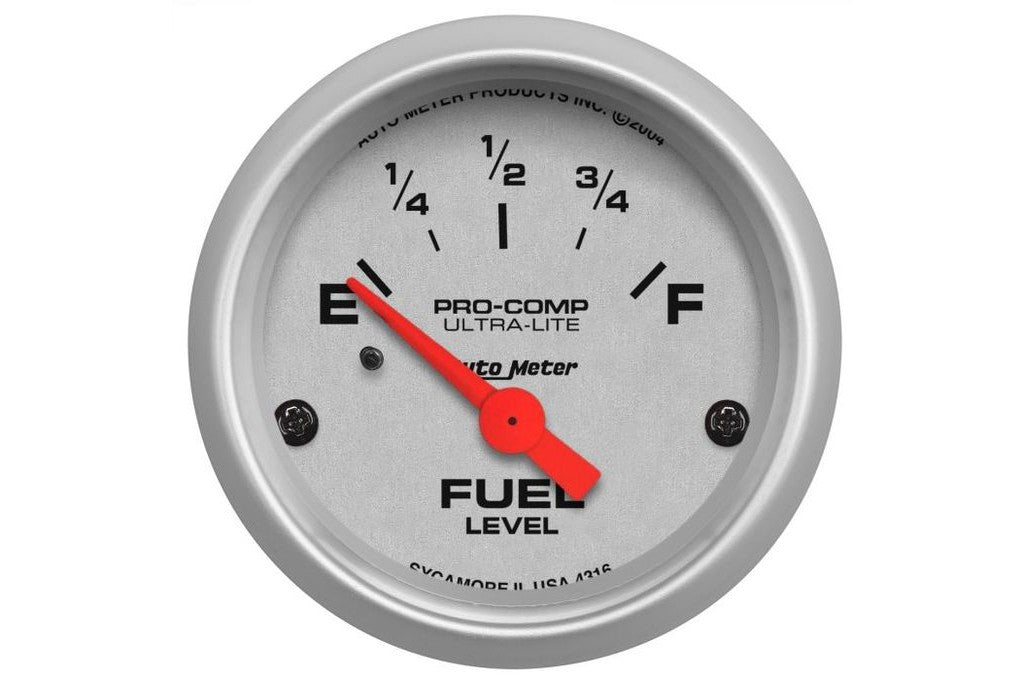

AutoMeter 52mm Ultra Lite Fuel Level Gauge, 240-33 Ω, Air-Core, SSE (4316)
2-1/16" fuel level gauge with air-core meter movement, 240 ohm empty / 33 ohm full range, incandescent lighting, and SSE ultra-lite design for accurate fuel tank readings.
Features:
• Traditional incandescent lighting illuminates around the perimeter of the dial
• Works with 240E/33F ohm senders, including AutoMeter 3262
• 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
• Gauge kit includes bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
• AutoMeter's race proven air-core electric instruments provide quick and accurate readings
• Air-core meter movement receives extra dampening to help combat the effects of fuel slosh in non-baffled tanks
Specifications:
| Size | 2-1/16" (52.4mm) |
| Type | Air-Core |
| Range | 240 Ω Empty / 33 Ω Full |
| Lighting | Incandescent |
| Voltage Compatibility | 12 and 16 volt |
Part Number: 4316
UPC: 046074043161
![]() |
