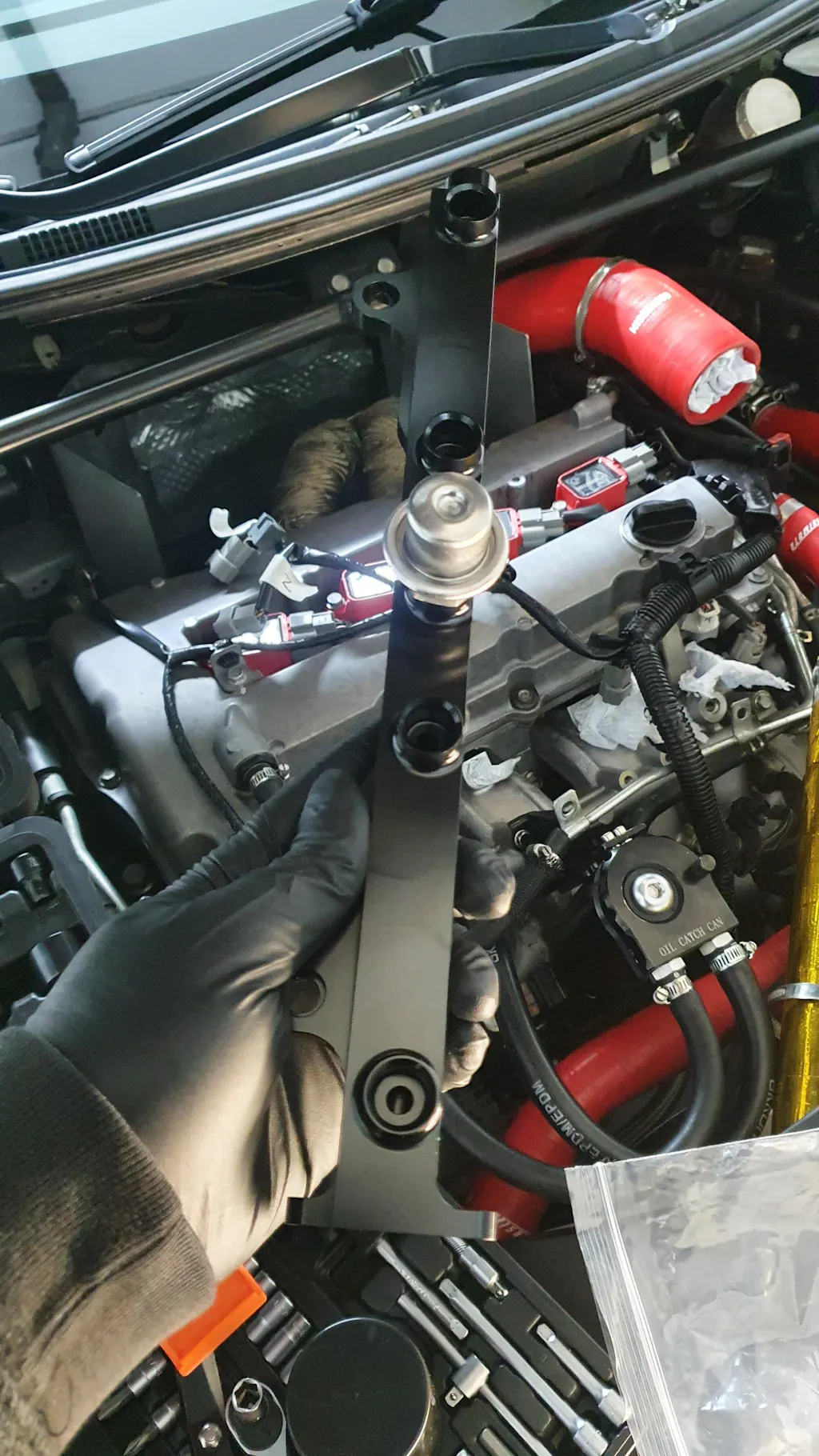

AMS Evo X Fuel Rail Kit

The AMS Performance Evo X Fuel Rail provides increased fuel flow which is necessary at higher boost levels. This CNC aluminum rail comes anodized in red or black featuring the AMS logo. With a -6AN (7.5 mm) diameter inlet and outlet it dwarfs the stock rail by over 25% in flow area. This is true bolt on part that will install with your factory fuel lines, fuel pressure regulator and will work with all factory style fuel injectors.

Also included is a -6AN braided fuel feed line that increases fuel flow by 25%. This fuel line line also makes your car safer by eliminating the hard factory fuel feed line that can crack over time from engine vibration.

Vehicle Fitment:
2008-2015 Evolution X
• Installation Instructions (PDF)

Shipping Times:
Ships in 1-14 days on average.

More Info:
The integrated fuel damper will ensure even better fuel delivery under low load and low rpm driving. Also recommended for install is the AMS Evo X Fuel Pressure Regulator Kit.

Features:
• Precision CNC machined from 6061 billet aluminum
• 6AN (7.5mm) fuel inlet increases fuel flow by 25%
• Thick flanges and stanchion for durability and reliability
• Direct bolt-on, no modifications needed
• AMS Logo CNC'd into the face of the rail
• Retains factory fuel pressure regulator
• Works with all factory style fuel injectors

Specs:
• CNC machined 6061 billet aluminum
• 7.5mm inlet and 11mm return port
• .25 inch thick flanges
• 6AN black braided fuel feed line with black anodized fitting

Includes:
• Fuel Rail
• Fuel Feed line with appropriate fittings

Anodized Parts:
Do not use degreasers on anodized parts. If washing parts is needed we recommend using soap and water. Harsh chemicals can ruin the anodized finish.
