Moroso Baffled Oil Pan for Evo X (20969)
The Moroso Road Race Baffled Aluminum Oil Pan for the Evo X features a race-proven, three door assembly and removable anti-slosh baffle that keeps oil contained in oil pump pickup area during road racing and drag racing and holds 1.5 more quarts than stock.
Vehicle Fitment:
2008-2015 Mitsubishi Evolution X
Features:
• Fits with factory air conditioning
• 3/8" thick billet aluminum oil pan rail
• Fabricated aluminum sump
• Race proven, three door assembly

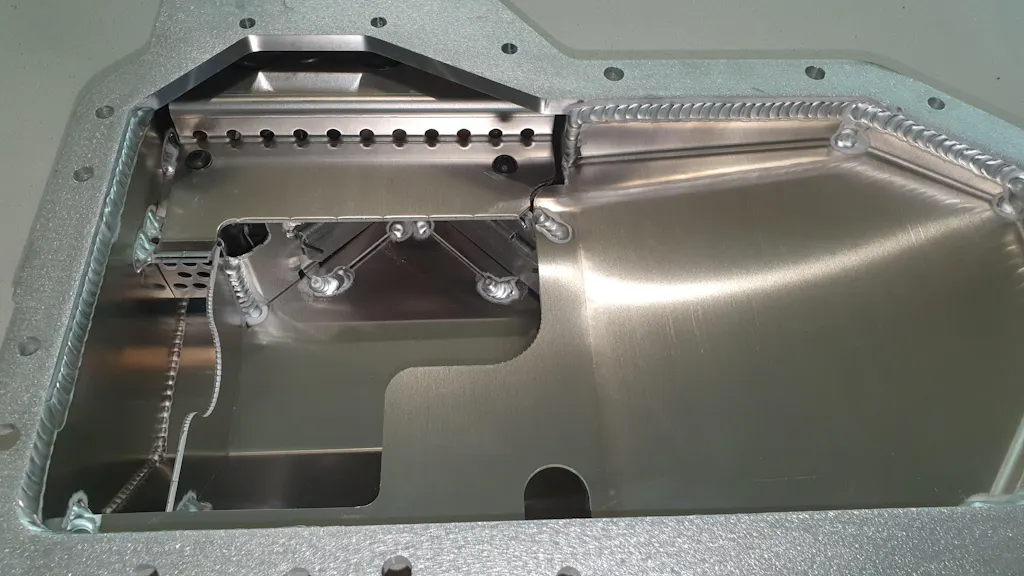

• Removable anti-slosh baffle that keeps oil contained in oil pump pickup area during road racing and drag racing
• Holds 1.5 more quarts than stock
• 1/2" NPT fitting for oil temperature sensor and o-ring style drain plug
• Includes mounting kit with hex drive steel studs and serrated-faced flange nuts
• Reuses stock air conditioning hardware and bedplate
• Use stock oil pump & pickup
Install Instructions:
• View PDF
Vehicle Fitment:
2008-2015 Mitsubishi Evolution X
Features:
• Fits with factory air conditioning
• 3/8" thick billet aluminum oil pan rail
• Fabricated aluminum sump
• Race proven, three door assembly
• Removable anti-slosh baffle that keeps oil contained in oil pump pickup area during road racing and drag racing
• Holds 1.5 more quarts than stock
• 1/2" NPT fitting for oil temperature sensor and o-ring style drain plug
• Includes mounting kit with hex drive steel studs and serrated-faced flange nuts
• Reuses stock air conditioning hardware and bedplate
• Use stock oil pump & pickup
Install Instructions:
• View PDF
See more Moroso Products
Customer Reviews
Based on 3 reviews
67%
(2)
33%
(1)
0%
(0)
0%
(0)
0%
(0)
m
easy to assemble, no problems encountered. My Lancer Evo X RS doesn't have an AC compressor.
J
Very nice billet pan and well-built baffle slots, stock fitment however is a very big stretch in marketing. Most bolt holes into the block lined up with the supplied studs. The biggest problem was that the pan does not fit the lower factory sump bracket to ac compressor braket whatsoever, had to Dremel away most of the bracket and chamfer the edges to fit the thing then tap new threads into the bracket to tighten the ac compressor bracket to. It's a great pan, but it could use some finishing touches to make it fit easier.
E
Well arrived to our department, we will ship it to Europe so I hope it will be all right :P
 |
