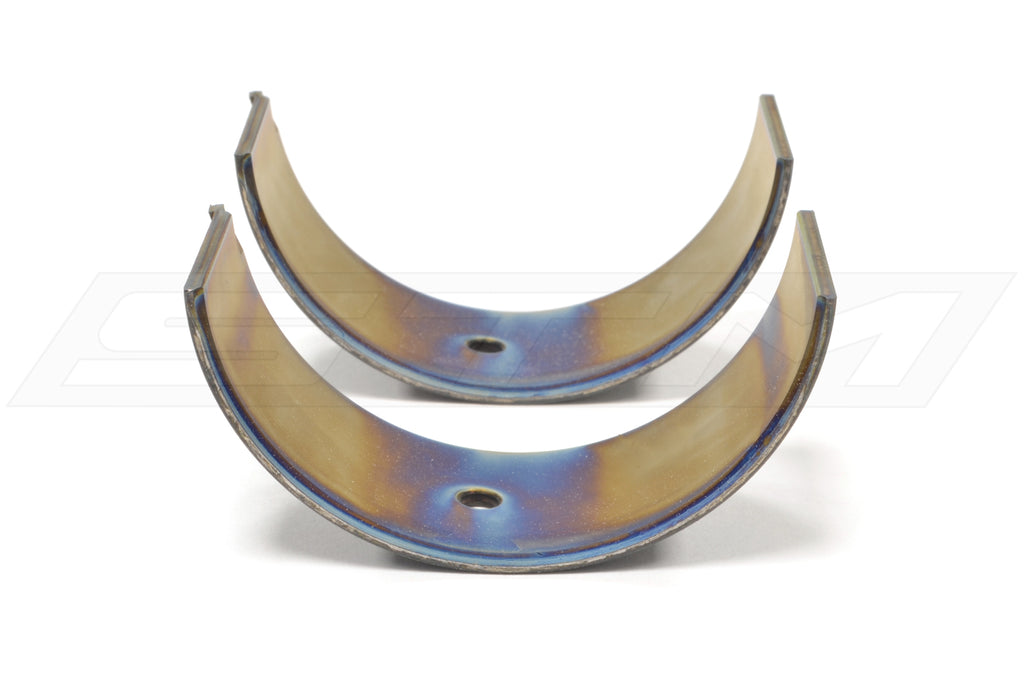

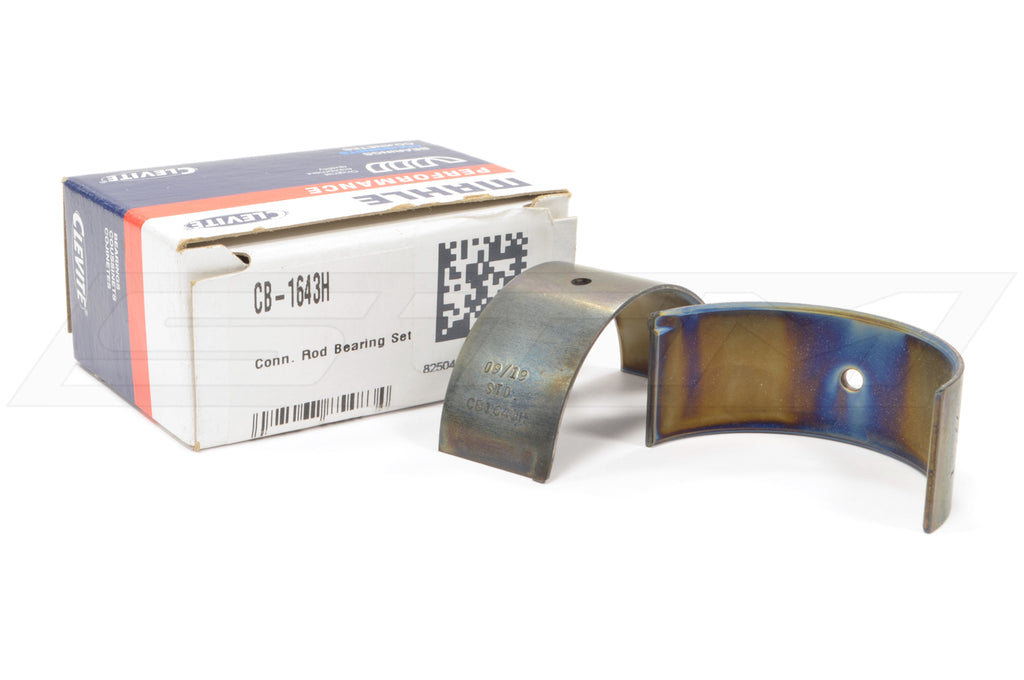

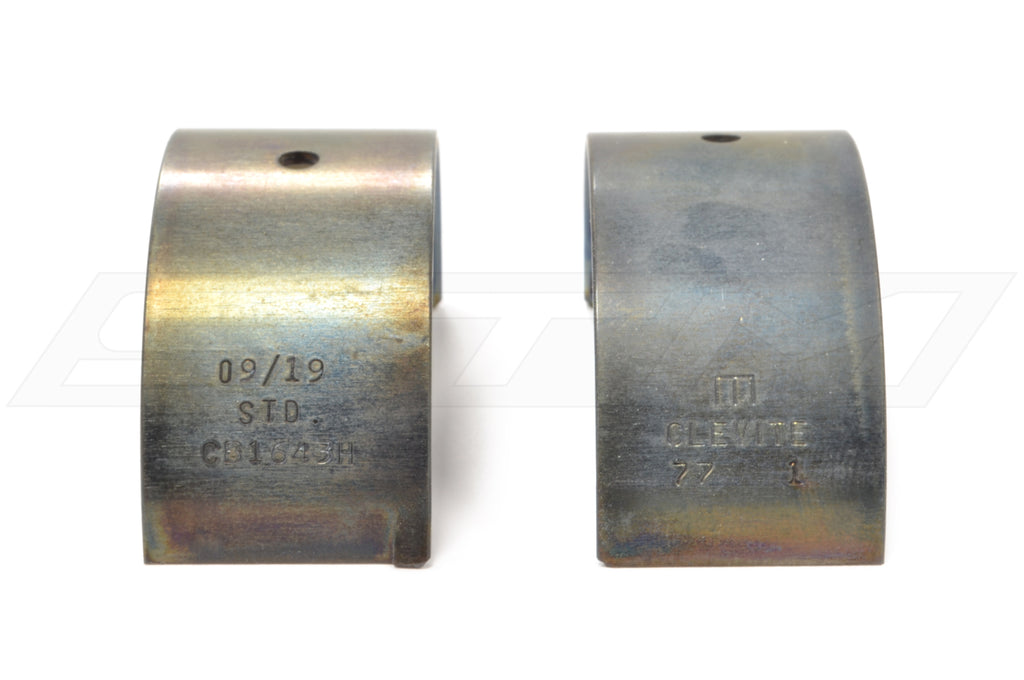

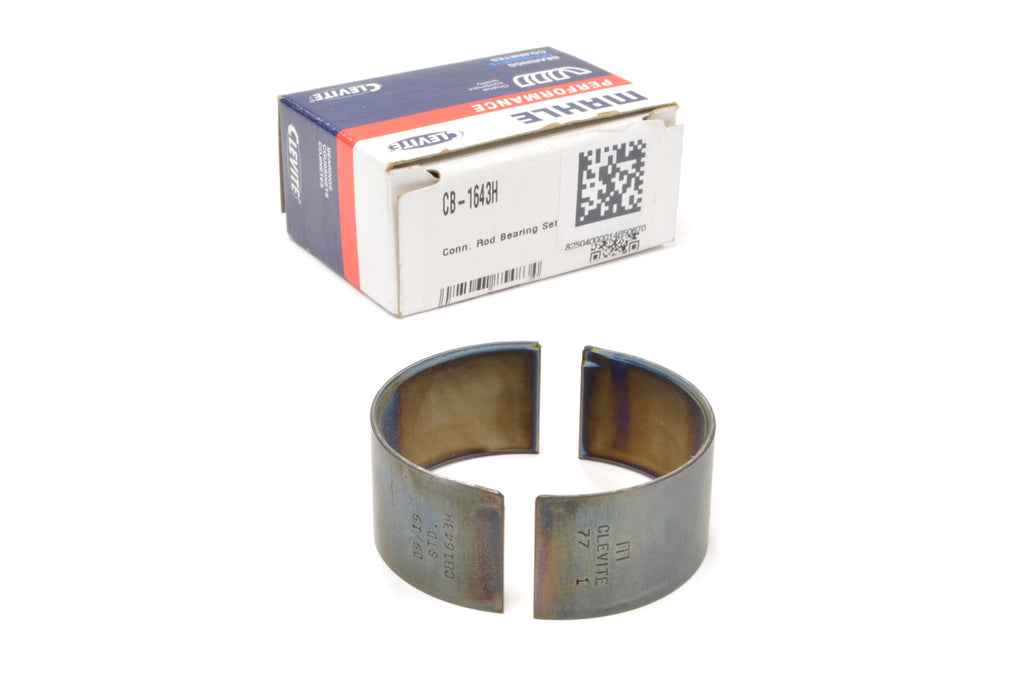

Clevite Tri-Metal Rod Bearings for 7-Bolt 4G63 (CB-1643H)

Clevite H-Series performance tri-metal (TM-77) standard sized rod bearings for the 4G63 Evo 4/5/6/7/8/9 and 7-bolt 1G/2G DSM. These bearings are sold as needed per rod. If you need the full set of 4, please adjust your quantity to 4.

Vehicle Fitment:
7-Bolt 4G63
1996-1997 Evolution IV V VI VII VIII IX
1992.5-1999 Eclipse GST/GSX
1992.5-1998 Talon TSi
1992.5-1994 Laser RS

Purchase Includes:
(2) Bearing Halves for 1 Rod

More Info:
Clevite H-Series performance bearings have a medium level of eccentricity, high crush and a hardened steel back and thin, overlay. These bearings are made without flash plating for better seating. Use H-Series bearings with crankshafts that have oversize fillets and where engines run in the medium to high RPM range.

Standard Shaft Diameter (min.): 1.7710
Standard Shaft Diameter (max.): 1.7717
Vertical Oil Clearance (min.): 0.0004
Vertical Oil Clearance (max.): 0.0025
Max. Wall: 0.05888
Max. Length: 0.832
Bearing O.D. or Housing Bore (min.): 1.8897
Bearing O.D. or Housing Bore (max.): 1.8905
