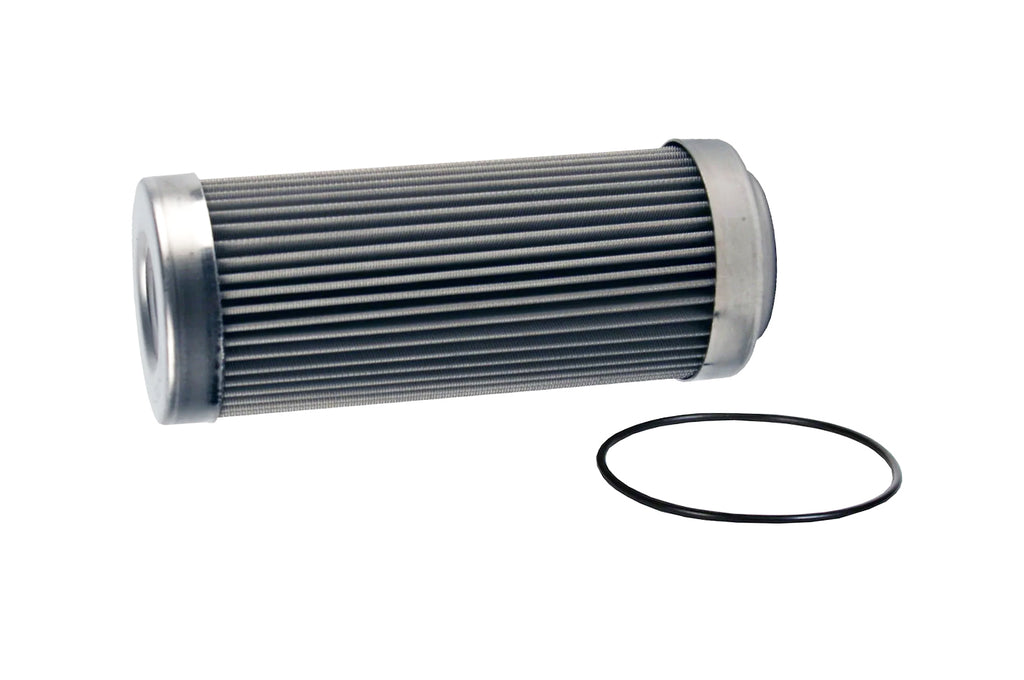

Aeromotive 40 Micron Stainless Element for ORB-12AN Filter (12642)

Replacement 40 micron stainless steel fuel filter internal element for Aeromotive ORB-12AN Pro-Series fuel filters.

Vehicle Fitment:
• Direct Replacement Aeromotive 12342 and 12343.
• Suitable for use on the pressure side of a fuel pump only.
• Compatible with gasoline, diesel, ethanol and methanol based fuels.
• Fits all 2.5" x 7" long ORB-12 Aeromotive filter housings.

Purchase Includes:
(1) Element with O-Ring

More from Aeromotive:
This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

• Recommended for applications burning pump gas, racing gas, diesel fuel, jet fuel, av-gas, etc.
• Approved for use in alcohol fuels including ethanol and methanol.
• Over 90-sq. inches of element surface area supports high flow while providing good service life.
• Cleanable 40-micron Stainless Steel mesh construction.
• Flow capacity of up to 1,200 plus GPH (20.00 GPM) with less than 1-PSI pressure drop.
• Supports up to 11,000 plus Flywheel HP, Forced Induction, on gasoline.
• Supports up to 8,000 Flywheel HP, Forced Induction on Ethanol.
• Supports up to 3,800 Flywheel HP, Forced Induction on Methanol
• Ideal as a post-pump filter with gasoline, ethanol and Methanol burning engines, carb and EFI,  with medium to large Aeromotive electric fuel pumps from the A2000 to the Pro-Series fuel pumps.
• Popular as a post pump filter with 6 and 12 Series (belt and hex driven) mechanical fuel pumps and Aeromotive Spur Gear Pumps up to 32 GPM.

Part Number: 12642
UPC: 00684980005585
