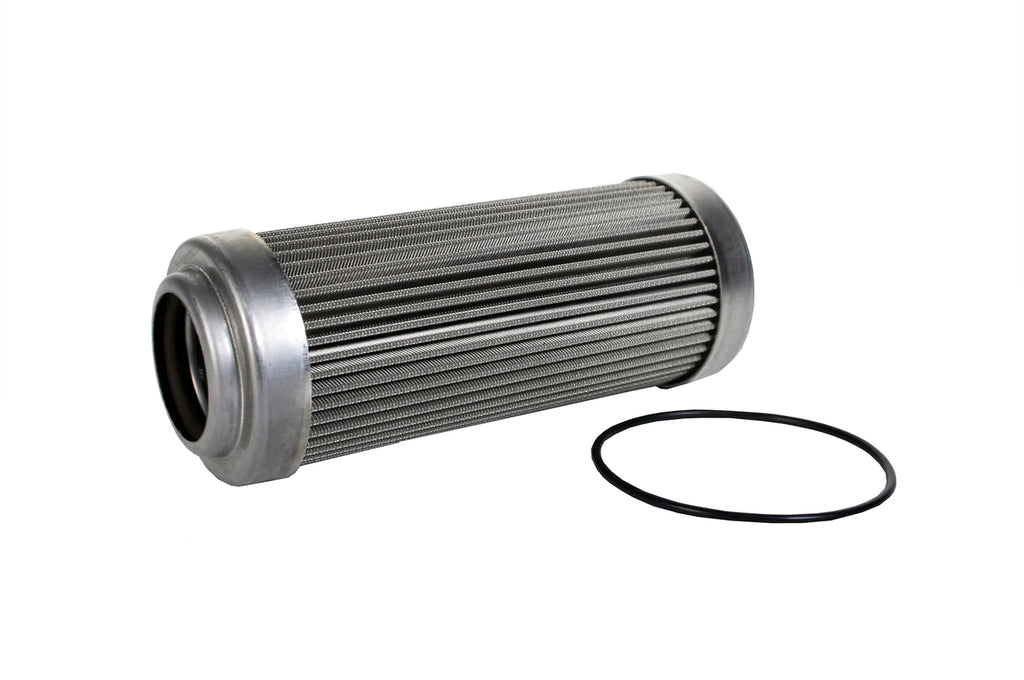

Aeromotive 100 Micron Stainless Element for ORB-12AN Filter (12602)

Replacement 100 micron stainless steel mesh fuel filter internal element for Aeromotive ORB-12AN Pro-Series fuel filters.

Vehicle Fitment:
• Direct Replacement Aeromotive 12302, 12352, 12309 and 12332.
• Suitable as a pre-filter for fuel pumps up to 6 GPM.
• May be used as a post filter with larger, 12-Series and Spur Gear Mechanical Fuel Pumps up to 32-GPM
• Compatible with gasoline, diesel, ethanol and methanol fuels.
• Fits all 2.5" x 7" long ORB-12 Aeromotive filter housings.

Purchase Includes:
(1) Element with O-Ring

More from Aeromotive:
This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

• Recommended for applications burning pump gas, racing gas, diesel fuel, jet fuel, av-gas, etc.
• Approved for use in alcohol fuels including ethanol and methanol.
• Over 90-sq. inches of element surface area supports extreme flow while providing good service life.
• Cleanable 100-micron Stainless Steel mesh construction.
• Flow capacity of up to 1,600 GPH (26.6 GPM) with less than 1-PSI pressure drop.
• Supports up to 14,700 plus Flywheel HP, Forced Induction, on gasoline.
• Supports up to 10,600 Flywheel HP, Forced Induction on Ethanol.
• Supports up to 5,000 Flywheel HP, Forced Induction on Methanol

• Ideal as a pre-pump filter with gasoline, ethanol and Methanol burning engines with medium to large Aeromotive fuel pumps from the Eliminator pump through the 6 Series Mechanical pump.
• Popular as a post pump filter with 12 Series (belt and hex driven) mechanical fuel pumps and Aeromotive Spur Gear Pumps up to 32 GPM.


Part Number: 12602
UPC: 00684980000269
