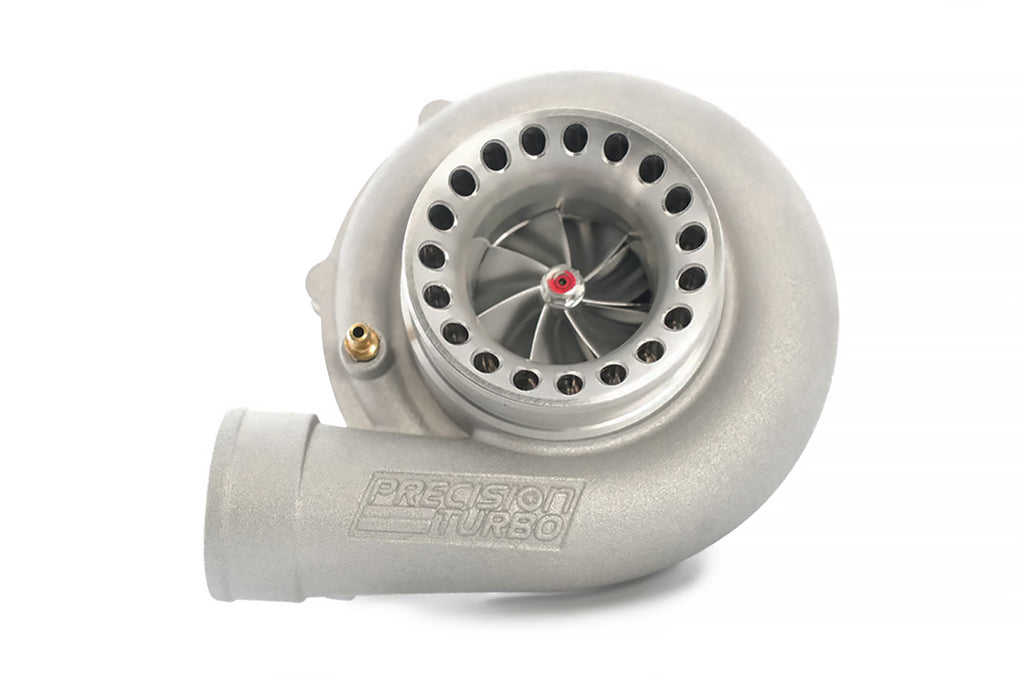

PTE Gen2 PT6066 Ball Bearing Turbo (760 HP)

PTE Gen 2 PT6066 ball bearing turbo can support builds up to 760 HP. Available with the SP compressor cover and various options for the turbine housing. Photos are for reference as each turbo is built to your spec.

Vehicle Fitment:
Universal Application

Purchase Includes:
(1) Turbo

Gen 2 PTE 6066 Features:
• Ball Bearing
• Air Cooled
• Supports up to 760 HP
• Gen 2 7-Blade CEA 2618 Forged Compressor Wheel
• 60.4mm Compressor Wheel Inducer
• 82mm Compressor Wheel Exducer
• 74mm Turbine Wheel Inducer
• 66mm Turbine Wheel Exducer
• PTE "Street and Race" Turbo

Oil Feed Info:
• 1/8" NPT
• Recommended Feed Fitting: (PFT047-3039)

Oil Drain Info:
• Recommended Drain Flange: (PTP074-2108)
• Recommended Drain Flange Gasket: (PTP075-5012)
• Drain Bolt Size: M8-1.25

Compressor Cover:
• SP Cover (aka ported S cover)
• Inlet: 4" Coupler
• Outlet: 2.5" Coupler

Shipping Times:
Usually ships in 1-2 weeks.
PTE Turbos are built to your specifications.

Install Flanges, Clamps and Gaskets:
STM carries all the parts you'll need to install your turbo. Check out the links below to view flange diagrams and find all the matching v-band clamps, weld flanges and gaskets you'll need for install as well as useful tips for installing your PTE turbo. As always, if you need help, just give us a shout!
• PTE Turbine Housing Inlets
• PTE Turbine Housing Outlets
• PTE Compressor Covers
• PTE Turbo Install Recommendations
