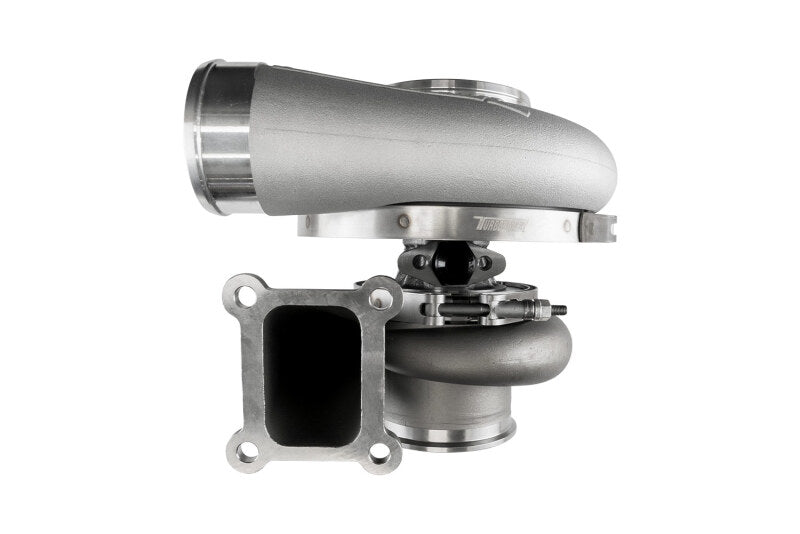

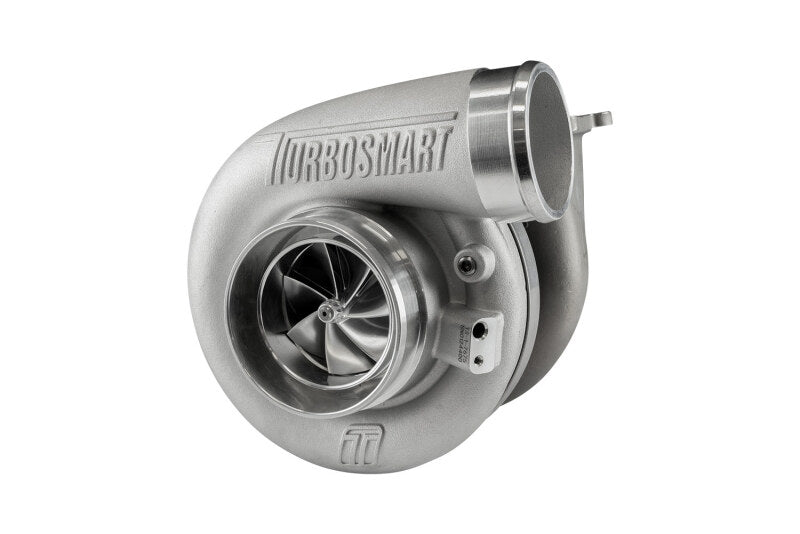

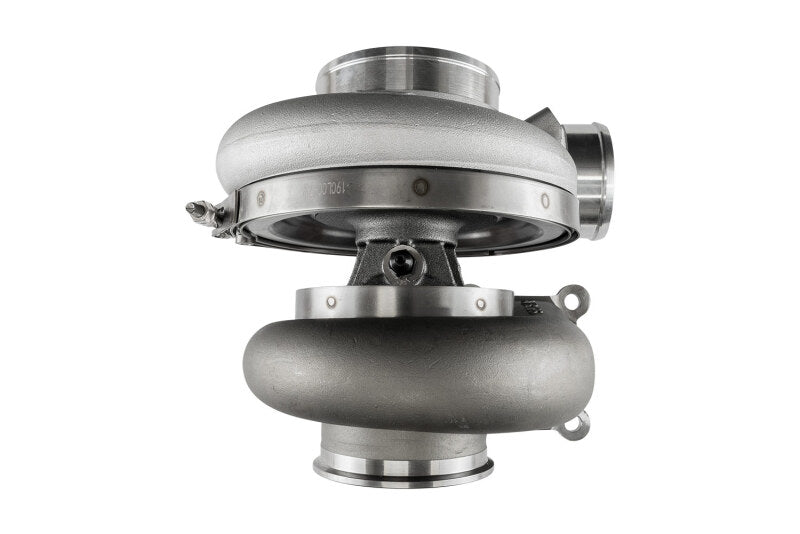

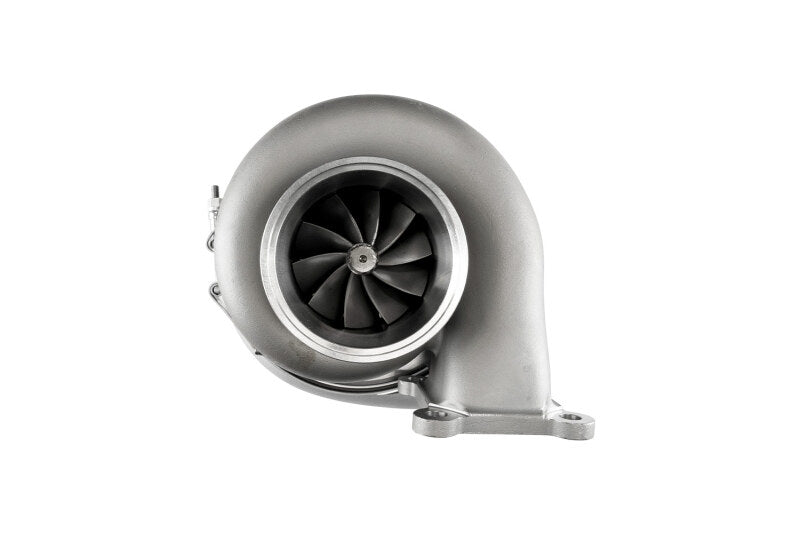

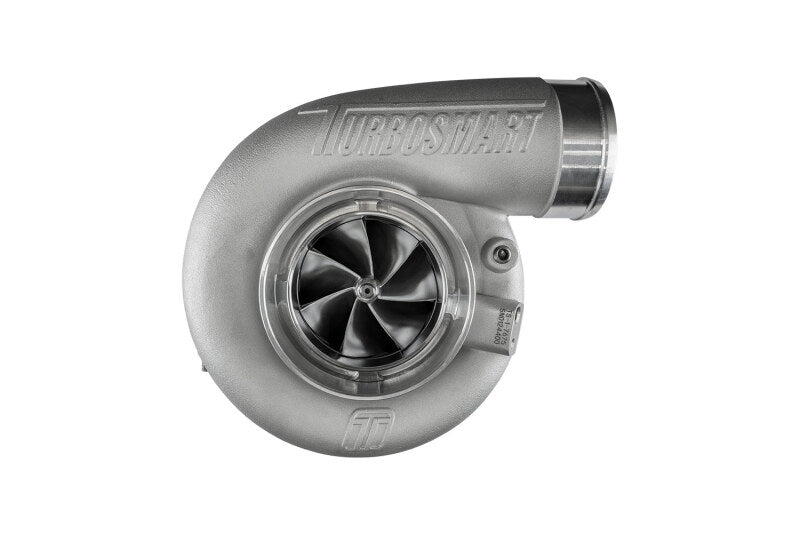

Turbosmart 7675 T4 1.24AR External Wastegate TS-1 Turbocharger (TS-1-7675C-T4124E)

The Turbosmart TS-1 7675 T4 1.24AR externally wastegated turbocharger offers high-performance enhancement for your vehicle's turbo system. Designed with precision engineering, this turbocharger features a T4 flange and a 1.24A/R ratio, delivering increased airflow and boost capabilities for demanding applications. Its external wastegate allows for precise boost control and improved exhaust flow management, making it suitable for high horsepower builds and racing environments. Constructed with durable materials, the TS-1 ensures longevity and reliable operation under strenuous conditions. Whether upgrading an existing setup or building a custom turbo system, this turbo provides the performance and efficiency necessary for serious enthusiasts.

Features:

• Unparalleled transient response
• Aggressive aerodynamics with 7+7 2618 Aluminum splitter wheels
• Lightweight 310s stainless steel investment cast turbine housings
• Lightweight, Aluminum compressor covers
• CFD driven designed housings for optimal A/Rs and flow
• 713C Inconel turbine wheel for extreme EGT’s
• VSR speed balanced
• Proprietary dual ceramic bearing system
• Integrated Iron backplate on center housing


Specifications :
Compressor Inlet: 4″ / 101.6mm
Compressor Inducer: 76mm
Turbine Inlet: T4
Turbine Exducer: 75mm
Turbine AR: 1.24
Turbine Outlet: V-Band (3.50″)
Weight: 9.63kg / 20.23lbs
Horsepower Rating: 1100-1290HP
